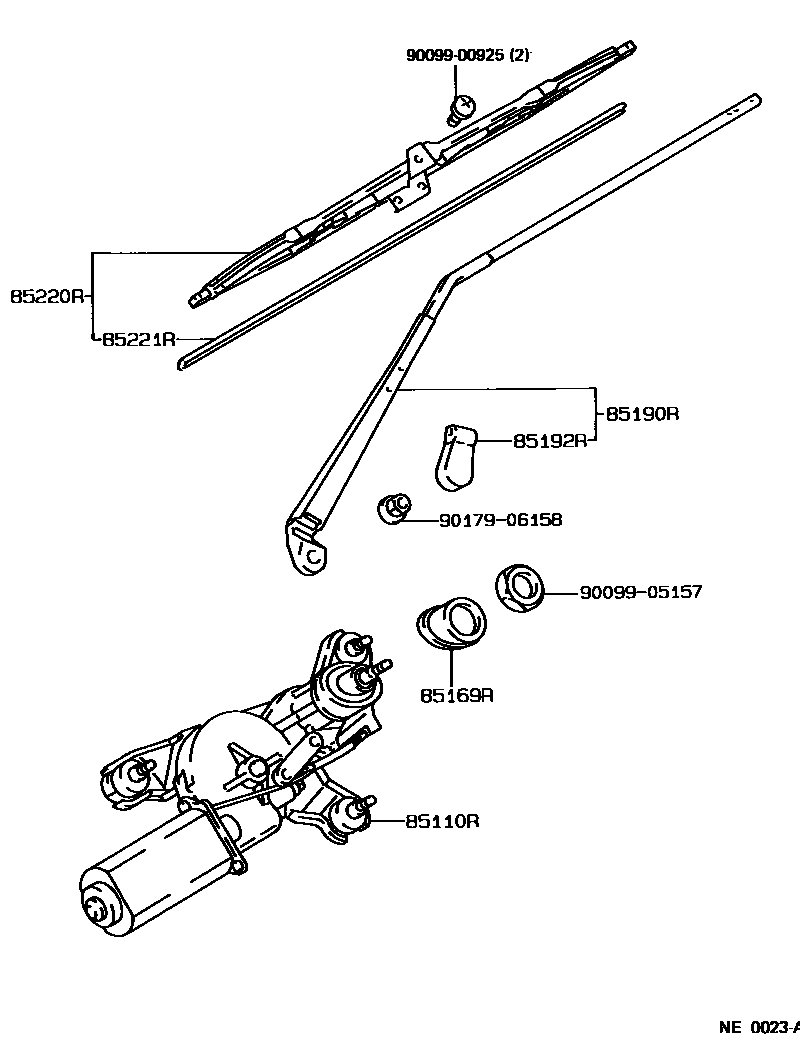

REAR WIPER

0001 1 0002 1 0003 1

85110RMOTOR ASSY, REAR WIPER

main85110-12470iAE95..WG198802-199009

main85110-12690iAE92,CE90,EE90..LB198705-199205

main85110-13040iAE92,CE90,EE90..WG198708-198710

main85110-13050iAE92,CE90,EE90..WG198710-199205

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-12690iAE92,CE90,EE90..LB198705-199205

main85179-16150iAE92,CE90,EE90..WG198708-199205

main90210-28002iAE95..WG198802-199009

85190RARM ASSY, REAR WIPER

main85190-12850iAE92,CE90,EE90..LB..(GL,GTI,XL)198705-199003

sub85190-12851

main85190-12851iAE92,CE90,EE90..LB198911-199205

main85190-13060iAE92,CE90,EE90..WG198708-198710

main85190-13070iAE92,CE90,EE90..WG198710-198907

sub85190-13071

main85190-13071iAE92,CE90,EE90..WG198907-199205

main85190-1A060iAE95..WG198802-198911

sub85190-1A061

main85190-1A061iAE95..WG198911-199009

85192RCOVER, REAR WIPER ARM

main85192-12850iAE92,CE90,EE90..LB198705-199205

main85192-13060iAE9#,CE90,EE90..WG198708-199205

85220RBLADE ASSY, REAR WIPER

main85220-16440iAE92,CE90,EE90..LB..(GL,GTI,XL)198705-199003

sub85220-16441

main85220-16441iAE92,CE90,EE90..LB198911-199205

main85220-22530iAE95..WG198802-199003

sub85220-22531

main85220-22531iAE95..WG198911-199009

sub85242-23010

main85220-22590iAE92,CE90,EE90..WG198708-198710

main85220-22620iAE92,CE90,EE90..WG198710-198907

sub85220-22621

main85220-22621iAE92,CE90,EE90..WG198907-199205

85221RBLADE, REAR WIPER

main85221-13010iAE92,CE90,EE90..WG198710-199205

sub85214-12H90

main85221-16070iAE95..WG198708-199009

sub85214-12H90

main85221-16080iAE92,CE90,EE90..LB198705-198911

main85221-91C01iAE92,CE90,EE90..LB198911-199205

sub85214-12H90

9009900925

main90099-00925

9009905157

main90099-05157

9017906158

main90179-06158

9 parts on this diagram · 3 diagrams in section
