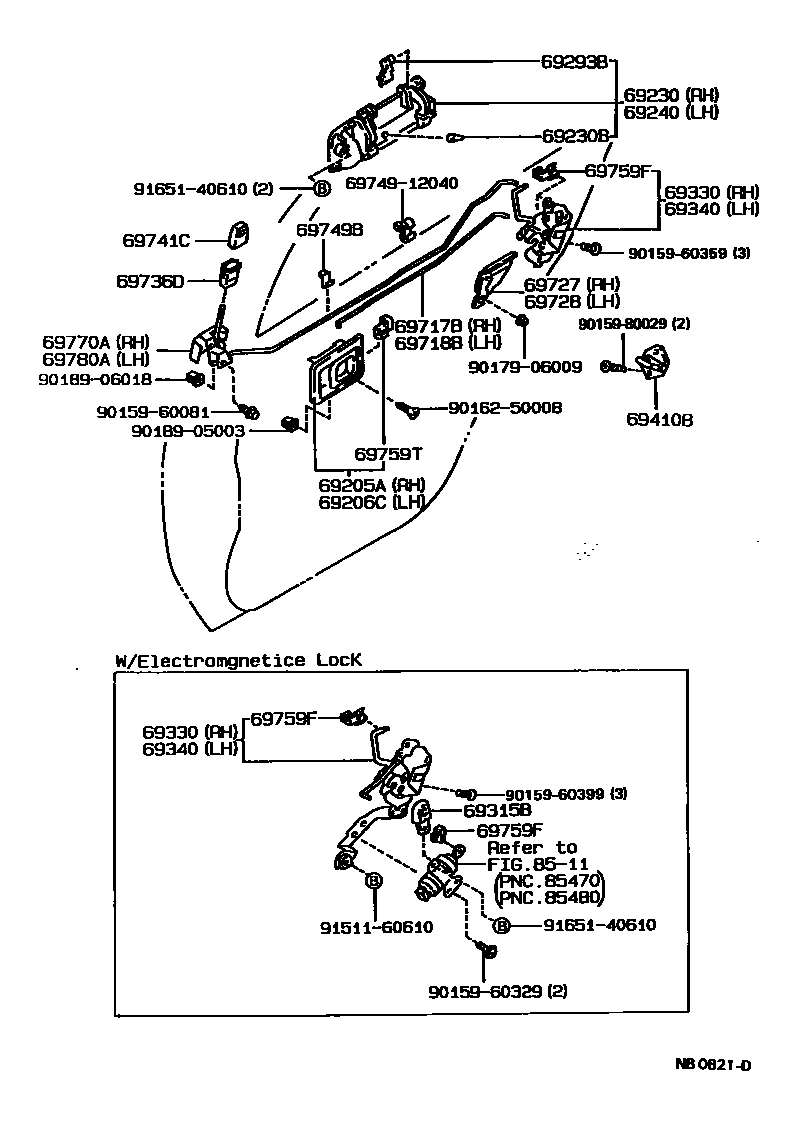

REAR DOOR LOCK & HANDLE

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-10040-05iCE90,EE90..STD198705-198908

DARK BEIGE,TRIM4#

sub69205-10040

sub69205-10030

main69205-10040-13iCE90,EE90..STD198705-199205

GRAY,TRIM1#

sub69205-10040

sub69205-10030

main69205-10040-34iCE90,EE90..STD198908-199205

BLUE,TRIM8#

sub69205-10040

sub69205-10030

main69206-12120-02iAE95,CE90,EE90..RHD..SED198705-199205

MAROON,TRIM3#

sub69206-12120

main69206-12120-03iAE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199205

SHADOW GRAY,TRIM1#

sub69206-12120

main69206-12120-04iAE95..RHD..WG;AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI)198705-199205

BLUE,TRIM8#

sub69206-12120

main69206-12120-05iAE9#,CE90,EE90..GL,GLI,XL,XLI198705-198908

DARK BEIGE,TRIM4#

sub69206-12120

main69206-12120-06iAE95..LHD;AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198908-199205

BROWN,TRIM4#

sub69206-12120

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69205-12120-02iAE9#,CE90,EE90..RHD..(LB,SED)..(CBR,DSL)198705-199205

MAROON,TRIM3#

sub69205-12120

main69205-12120-03iAE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199205

SHADOW GRAY,TRIM1#

sub69205-12120

main69205-12120-04iAE95..RHD..WG;AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI)198705-199205

BLUE,TRIM8#

sub69205-12120

main69205-12120-05iAE9#,CE90,EE90..GL,GLI,XL,XLI198705-198908

DARK BEIGE,TRIM4#

sub69205-12120

main69205-12120-06iAE95..LHD;AE92,CE90,EE90..LHD..(LB,SED)..(GL,GLI,XL,XLI)198908-199205

BROWN,TRIM4#

sub69205-12120

main69206-10040-05iCE90,EE90..STD198705-198908

DARK BEIGE,TRIM4#

sub69206-10040

sub69206-10030

main69206-10040-13iCE90,EE90..STD198705-199205

GRAY,TRIM1#

sub69206-10040

sub69206-10030

main69206-10040-34iCE90,EE90..STD198908-199205

BLUE,TRIM8#

sub69206-10040

sub69206-10030

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-12110iAE9#,CE90,EE90198705-199205

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04014iAE9#,CE90,EE90198705-199205

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-12110iAE9#,CE90,EE90198705-199205

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iAE9#,CE90,EE90198705-199205

RH

main69293-12040iAE9#,CE90,EE90198705-199205

LH

69315BRETAINER, REAR DOOR LOCK SOLENOID

main69315-12010iAE9#,CE90,EE90..(SED,WG)..(GL,GLI,XL,XLI)198705-199205

69330LOCK ASSY, REAR DOOR, RH

main69330-12210iAE9#,CE90,EE90198705-198908

sub69330-12220

main69330-12211iAE9#,CE90,EE90198908-199205

main69330-12220iAE92,EE90..LHD..(GL,GTI,XL);AE95,CE90..LHD..(GL,GLI,XL,XLI)198705-199109

W(*EL)

main69330-12221iAE95,CE90,EE90..RHD..(SED,WG)198908-199205

W(*EL)

69340LOCK ASSY, REAR DOOR, LH

main69340-12210iAE9#,CE90,EE90198705-198908

sub69340-12220

main69340-12211iAE9#,CE90,EE90198908-199205

main69340-12220iAE92,EE90..LHD..(GL,GTI,XL);AE95,CE90..LHD..(GL,GLI,XL,XLI)198705-199109

W(*EL)

main69340-12221iAE95,CE90,EE90..RHD..(SED,WG)198908-199205

W(*EL)

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iAE9#,CE90,EE90198705-199205

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-12040iAE9#,CE90,EE90198705-199205

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-12050iAE9#,CE90,EE90198705-199205

69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH

main69727-12010iAE92,CE90,EE90..LB198803-199205

69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH

main69728-12010iAE92,CE90,EE90..LB198803-199205

69736DGUIDE, REAR DOOR LOCKING LINK

main69736-12030iAE9#,CE90,EE90198705-199005

main69736-20090iAE9#,CE90,EE90199005-199205

sub69736-12030

69741CKNOB, REAR DOOR LOCK CONTROL

main69741-90K00iAE95,CE90..SED,WG;AE92,EE90..(SED,WG)..CBR198908-199107

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-02iAE9#,CE90,EE90..RHD..(LB,SED)..(CBR,DSL)198705-198809

MAROON,TRIM3#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-03iAE9#,CE90,EE90198705-199205

SHADOW GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-05iAE9#,CE90,EE90..GL,GLI,STD,XL,XLI198705-198809

DARK BEIGE,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-34iAE95..RHD..WG;AE9#,CE90,EE90..LHD..(GL,GLI,XL,XLI)198705-198809

BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-D0iAE9#,CE90,EE90..RHD..(LB,SED)..(CBR,DSL)198809-199205

MAROON,TRIM3#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-E0iAE92,CE90,EE90..LB..(CBR,DSL)198809-198908

DARK BEIGE,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-E1iAE95..LHD;AE92,CE90,EE90..LHD..SED..(GL,GLI,XL,XLI)198908-199205

BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-J0iAE92,CE90,EE90..LHD..LB..(CBR,DSL)198809-199205

DARK BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12040iAE92,CE90,EE90198705-199205

RR

main69749-20010iAE92,CE90,EE90198705-199205

FR

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-12070iAE9#,CE90,EE90198705-199205

RH,CREAM

main69759-20040iAE9#,CE90,EE90198705-199205

LH,YELLOW

main69759-20100iAE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199205

LH,RED

main69759-20110iAE9#,CE90,EE90..GL,GLI,GTI,XL,XLI198705-199205

RH,BLACK

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-20060iAE9#,CE90,EE90198705-199205

RH

main69759-20070iAE9#,CE90,EE90198705-199205

LH

69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-12040iAE9#,CE90,EE90198705-199205

69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-12040iAE9#,CE90,EE90198705-199205

8511

6974912040CLAMP, FRONT DOOR LOCK LINK

main69749-12040

9015960081

main90159-60081

9015960329

main90159-60329

9015960359

main90159-60359

9015960399

main90159-60399

9015980029

main90159-80029

9016250008

main90162-50008

9017906009

main90179-06009

9018905003

main90189-05003

9018906018

main90189-06018

9151160610

main91511-60610

9165140610

main91651-40610

34 parts on this diagram · 1 diagram in section
