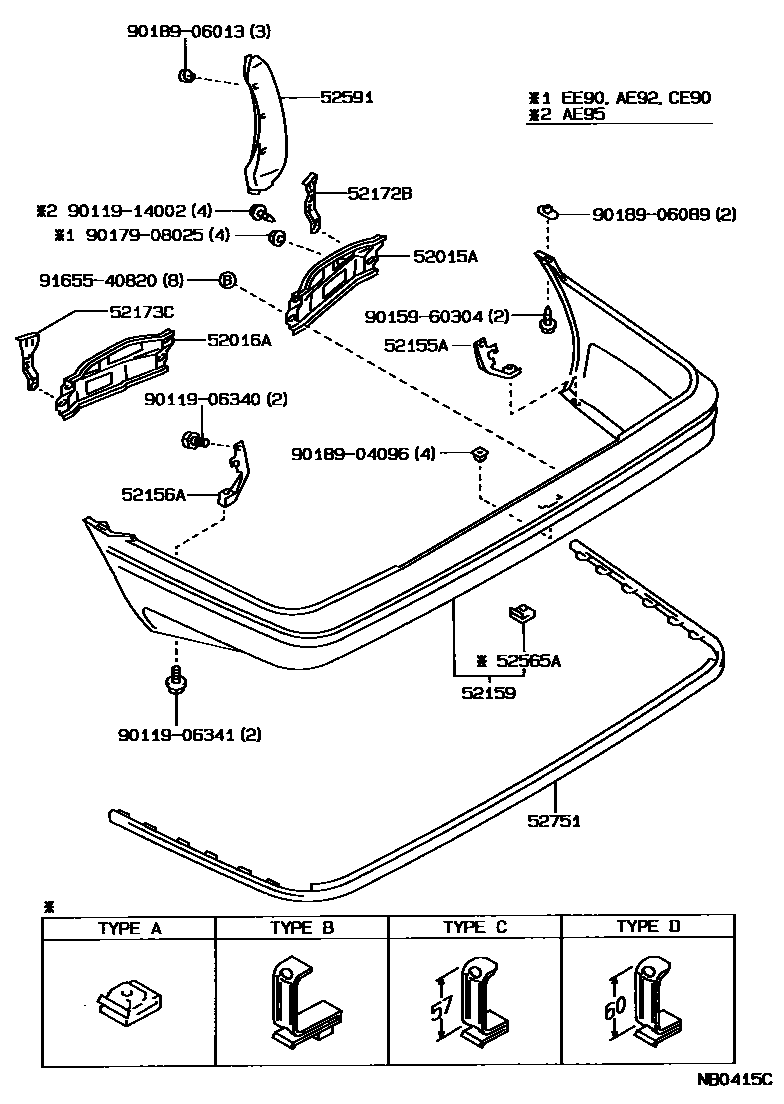

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0005 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-12210iAE95..WG198802-199009

main52015-12230iAE95198710-198802

main52015-12231iAE95..SED198802-199008

main52015-13080iAE92,CE90,EE90..WG198708-199205

main52181-12280iAE92,CE90,EE90..SED198705-199205

main52181-12300iAE92,CE90,EE90..LB198705-199205

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-12210iAE95..WG198802-199009

main52016-12220iAE95198710-198802

main52016-12221iAE95..SED198802-199008

main52016-13070iAE92,CE90,EE90..WG198708-199205

main52182-12230iAE92,CE90,EE90..SED198705-199205

main52182-12250iAE92,CE90,EE90..LB198705-199205

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-12150iAE9#,CE90,EE90..LB,SED198705-199205

main52155-13030iAE92,CE90,EE90..WG198708-199205

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-12140iAE92,CE90,EE90..LB,SED198705-199205

main52156-12170iAE95..SED198710-199008

main52156-13030iAE92,CE90,EE90..WG198708-199205

52159COVER, REAR BUMPER

main52159-12710iAE9#,CE90,EE90..SED..(STD,XL,XLI)198705-199205

main52159-12770iAE92,CE90,EE90..LB198705-199205

main52159-12830iAE92,CE90,EE90..LHD..SED..XL; CE90,EE90..RHD..SED..XL198705-198908

W(CHOROME MOULDING)

main52159-13020iAE92,CE90,EE90..WG198708-199205

main52159-1A080iAE95..WG198802-199009

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52172-12140iAE92,CE90,EE90..LB198705-199205

52173CREINFORCEMENT, REAR BUMPER, NO.3

main52173-12130iAE92,CE90,EE90..LB198705-199205

52565ARETAINER, REAR BUMPER, LOWER

main52565-12040×6iAE92,CE90,EE90..LHD..SED..XL; AE95..SED..(XL,XLI); CE90,EE90..RHD..SED..XL198805-198908

TYPE A

main52565-12100×2iAE9#,CE90,EE90..SED..(GL,GLI,XL,XLI)198805-198908

TYPE B

main52565-12110iAE92,CE90,EE90..SED198705-198805

TYPE C

main52565-12160iAE92,CE90,EE90..SED..(GL,GLI,XL,XLI)199008-199205

TYPE D

main52565-16020×6iAE92,CE90,EE90..SED..(XL,XLI); AE95..SED..(GL,GLI); AE95..SED..(XL,XLI)198910-199008

TYPE A

52591SEAL, REAR BUMPER SIDE, RH

main52591-12050iAE9#,CE90,EE90..LB,SED198705-198905

main52591-12051iAE9#,CE90,EE90..LB,SED198905-199205

52751MOULDING, REAR BUMPER

main52751-12120iAE9#,CE90,EE90..SED..(GL,GLI,XL,XLI)198705-199205

main52751-12150iAE92,CE90,EE90..LB198705-199205

9011906340

main90119-06340

9011906341

main90119-06341

9011914002

main90119-14002

9015960304

main90159-60304

9017908025

main90179-08025

9018904096

main90189-04096

9018906013

main90189-06013

9018906089

main90189-06089

9165540820

main91655-40820

19 parts on this diagram · 4 diagrams in section
