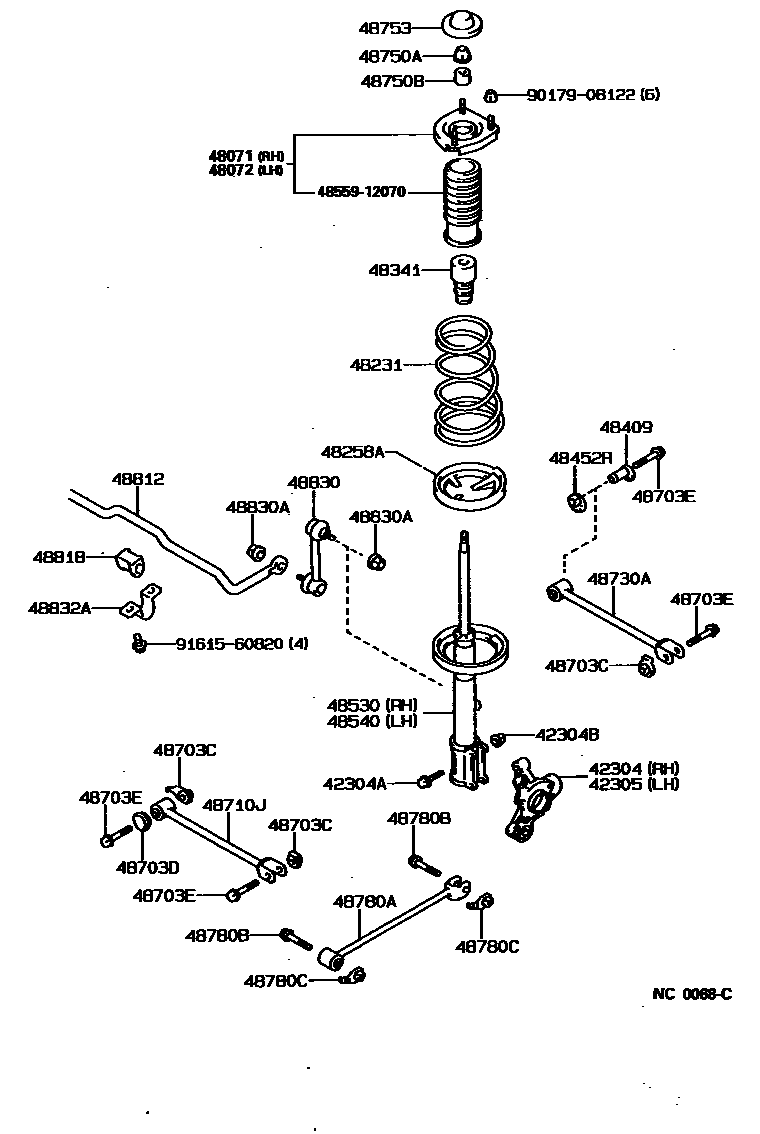

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-12020iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198705-199205

main42304-12040iAE92..EFI198705-198908

main42304-12060iAE92..GTI198908-199205

42304ABOLT (FOR REAR AXLE CARRIER)

main90105-12102iAE92,CE90,EE90198705-199205

sub90105-12236

42304BNUT (FOR REAR AXLE CARRIER)

main90179-12025iAE92,CE90,EE90198705-199205

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-12020iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198705-199205

main42305-12040iAE92..EFI198705-198908

main42305-12060iAE92..GTI198908-199205

48071SUPPORT SUB-ASSY, REAR SUSPENSION, RH

main48071-12030iAE92,CE90,EE90198705-199108

sub48071-01011

sub48071-12100

main48071-12100iAE92,CE90,EE90199108-199205

sub48072-12080

48072SUPPORT SUB-ASSY, REAR SUSPENSION, LH

main48072-12030iAE92,CE90,EE90198705-199108

sub48072-01011

sub48072-12100

main48072-12100iAE92,CE90,EE90199108-199205

sub48071-12080

48231SPRING, COIL, REAR

main48231-12870iAE92,EE90..SED198908-199205

main48231-1A080iCE90..SED198705-198908

main48231-1A110iAE92,EE90..SED198705-199104

main48231-1A130iCE90..LB198705-199205

main48231-1A140iCE90..WG198908-199205

main48231-1A140iCE90..LHD..SED198705-198908

ROUGH ROAD PACKAGE 1

main48231-1A160iAE92..SED..CBR;EE90..LHD..SED..(3FC,4F)..XL;EE90..LHD..SED..(GL,STD)..CBR198908-199205

ROUGH ROAD PACKAGE

main48231-1A160iAE92..SED..CBR;EE90..LHD..SED..(3FC,4F)..XL;EE90..LHD..SED..(GL,STD)..CBR199102-199205

ROUGH ROAD PACKAGE 1 & SOVIET UNION SPEC;ROUGH ROAD PACKAGE

main48231-1A160iAE92,EE90..LHD..SED198705-198908

ROUGH ROAD PACKAGE 1

main48231-1A180iCE90..LHD..(LB,WG)198705-198908

ROUGH ROAD PACKAGE 1

main48231-1A180iCE90..LB198908-199202

ROUGH ROAD PACKAGE

main48231-1A180iCE90..LB199202-199205

ROUGH ROAD PACKAGE 1 & SOVIET UNION SPEC;ROUGH ROAD PACKAGE

main48231-1A210iEE90..LB..3FC..XL;AE92..LHD..(LB,WG)..CBR;EE90..LHD..(LB,WG)..(GL,STD)..CBR;CE90,EE90..LHD..WG..5F..(CBR,DSL)199202-199205

ROUGH ROAD PACKAGE 1 & SOVIET UNION SPEC;ROUGH ROAD PACKAGE

sub48231-32420

main48231-1A210iAE92..LHD..3FC..GL;EE90..LHD..(LB,WG);AE92..LHD..(LB,WG)..5F..CBR198705-198908

ROUGH ROAD PACKAGE 1

sub48231-32420

main48231-1A210iCE90..WG;AE92,EE90..LHD..(LB,WG)..CBR198908-199205

ROUGH ROAD PACKAGE

sub48231-32420

main48231-1A310iAE95..SED198710-198908

main48231-1A320iAE95..WG198802-198908

main48231-1A320iAE95..LHD..WG..CBR198908-199009

ROUGH ROAD PACKAGE

main48231-1A470iAE92..GTI198705-199205

sub48231-2B171

main48231-1A580iAE95..LHD..SED..CBR198802-198908

ROUGH ROAD PACKAGE 1

main48231-1A700iAE92..RHD;EE90..LB,WG;AE92..(LB,WG)..(GLI,XL,XLI)198908-199205

sub48231-1A060

main48231-1A760iAE92..LHD..LB..GL198908-199205

main48231-1A800iAE95..SED198908-199008

main48231-1A880iAE95..WG198908-199009

sub48231-1E010

main48231-1E550iAE92..SED;EE90..SED..CBR;EE90..SED..XLI199104-199205

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-12010iAE95198710-199009

main48258-12020iAE92,CE90,EE90198705-199205

48341BUMPER, REAR SPRING

main48341-12130iAE92,CE90,EE90198705-199205

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-12040iAE92,CE90,EE90198705-199205

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-32020iAE92,CE90,EE90198705-199205

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-12180iAE92,EE90..CBR198705-198905

MARK 48530-12180

sub48530-12520

main48530-12200iCE90198705-198905

MARK 48530-12200

sub48530-12201

main48530-12201iCE90198905-199205

MARK 48530-12201

main48530-12220iAE92..EFI198705-198905

MARK 48530-12220

sub48530-12221

main48530-12221iAE92..EFI198905-198908

sub48530-12430

main48530-12320iCE90,EE90..LHD;AE92..LHD..5F..CBR;AE92..LHD..3FC..GL198705-198908

ROUGH ROAD PACKAGE 1

sub48530-12321

main48530-12321iCE90,EE90..LHD..(LB,SED)..5F..XL199106-199205

ROUGH ROAD PACKAGE 1 & SOVIET UNION SPEC;ROUGH ROAD PACKAGE

main48530-12321iAE92,CE90,EE90..LHD..(CBR,DSL)198908-199205

ROUGH ROAD PACKAGE

main48530-12410iAE92,EE90..GL,GLI,STD,XL,XLI198908-199205

MARK 48530-12410

sub48530-12201

main48530-12430iAE92..GTI198908-199205

MARK 48530-12430

main48530-12520iAE92,EE90..CBR198905-198908

MARK 48530-12520

sub48530-12410

main48531-80080iAE95..SED198710-198908

MARK 12390 OR 12400

sub48531-80176

main48531-80085iAE95..WG198802-198908

main48531-80090iAE95..LHD..WG..CBR198908-199009

ROUGH ROAD PACKAGE

sub48531-80438

main48531-80090iAE95..LHD..CBR198710-198908

ROUGH ROAD PACKAGE 1

sub48531-80438

main48531-80099iAE95..SED198908-199008

MARK 48531-12391

sub48531-80177

main48531-80101iAE95..WG198908-199009

sub48531-80437

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80080iAE95..SED198710-198908

MARK 12390 OR 12400

sub48531-80176

main48531-80085iAE95..WG198802-198908

main48531-80090iAE95..LHD..WG..CBR198908-199009

ROUGH ROAD PACKAGE

sub48531-80438

main48531-80090iAE95..LHD..CBR198710-198908

ROUGH ROAD PACKAGE 1

sub48531-80438

main48531-80099iAE95..SED198908-199008

MARK 48531-12391

sub48531-80177

main48531-80101iAE95..WG198908-199009

sub48531-80437

main48540-12120iAE92,EE90..CBR198705-198905

MARK 48540-12120

sub48540-12460

main48540-12140iCE90198705-198905

MARK 48540-12140

sub48540-12141

main48540-12141iCE90198905-199205

MARK 48540-12141

main48540-12160iAE92..EFI198705-198905

MARK 48540-12160

sub48540-12161

main48540-12161iAE92..EFI198905-198908

sub48540-12370

main48540-12260iCE90,EE90..LHD;AE92..LHD..5F..CBR;AE92..LHD..3FC..GL198705-198908

ROUGH ROAD PACKAGE 1

sub48540-12261

main48540-12261iAE92..LHD..CBR;EE90..LHD..SED..(3FC,4F)..XL;EE90..LHD..SED..(GL,STD)..CBR;CE90,EE90..LHD..(LB,WG)..(CBR,DSL)199106-199205

ROUGH ROAD PACKAGE 1 & SOVIET UNION SPEC;ROUGH ROAD PACKAGE

main48540-12261iCE90,EE90..LHD..SED..5F..XL198908-199205

ROUGH ROAD PACKAGE

main48540-12350iAE92,EE90..GL,GLI,STD,XL,XLI198908-199205

MARK 48540-12350

sub48540-12141

main48540-12370iAE92..GTI198908-199205

MARK 48540-12370

main48540-12460iAE92,EE90..CBR198905-198908

MARK 48540-12460

sub48540-12350

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12063iAE92,CE90,EE90198705-199205

BODY SIDE

main90179-12064iAE92,CE90,EE90198705-199205

CARRIER SIDE

48703DWASHER(FOR REAR SUSPENSION ARM)

main90209-13005iAE92,CE90,EE90198705-199205

48703EBOLT(FOR REAR SUSPENSION ARM)

main90119-12145iAE92,CE90,EE90..CBR,DSL198705-198711

*12-1.25PX71-34

sub90119-12150

main90119-12146iAE92,CE90,EE90..CBR,DSL198705-198711

*12-1.25PX86-30

main90119-12150iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198711-199205

*12-1.25PX71-34

main90119-12152iAE92..LHD..GTI198711-199205

*12-1.25PX86-26

48710ARM ASSY, UPPER CONTROL

main48710-12140iAE95198710-199009

48710JARM ASSY, REAR SUSPENSION, NO.1

main48710-12040iAE92,CE90,EE90..GL,GLI,STD,XL,XLI198705-199205

main48710-12050iAE92..GTI198705-199205

48730AARM ASSY, REAR SUSPENSION, NO.2

main48730-12010iAE92,CE90,EE90..LB,SED198705-199205

main48730-12010iAE92,CE90,EE90..WG198708-199205

RH

main48730-12020iAE92..GTI198705-199205

main48730-13010iAE92,CE90,EE90..WG198708-199205

LH

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90179-14015iAE92,CE90,EE90198705-199205

48750BCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90387-15012iAE92,CE90,EE90198705-199205

sub90387-15027

48753COVER, REAR SUSPENSION SUPPORT

main48753-12010iAE92,CE90,EE90198705-199205

48780AROD ASSY, STRUT, REAR

main48780-12010iAE92,CE90,EE90198705-199205

sub48780-32060

48780BBOLT(FOR STRUT ROD)

main90119-12146iAE92,CE90,EE90198705-198711

main90119-12152iAE92,CE90,EE90198711-198808

48780CNUT(FOR STRUT ROD)

main90179-12062iAE92,CE90,EE90198705-199205

CARRIER SIDE

main90179-12063iAE92,CE90,EE90198705-199205

BODY SIDE

48812BAR, STABILIZER, REAR

main48812-12050iAE92,EE90..CBR198705-198908

main48812-12060iAE92..GTI198705-199205

main48812-12070iAE92,EE90..GL,GLI,STD,XL,XLI198908-199205

main48812-12120iCE90198705-199205

48818BUSH, STABILIZER, REAR

main48818-12050iAE92,EE90..CBR198705-198908

main48818-12060iAE92..GTI198705-199205

main48818-12070iAE92,EE90..GL,GLI,STD,XL,XLI198908-199205

main48818-12080iCE90198705-199205

48830LINK ASSY, REAR STABILIZER

main48830-20010iAE92,CE90,EE90198705-199205

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054iAE92,CE90,EE90198705-199106

main90179-10183iAE92,CE90,EE90199106-199205

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-20020iAE92,CE90,EE90198705-199205

main48832-22020iAE95198710-199009

4855912070COVER, SHOCK ABSORBER, DUST

main48559-12070

9017908122

main90179-08122

9161560820

main91615-60820

33 parts on this diagram · 2 diagrams in section
