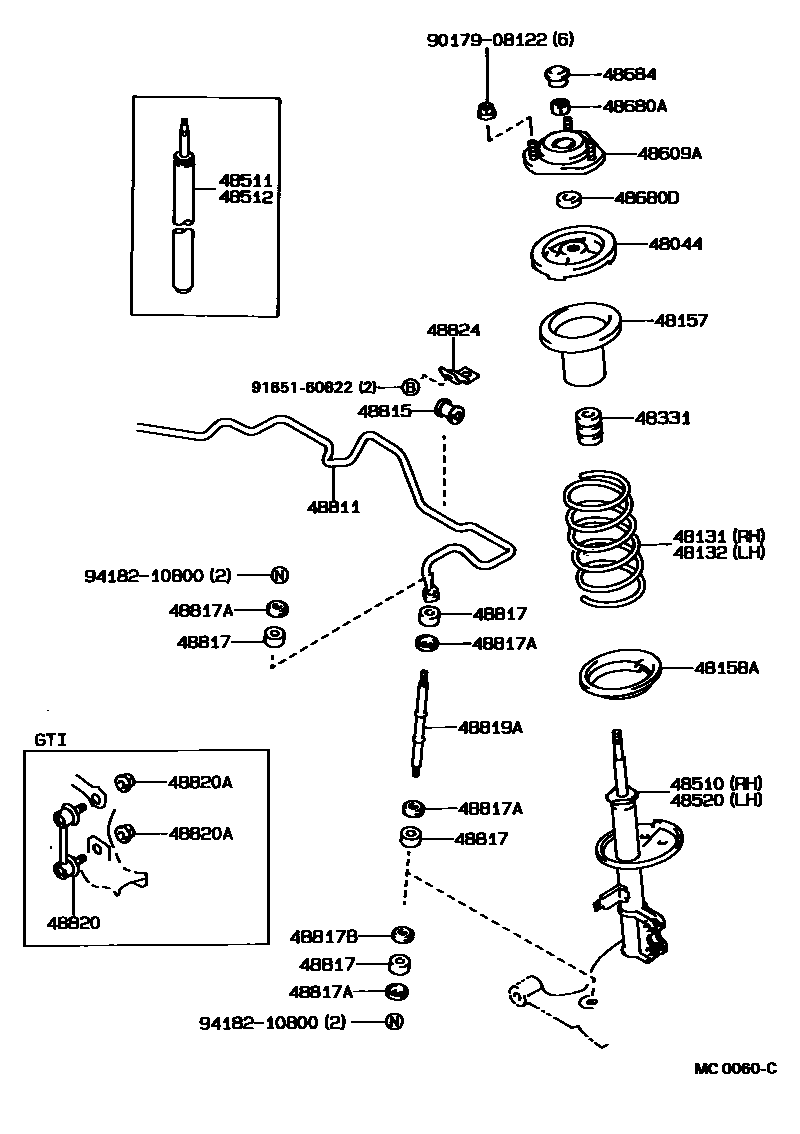

FRONT SPRING & SHOCK ABSORBER

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-12090iCE90..WG198705-199205

48131SPRING, FRONT COIL, RH

main48131-1E720iCE90..LHD;AE95..LHD..SED198705-199205

main48131-1E740iCE90..RHD198705-199205

W(AIR CONDITIONER)

main48131-1E740iCE90..RHD;AE95..RHD..SED198705-198908

main48131-1E810iEE90..LHD..SED..MTM198705-199205

W(AIR CONDITIONER)

sub48131-1H060

main48131-1E810iEE90..RHD..SED..5F;EE90..LHD..SED..3FC198705-198908

sub48131-1H060

main48131-1E840iEE90..LHD..SED..3FC198705-199205

W(AIR CONDITIONER)

main48131-1E840iAE92..SED;EE90..RHD..SED..3FC198705-198908

main48131-1E860iAE92..RHD..5F;AE92..LHD..3FC;EE90..RHD..3FC198705-199205

W(AIR CONDITIONER)

main48131-1E860iAE92..LHD..EFI198705-198908

main48131-1E880iAE92..RHD..3FC198705-199205

main48131-1H060iEE90..LHD..(LB,WG)..MTM198705-198908

W(AIR CONDITIONER)

main48131-1H060iEE90..LB..3FC..XL;EE90..RHD..(LB,WG)..5F198705-198908

main48131-1H130iEE90..LB..3FC..XL198705-198908

W(AIR CONDITIONER)

main48131-1H130iEE90..LB..3FC..GL;AE92..LHD..(LB,WG)..5F..CBR198705-198908

main48131-1H150iAE92..LHD..(LB,WG)..5F..CBR198705-198908

W(AIR CONDITIONER)

main48131-1H150iAE92..GTI198705-199205

main48131-1H170iAE92..RHD..3FC198705-199008

main48131-1H260iAE95..LHD..SED..CBR198710-198908

ROUGH ROAD PACKAGE 1

main48131-1H370iEE90..LHD..3FC;AE92..LHD..5F..CBR198908-199104

W(AIR CONDITIONER)

main48131-1H370iAE92..LHD..5F..CBR198705-198908

ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)

main48131-1H370iAE92..LHD..3FC..GL198709-198908

ROUGH ROAD PACKAGE 1

main48131-1H390iEE90..LHD..WG198705-199205

main48131-1H420iEE90..LHD..MTM198705-198908

ROUGH ROAD PACKAGE 1

main48131-1H420iEE90..LHD..WG198908-199104

main48131-1H440iEE90..LHD..MTM198705-198908

ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)

main48131-1H440iEE90..LHD..3FC198705-198908

ROUGH ROAD PACKAGE 1

main48131-1H440iEE90..RHD..WG;EE90..LHD..(LB,SED)..MTM198908-199104

W(AIR CONDITIONER)

main48131-1H460iEE90..LHD..3FC;EE90..RHD..(LB,SED)..5F;AE92..LHD..5F..(GL,GLI,XL,XLI)198908-199104

W(AIR CONDITIONER)

main48131-1H460iEE90..LHD..3FC198705-198908

ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)

main48131-1H460iAE92..LHD..5F..CBR198705-198908

ROUGH ROAD PACKAGE 1

main48131-1H480iEE90..LHD..(LB,WG)..MTM198705-198908

main48131-1H510iAE95..LHD..SED..CBR198908-199008

W(AIR CONDITIONER)

main48131-1H550iAE95..LHD..SED..CBR198710-198908

ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)

main48131-1H550iAE95..LHD..WG198802-198908

main48131-1H550iAE95..LHD..WG..CBR198908-199009

ROUGH ROAD PACKAGE

main48131-1H650iAE95..LHD..WG..CBR198802-198908

W(AIR CONDITIONER)

main48131-1H650iAE95..LHD..WG..CBR198908-199009

ROUGH ROAD PACKAGE & W(AIR CONDITIONER)

main48131-1H650iAE95..RHD..WG198802-198908

main48131-1H780iAE95..RHD..WG198908-199009

W(AIR CONDITIONER)

main48131-1H800iAE95..LHD..WG198908-199009

48132SPRING, FRONT COIL, LH

main48131-1E720iCE90..RHD;AE95..RHD..SED198705-198908

main48131-1E720iAE92..LHD..5F..CBR198705-198908

ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)

main48131-1E720iAE92..WG..CBR198908-199205

W(AIR CONDITIONER)

main48131-1E720iAE92..LHD..3FC..GL198709-198908

ROUGH ROAD PACKAGE 1

main48131-1E740iCE90..LHD;AE95..LHD..SED198705-199205

main48131-1E760iCE90..LHD198705-199205

W(AIR CONDITIONER)

main48131-1E810iEE90..RHD..SED..3FC;EE90..LHD..SED..MTM198705-199205

sub48131-1H060

main48131-1E840iEE90..LHD..WG..CBR198705-199205

W(AIR CONDITIONER)

main48131-1E840iEE90..LHD..SED..3FC198705-198908

main48131-1E860iEE90..LHD..SED..3FC198705-199205

W(AIR CONDITIONER)

main48131-1E860iAE92..SED;AE92..RHD..EFI198705-198908

main48131-1E880iAE92..LHD..3FC198705-199205

W(AIR CONDITIONER)

main48131-1E880iAE92..LHD..EFI198705-198908

main48131-1H060iEE90..LB..3FC..GL;EE90..LHD..(LB,WG)..MTM198705-198908

main48131-1H130iEE90..LHD..(LB,WG)..MTM198705-198908

W(AIR CONDITIONER)

main48131-1H130iEE90..LB..3FC..XL;AE92..RHD..5F..CBR198705-198908

main48131-1H150iEE90..LB..3FC..XL198705-198908

W(AIR CONDITIONER)

main48131-1H150iAE92..RHD..3FC;AE92..LHD..(LB,WG)..5F..CBR198705-198908

main48131-1H170iAE92..LHD..(LB,WG)..5F..CBR198705-198908

W(AIR CONDITIONER)

main48131-1H170iAE92..GTI;AE95..RHD..SED198705-199205

main48131-1H370iAE92..LHD..5F..CBR198705-198908

ROUGH ROAD PACKAGE 1

main48131-1H370iEE90..LHD..3FC198705-198908

ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)

main48131-1H370iAE92..RHD..3FC;EE90..LHD..3FC;AE92..LHD..5F..(GL,GLI,XL,XLI)198908-199104

W(AIR CONDITIONER)

main48131-1H390iEE90..RHD..WG198705-199205

main48131-1H420iEE90..RHD..WG198908-199104

main48131-1H440iEE90..LHD..WG;EE90..RHD..(LB,SED)..5F198908-199104

main48131-1H440iEE90..LHD..MTM198705-198908

ROUGH ROAD PACKAGE 1

main48131-1H460iEE90..LHD..3FC198705-198908

ROUGH ROAD PACKAGE 1

main48131-1H460iEE90..LHD..MTM198705-198908

ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)

main48131-1H460iEE90..LHD..WG..CBR198908-199104

W(AIR CONDITIONER)

main48131-1H480iEE90..RHD..(LB,WG)..5F198705-198908

main48131-1H510iAE95..LHD..SED198908-199008

main48131-1H530iAE95..LHD..SED..CBR198908-199008

W(AIR CONDITIONER)

main48131-1H550iAE95..RHD..WG198802-198908

main48131-1H550iAE95..LHD..SED..CBR198710-198908

ROUGH ROAD PACKAGE 1

main48131-1H650iAE95..LHD..WG..CBR198908-199009

ROUGH ROAD PACKAGE

main48131-1H650iAE95..LHD..SED..CBR198710-198908

ROUGH ROAD PACKAGE 1 & W(AIR CONDITIONER)

main48131-1H650iAE95..LHD..WG198802-198908

main48131-1H670iAE95..LHD..WG..CBR198802-198908

W(AIR CONDITIONER)

main48131-1H670iAE95..LHD..WG..CBR198908-199009

ROUGH ROAD PACKAGE & W(AIR CONDITIONER)

main48131-1H780iAE95..LHD..WG198908-199009

main48131-1H800iAE95..RHD..WG198908-199009

main48131-1H830iAE95..LHD..WG..CBR198908-199009

W(AIR CONDITIONER)

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-12060iEE90..RHD..SED..5F198705-199205

48158AINSULATOR, FRONT COIL SPRING, LOWER

main48158-12030iAE9#,CE90,EE90198705-199205

48331BUMPER, FRONT SPRING, NO.1

main48331-12100iAE92,EE90..CBR198705-199108

sub48331-12120

main48331-12120iAE92,EE90..GL,GLI,STD,XL,XLI199108-199205

main48331-12130iCE90..LHD..SED199102-199103

ROUGH ROAD PACKAGE 1 & SOVIET UNION SPEC

main48331-12130iEE90..LHD;AE92..LHD..5F..CBR198705-199205

ROUGH ROAD PACKAGE 1

main48331-12130iAE95;AE92,CE90..DSL,EFI198705-199205

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-12530iAE92,EE90..CBR198705-198908

sub48510-12520

main48510-12531iAE92,EE90..GL,GLI,STD,XL,XLI198908-199205

sub48510-12520

main48510-12550iCE90198705-198805

sub48510-12590

main48510-12560iAE92..EFI198705-199205

sub48510-12590

main48510-12600iEE90..LHD..CBR;AE92..LHD..3FC..GL;AE92,CE90..LHD..5F..(CBR,DSL)198705-199205

ROUGH ROAD PACKAGE 1

sub48510-12601

main48510-12650iAE95..WG198802-198908

sub48510-12652

main48510-12651iAE95..WG198908-199009

sub48510-12650

main48510-12660iAE95..SED198710-198908

sub48510-12661

main48510-12661iAE95..SED198908-199008

sub48510-12600

main48510-12710iAE95..LHD..CBR198710-199009

ROUGH ROAD PACKAGE 1

sub48510-12600

main48510-12720iAE92..GTI198908-199205

sub48510-12721

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-12320iAE92,EE90..CBR198705-198908

main48511-12330iCE90198705-199205

*90

sub48511-12410

main48511-12350iAE92..SED..XL;AE92..LHD..(LB,WG)..CBR;CE90,EE90..LHD..(CBR,DSL)198705-199205

*90,ROUGH ROAD PACKAGE 1

main48511-12360iAE95..WG198802-198908

*90

sub48511-12370

main48511-12370iAE95..SED198710-198908

*90

main48511-12380iAE95..LHD..WG..CBR198710-199009

*90,ROUGH ROAD PACKAGE 1

main48511-12400iEE90;AE92..SED..(GLI,XL,XLI);AE92..(LB,WG)..(GL,GLI,XL,XLI)198908-199205

*90

sub48511-12320

main48511-12410iAE92..GTI198908-199205

*90

main48511-12420iAE95..WG198908-199009

*90

sub48511-12370

main48511-12430iAE95..SED198908-199008

*90

sub48511-12370

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-12320iAE92,EE90..CBR198705-198908

main48511-12330iCE90198705-199205

*90

sub48511-12410

main48511-12350iAE92..SED..XL;AE92..LHD..(LB,WG)..CBR;CE90,EE90..LHD..(CBR,DSL)198705-199205

*90,ROUGH ROAD PACKAGE 1

main48511-12360iAE95..WG198802-198908

*90

sub48511-12370

main48511-12370iAE95..SED198710-198908

*90

main48511-12380iAE95..LHD..CBR198710-199009

*90,ROUGH ROAD PACKAGE 1

main48511-12400iEE90;AE92..SED..(GLI,XL,XLI);AE92..(LB,WG)..(GL,GLI,XL,XLI)198908-199205

*90

sub48511-12320

main48511-12410iAE92..GTI198908-199205

*90

main48511-12420iAE95..WG198908-199009

*90

sub48511-12370

main48511-12430iAE95..SED198908-199008

*90

sub48511-12370

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-12400iAE92,EE90..CBR198705-198908

sub48520-12390

main48520-12401iAE92,EE90..GL,GLI,STD,XL,XLI198908-199205

sub48520-12390

main48520-12420iCE90198705-198805

sub48520-12460

main48520-12430iCE90198705-199205

sub48520-12460

main48520-12470iCE90,EE90..LHD;AE92..LHD..5F..CBR198705-199205

ROUGH ROAD PACKAGE 1

sub48520-12471

main48520-12520iAE95..WG198802-198908

sub48520-12522

main48520-12521iAE95..WG198908-199009

sub48520-12520

main48520-12530iAE95..SED198710-198908

sub48520-12531

main48520-12531iAE95..SED198908-199008

sub48520-12470

main48520-12580iAE95..LHD..WG..CBR198710-199009

ROUGH ROAD PACKAGE 1

sub48520-12470

main48520-12590iAE92..GTI198908-199205

sub48520-12591

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-12190iAE9#,CE90,EE90..GL,GLI,STD,XL,XLI198705-198808

sub48609-12191

main48609-12191iAE9#,CE90,EE90..GL,GLI,STD,XL,XLI198808-198905

sub48609-12192

main48609-12192iAE9#,CE90,EE90..GL,GLI,STD,XL,XLI198905-199205

main48609-12210iAE92..EFI198705-198808

sub48609-12211

main48609-12210iCE90,EE90..LHD;AE92..LHD..5F..CBR198705-198905

ROUGH ROAD PACKAGE 1

sub48609-12211

main48609-12211iAE95..LHD..WG..CBR198905-199009

ROUGH ROAD PACKAGE 1

main48609-12230iAE92..EFI198808-198905

sub48609-12231

main48609-12231iAE92..WG..CBR198905-199205

ROUGH ROAD PACKAGE 1

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iCE90..LHD..SED198705-199205

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iAE92..5F198705-199205

48684COVER, BEARING DUST

main48684-32010iEE90..LHD198705-199205

48811BAR, STABILIZER, FRONT

main48811-12510iAE92..GTI198705-199205

main48811-12530iCE90198705-199205

main48811-12580iAE95..LHD..WG..CBR198908-199009

ROUGH ROAD PACKAGE 1

main48811-12580iAE95198710-198908

main48811-12660iAE92,EE90..GL,GLI,STD,XL,XLI199106-199205

main48811-12670iAE95..SED198908-199008

main48811-12690iAE95..WG198908-199009

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12140iAE92..GTI198705-199205

main48815-12140iAE95..LHD..WG..CBR198908-199009

ROUGH ROAD PACKAGE 1

main48815-12160iCE90198705-199205

main48815-12180iAE95198908-199205

48817CUSHION, FRONT STABILIZER

main48817-30020iAE9#,CE90,EE90198705-199205

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02032iAE9#,CE90,EE90198705-199205

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iAE9#,CE90,EE90198705-199205

48819ABOLT, FRONT STABILIZER

main48819-20030iAE9#,CE90,EE90198705-199205

48820LINK ASSY, FRONT STABILIZER

main48820-20010iAE92..GTI198705-199205

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054iAE92..GTI198705-199106

main90179-10183iAE92;EE90..CBR;EE90..WG..XLI;EE90..(LB,SED)..EFI199106-199205

48824BRACKET, STABILIZER, FRONT

main48824-12090iAE9#,CE90,EE90198705-199205

9017908122

main90179-08122

9165160822

main91651-60822

9418210800

main94182-10800

26 parts on this diagram · 1 diagram in section
