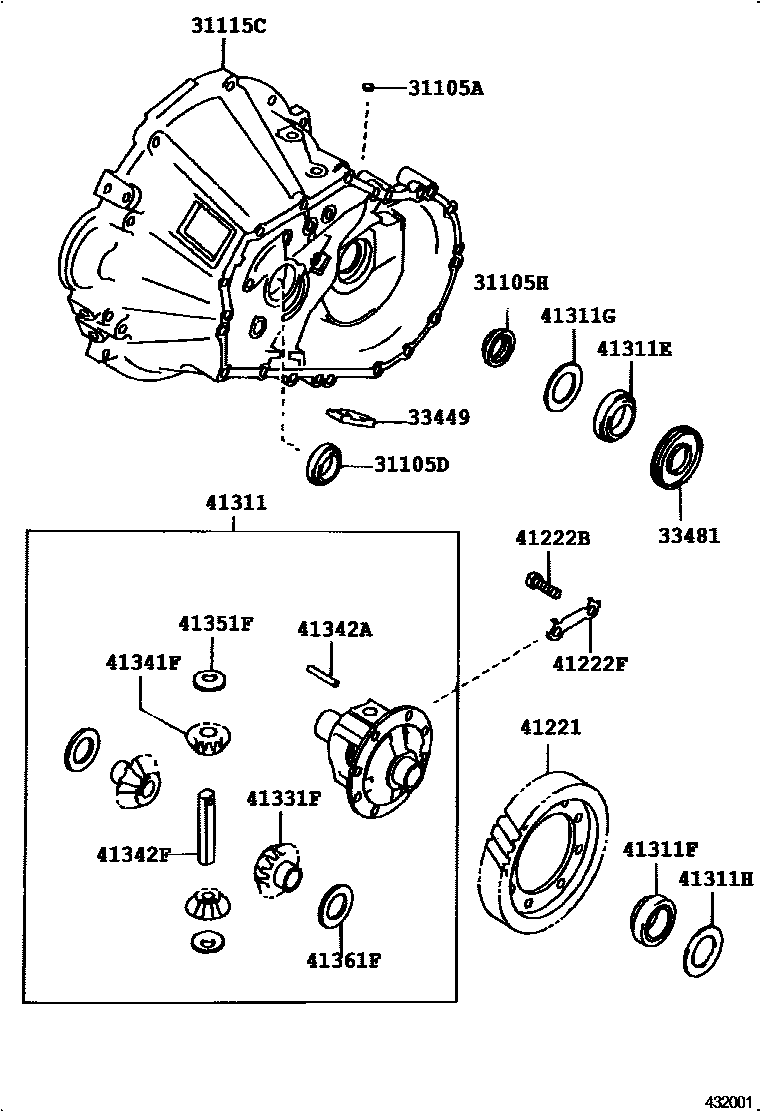

FRONT AXLE HOUSING & DIFFERENTIAL
31105CASE SUB-ASSY, TRANSAXLE(MTM)
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=34,MARK 34X30-32
N=35,MARK 35X29-31
N=25,NO MARK
N=25
41221GEAR, FRONT DIFFERENTIAL RING
sub41221-52320
sub41221-52330
sub41221-12310
sub41221-12330
sub41221-12360
sub41221-52280
sub41221-52260
sub41221-52270
sub41221-12340
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
T=1.95
T=2.00
T=2.05
T=2.10
T=2.15
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=2.45
T=2.50
T=2.55
T=2.60
T=2.65
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.10
T=2.10,MARK A
sub90564-41014
T=2.15,MARK B
sub90564-41015
T=2.20,MARK C
sub90564-41016
T=2.25,MARK D
sub90564-41017
T=2.35,MARK F
sub90564-41019
T=2.50,MARK J
sub90564-41022
T=2.55,MARK K
sub90564-41023
T=2.75,MARK P
sub90564-41027
T=2.80,MARK Q
sub90564-41028
T=2.90,MARK S
sub90564-41030
T=2.95,MARK T
sub90564-41031
41331FGEAR, FRONT DIFFERENTIAL SIDE
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
sub41342-10041
sub41342-12140
sub41342-12020
sub41342-20060
sub41342-32020
sub41342-20050
sub41342-32010
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=0.95,MARK A
T=1.00,MARK B
T=1.05,MARK C
T=1.10,MARK D
T=1.15,MARK E
T=1.20,MARK F
T=1.25,MARK G
T=1.30,MARK H
T=1.35,MARK J
T=1.40,MARK K
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
21 parts on this diagram · 4 diagrams in section
