FRONT SEAT & SEAT TRACK

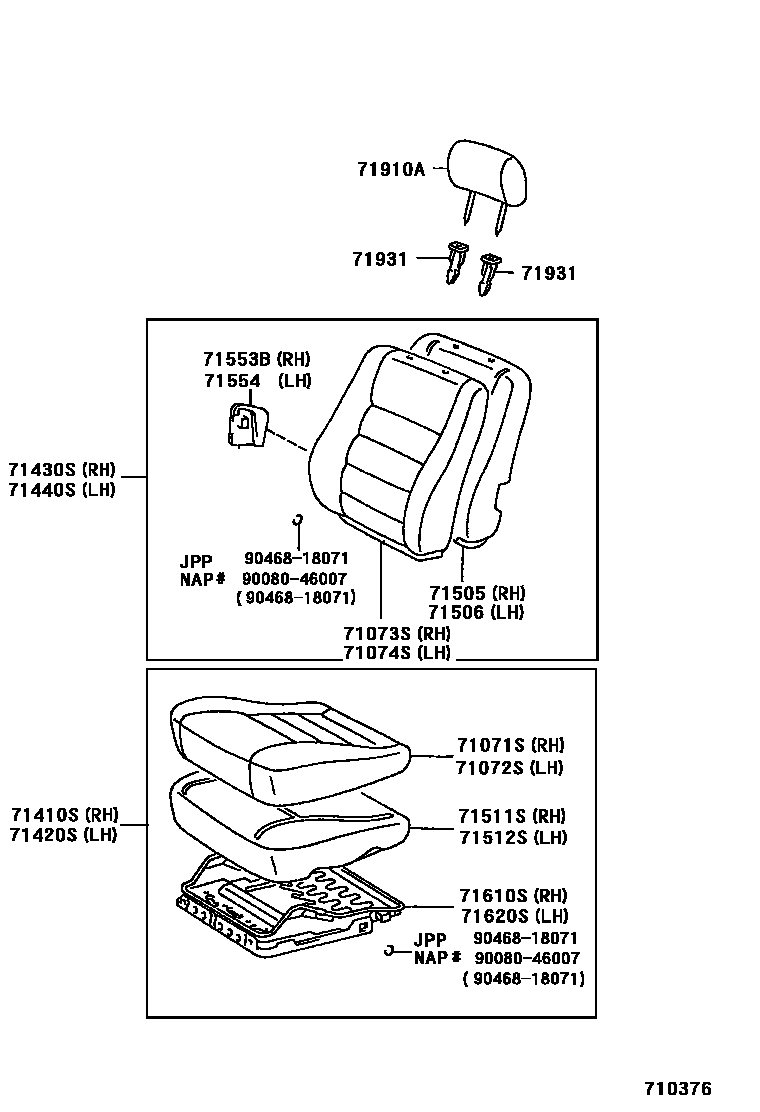

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1K650-B1i199206-199508
SHADOW GRAY,TRIM1#
main71071-1K650-J1i199308-199508
STANDARD PACKAGE(FX**),DARK BLUE,TRIM8#
main71071-1K650-K1i199206-199508
TAUPE,TRIM9#
main71071-1K651-B2i199508-199704
SHADOW GRAY,TRIM1#
main71071-1K651-E0i199508-199704
OAK,TRIM4#
main71071-1K651-J2i199508-199704
DARK BLUE,TRIM8#
main71071-1K660-B1i199206-199210
SHADOW GRAY,TRIM1#
main71071-1K660-J1i199206-199210
DARK BLUE,TRIM8#
main71071-1K660-K0i199206-199308
TAUPE,TRIM9#
main71071-1K661-K1i199308-199408
TAUPE,TRIM9#
main71071-1K662-E0i199508-199704
OAK,TRIM4#
main71071-1K662-K2i199408-199508
TAUPE,TRIM9#
main71071-1K670-B1i199206-199308
SHADOW GRAY,TRIM1#
main71071-1K670-J1i199206-199308
DARK BLUE,TRIM8#
main71071-1K670-K1i199206-199308
TAUPE,TRIM9#
main71071-1K671-B2i199308-199408
SHADOW GRAY,TRIM1#
main71071-1K671-B3i199408-199508
SHADOW GRAY,TRIM1#
main71071-1K671-J2i199308-199408
DARK BLUE,TRIM8#
main71071-1K671-J3i199408-199508
DARK BLUE,TRIM8#
main71071-1K671-K2i199308-199408
TAUPE,TRIM9#
main71071-1K671-K3i199408-199508
TAUPE,TRIM9#
main71071-1L310-B0i199210-199308
SHADOW GRAY,TRIM1#
main71071-1L310-J0i199210-199308
DARK BLUE,TRIM8#
main71071-1L311-B1i199308-199408
SHADOW GRAY,TRIM1#
main71071-1L311-J1i199308-199408
DARK BLUE,TRIM8#
main71071-1L312-B2i199508-199704
SHADOW GRAY,TRIM1#
main71071-1L312-J2i199508-199704
DARK BLUE,TRIM8#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-1K650-B1i199206-199508
SHADOW GRAY,TRIM1#
main71071-1K650-J1i199308-199508
STANDARD PACKAGE(FX**),DARK BLUE,TRIM8#
main71071-1K650-K1i199206-199508
TAUPE,TRIM9#
main71071-1K651-B2i199508-199704
SHADOW GRAY,TRIM1#
main71071-1K651-E0i199508-199704
OAK,TRIM4#
main71071-1K651-J2i199508-199704
DARK BLUE,TRIM8#
main71071-1K660-B1i199206-199210
SHADOW GRAY,TRIM1#
main71071-1K660-J1i199206-199210
DARK BLUE,TRIM8#
main71071-1K660-K0i199206-199308
TAUPE,TRIM9#
main71071-1K661-K1i199308-199408
TAUPE,TRIM9#
main71071-1L310-B0i199210-199308
SHADOW GRAY,TRIM1#
main71071-1L310-J0i199210-199308
DARK BLUE,TRIM8#
main71071-1L311-B1i199308-199408
SHADOW GRAY,TRIM1#
main71071-1L311-J1i199308-199408
DARK BLUE,TRIM8#
main71072-1E540-B1i199206-199308
SHADOW GRAY,TRIM1#
main71072-1E540-J1i199206-199308
DARK BLUE,TRIM8#
main71072-1E540-K1i199206-199308
TAUPE,TRIM9#
main71072-1E541-B2i199308-199408
SHADOW GRAY,TRIM1#
main71072-1E541-B3i199408-199508
SHADOW GRAY,TRIM1#
main71072-1E541-J2i199308-199408
DARK BLUE,TRIM8#
main71072-1E541-J3i199408-199508
DARK BLUE,TRIM8#
main71072-1E541-K2i199308-199408
TAUPE,TRIM9#
main71072-1E541-K3i199408-199508
TAUPE,TRIM9#
main71072-1H200-B0i199408-199508
SHADOW GRAY,TRIM1#
main71072-1H200-J0i199408-199508
DARK BLUE,TRIM8#
main71072-1H210-E0i199508-199704
OAK,TRIM4#
main71072-1H210-K0i199408-199508
TAUPE,TRIM9#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1K210-B1i199206-199508
SHADOW GRAY,TRIM1#
main71073-1K210-J1i199308-199508
STANDARD PACKAGE(FX**),DARK BLUE,TRIM8#
main71073-1K210-K1i199308-199508
STANDARD PACKAGE(FX**),TAUPE,TRIM9#
main71073-1K211-B2i199508-199704
SHADOW GRAY,TRIM1#
main71073-1K211-E0i199508-199704
OAK,TRIM4#
main71073-1K211-J2i199508-199704
DARK BLUE,TRIM8#
main71073-1K220-B1i199206-199210
SHADOW GRAY,TRIM1#
main71073-1K220-J1i199206-199210
DARK BLUE,TRIM8#
main71073-1K220-K0i199206-199408
TAUPE,TRIM9#
main71073-1K221-K1i199408-199505
TAUPE,TRIM9#
main71073-1K222-E0i199508-199704
OAK,TRIM4#
main71073-1K222-K1i199505-199508
TAUPE,TRIM9#
main71073-1K230-B1i199206-199408
SHADOW GRAY,TRIM1#
main71073-1K230-B2i199408-199508
SHADOW GRAY,TRIM1#
main71073-1K230-J1i199206-199408
DARK BLUE,TRIM8#
main71073-1K230-J2i199408-199508
DARK BLUE,TRIM8#
main71073-1K230-K1i199206-199408
TAUPE,TRIM9#
main71073-1K230-K2i199408-199508
TAUPE,TRIM9#
main71073-1K660-B0i199210-199408
SHADOW GRAY,TRIM1#
main71073-1K660-J0i199210-199408
DARK BLUE,TRIM8#
main71073-1K661-B1i199408-199505
SHADOW GRAY,TRIM1#
main71073-1K661-J1i199408-199505
DARK BLUE,TRIM8#
main71073-1K662-B1i199505-199508
SHADOW GRAY,TRIM1#
main71073-1K662-J1i199508-199704
DARK BLUE,TRIM8#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-1H170-B1i199206-199408
SHADOW GRAY,TRIM1#
main71074-1H170-B2i199408-199508
SHADOW GRAY,TRIM1#
main71074-1H170-J1i199206-199408
DARK BLUE,TRIM8#
main71074-1H170-J2i199408-199508
DARK BLUE,TRIM8#
main71074-1H170-K1i199206-199408
TAUPE,TRIM9#
main71074-1H170-K2i199408-199508
TAUPE,TRIM9#
main71074-1H240-B1i199308-199508
STANDARD PACKAGE(FX**),SHADOW GRAY,TRIM1#
main71074-1H240-J1i199206-199508
DARK BLUE,TRIM8#
main71074-1H240-K1i199206-199508
TAUPE,TRIM9#
main71074-1H241-B2i199508-199704
SHADOW GRAY,TRIM1#
main71074-1H241-E0i199508-199704
OAK,TRIM4#
main71074-1H241-J2i199508-199704
DARK BLUE,TRIM8#
main71074-1H250-B1i199206-199210
SHADOW GRAY,TRIM1#
main71074-1H250-J1i199206-199210
DARK BLUE,TRIM8#
main71074-1H250-K0i199206-199408
TAUPE,TRIM9#
main71074-1H251-K1i199408-199505
TAUPE,TRIM9#
main71074-1H252-E0i199508-199704
OAK,TRIM4#
main71074-1H252-K1i199505-199508
TAUPE,TRIM9#
main71074-1H500-B0i199210-199408
SHADOW GRAY,TRIM1#
main71074-1H500-J0i199210-199408
DARK BLUE,TRIM8#
main71074-1H501-B1i199408-199505
SHADOW GRAY,TRIM1#
main71074-1H501-J1i199408-199505
DARK BLUE,TRIM8#
main71074-1H502-B1i199505-199508
SHADOW GRAY,TRIM1#
main71074-1H502-J1i199505-199508
DARK BLUE,TRIM8#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-1K821-B0i199608
***,SHADOW GRAY,TRIM1#
main71410-1K821-E0i199608
***,OAK,TRIM4#
main71410-1K821-J0i199608
***,DARK BLUE,TRIM8#
main71410-1K832-B0i199608
***,SHADOW GRAY,TRIM1#
main71410-1K832-E0i199608
***,OAK,TRIM4#
main71410-1K832-J0i199608
***,DARK BLUE,TRIM8#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-1E711-B0i199608
***,SHADOW GRAY,TRIM1#
main71420-1E711-E0i199608
***,OAK,TRIM4#
main71420-1E711-J0i199608
***,DARK BLUE,TRIM8#
main71420-1E722-B0i199608
***,SHADOW GRAY,TRIM1#
main71420-1E722-E0i199608
***,OAK,TRIM4#
main71420-1E722-J0i199608
***,DARK BLUE,TRIM8#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-1K521-B0i199608
***,SHADOW GRAY,TRIM1#
main71430-1K521-E0i199608
***,OAK,TRIM4#
main71430-1K521-J0i199608
***,DARK BLUE,TRIM8#
main71430-1K532-B0i199608
***,SHADOW GRAY,TRIM1#
main71430-1K532-E0i199608
***,OAK,TRIM4#
main71430-1K532-J0i199608
***,DARK BLUE,TRIM8#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-1K441-B0i199608
***,SHADOW GRAY,TRIM1#
main71440-1K441-E0i199608
***,OAK,TRIM4#
main71440-1K441-J0i199608
***,DARK BLUE,TRIM8#
main71440-1K732-B0i199608
***,SHADOW GRAY,TRIM1#
main71440-1K732-E0i199608
***,OAK,TRIM4#
main71440-1K732-J0i199608
***,DARK BLUE,TRIM8#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-12301×2i199206
main71505-12311i199206-199508
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71505-12301i199508
main71505-12311i199206-199508
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-12770i199508
main71511-12810i199508
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-12770i199508
main71511-12810i199508
71553BPAD, FRONT SEATBACK, B
main71553-12290×2i199206
71554PAD, FRONT SEATBACK, C
main71554-12130×2i199206
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-12420i199206
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-12280i199508
main71620-12290i199206-199508
71910AHEADREST ASSY, FRONT SEAT
main71910-1A370-B1×2i199206-199508
SHADOW GRAY,TRIM1#
main71910-1A370-J1×2i199206-199508
DARK BLUE,TRIM8#
main71910-1A370-K1×2i199206-199508
TAUPE,TRIM9#
main71910-1A380-B1×2i199308-199508
STANDARD PACKAGE(FX**),SHADOW GRAY,TRIM1#
main71910-1A380-J1×2i199206-199508
DARK BLUE,TRIM8#
main71910-1A380-K1×2i199308-199508
STANDARD PACKAGE(FX**),TAUPE,TRIM9#
main71910-1A381-B2×2i199508-199704
SHADOW GRAY,TRIM1#
main71910-1A381-E0×2i199508-199704
OAK,TRIM4#
main71910-1A381-J2×2i199508-199704
DARK BLUE,TRIM8#
main71910-1A390-B1×2i199206-199408
SHADOW GRAY,TRIM1#
main71910-1A390-J1×2i199206-199408
DARK BLUE,TRIM8#
main71910-1A390-K0×2i199206-199408
TAUPE,TRIM9#
main71910-1A391-B2i199508-199704
SHADOW GRAY,TRIM1#,RH
main71910-1A391-E0i199508-199704
OAK,TRIM4#,RH
main71910-1A391-J2i199508-199704
DARK BLUE,TRIM8#,RH
main71910-1A391-K1i199408-199508
TAUPE,TRIM9#,RH
main71910-1A690-B0i199408-199508
SHADOW GRAY,TRIM1#,LH
main71910-1A690-E0i199508-199704
OAK,TRIM4#,LH
main71910-1A690-J0i199408-199508
DARK BLUE,TRIM8#,LH
main71910-1A690-K0i199408-199508
TAUPE,TRIM9#,LH
71931SUPPORT, FRONT SEAT HEADREST
main71930-12070-B0×2i199206-199508
W(LOCK),SHADOW GRAY,TRIM1#
main71930-12070-J0×2i199206-199508
W(LOCK),DARK BLUE,TRIM8#
main71930-12070-K0×2i199206-199508
W(LOCK),TAUPE,TRIM9#
main71930-12080-B0×2i199206-199508
W(LOCK),SHADOW GRAY,TRIM1#
main71930-12080-J0×2i199206-199508
W(LOCK),DARK BLUE,TRIM8#
main71930-12080-K0×2i199206-199508
W(LOCK),TAUPE,TRIM9#
main71930-32020-B0×2i199508-199704
W(LOCK),SHADOW GRAY,TRIM1#
main71930-32020-E0×2i199508-199704
W(LOCK),OAK,TRIM4#
main71930-32020-J0×2i199508-199704
W(LOCK),DK.BLUE,TRIM8#
main71931-12040-B0×2i199206-199505
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-12040-J0×2i199206-199508
W/O(LOCK),DARK BLUE,TRIM8#
main71931-12040-K0×2i199206-199505
W/O(LOCK),TAUPE,TRIM9#
main71931-12060-B0×2i199206-199508
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-12060-J0×2i199206-199508
W/O(LOCK),DARK BLUE,TRIM8#
main71931-12060-K0×2i199206-199508
W/O(LOCK),TAUPE,TRIM9#
main71931-32020-B0×2i199508-199704
W/O(LOCK),SHADOW GRAY,TRIM1#
main71931-32020-E0×2i199508-199704
W/O(LOCK),OAK,TRIM4#
main71931-32020-J0×2i199508-199704
W/O(LOCK),DK.BLUE,TRIM8#
9008046007
main90080-46007
9046818071
main90468-18071

20 parts on this diagram · 6 diagrams in section
