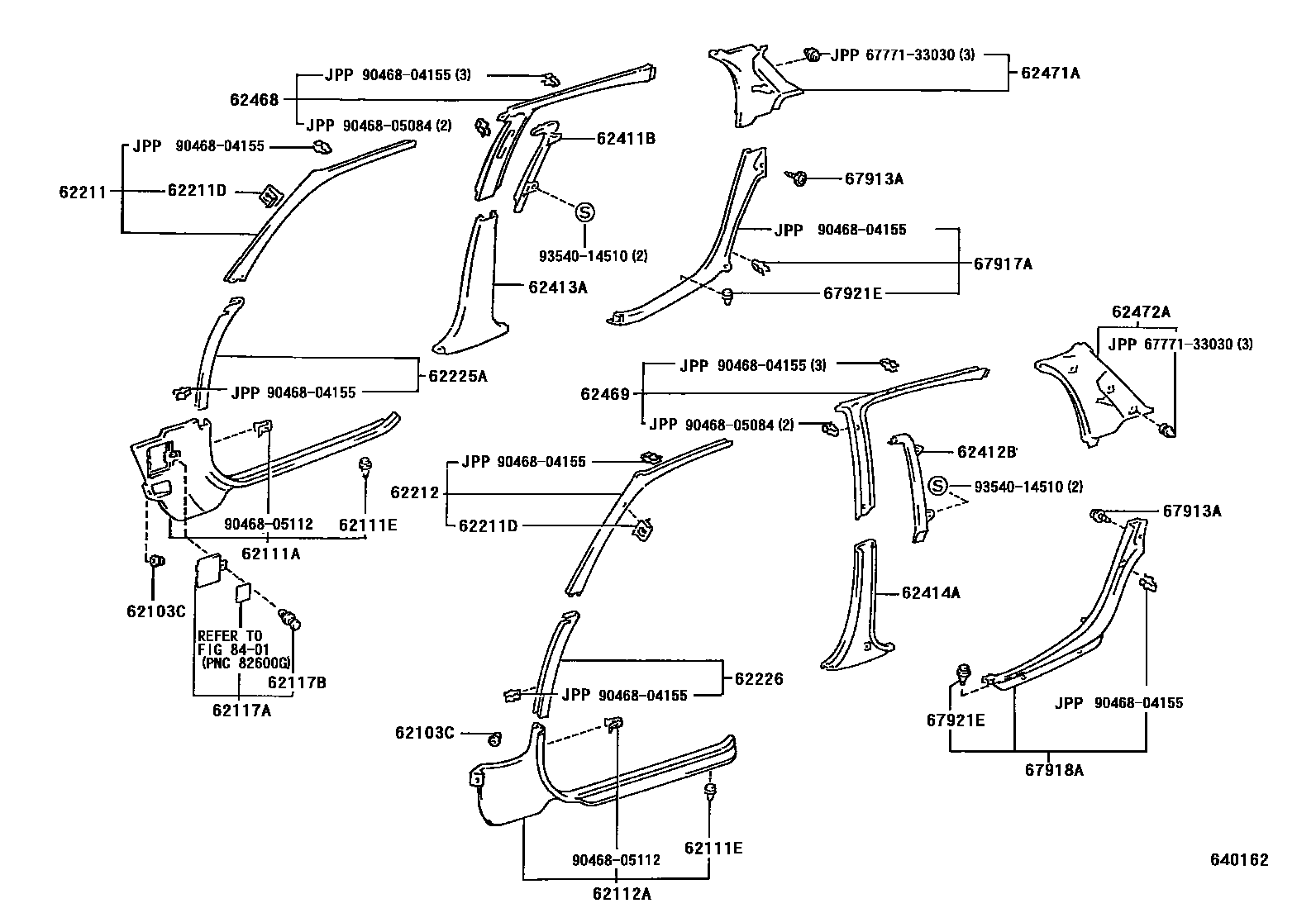

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62103CCLIP, COWL SIDE TRIM BOARD SET
62111ATRIM SUB-ASSY, COWL SIDE, RH
62111ERETAINER, COWL SIDE TRIM
62112ATRIM SUB-ASSY, COWL SIDE, LH
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62211GARNISH, FRONT PILLAR, RH
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
62225AGARNISH, FRONT PILLAR, LOWER RH
62226GARNISH, FRONT PILLAR, LOWER LH
62411BGARNISH, CENTER PILLAR, UPPER RH
62412BGARNISH, CENTER PILLAR, UPPER LH
62413AGARNISH, CENTER PILLAR, LOWER RH
62414AGARNISH, CENTER PILLAR, LOWER LH
62468GARNISH, CENTER PILLAR, REAR RH
SHADOW GRAY,TRIM1#
OAK,TRIM4#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
62469GARNISH, CENTER PILLAR, REAR LH
SHADOW GRAY,TRIM1#
OAK,TRIM4#
DARK BLUE,TRIM8#
TAUPE,TRIM9#
62471AGARNISH, ROOF SIDE, INNER RH
62472AGARNISH, ROOF SIDE, INNER LH
67913ACLIP(FOR SCUFF PLATE)
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
67921ERETAINER, REAR DOOR SCUFF PLATE
8401
6777133030WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-33030
9046804155
main90468-04155
9046805084
main90468-05084
9046805112
main90468-05112
9354014510
main93540-14510
29 parts on this diagram · 2 diagrams in section
