Toyota COROLLA JPP151 — FLOOR INSULATOR

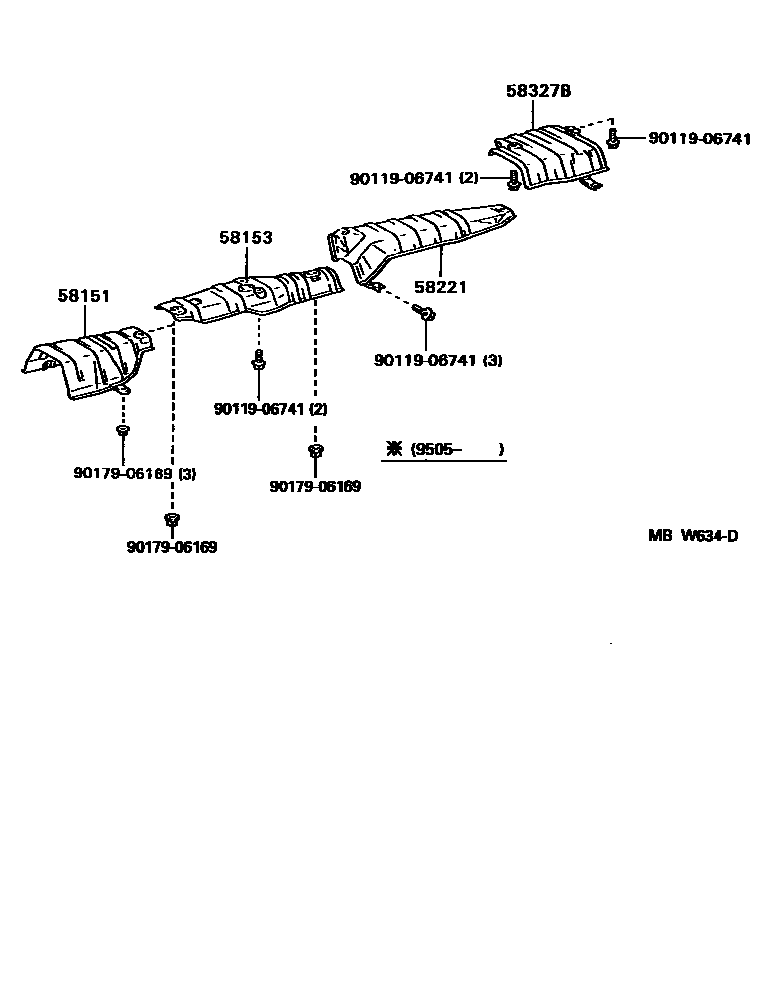

Parts diagram

58151INSULATOR, FRONT FLOOR HEAT, NO.1

58153INSULATOR, FRONT FLOOR HEAT, NO.2

58221INSULATOR, CENTER FLOOR HEAT, NO.1

58327BINSULATOR, MAIN MUFFLER HEAT

9011906741

9017906169

6 parts on this diagram · 1 diagram in section

FLOOR INSULATOR for Toyota COROLLA JPP151

This section contains 6 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota COROLLA JPP151. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, CENTER FLOOR HEAT, NO.1, INSULATOR, MAIN MUFFLER HEAT.
