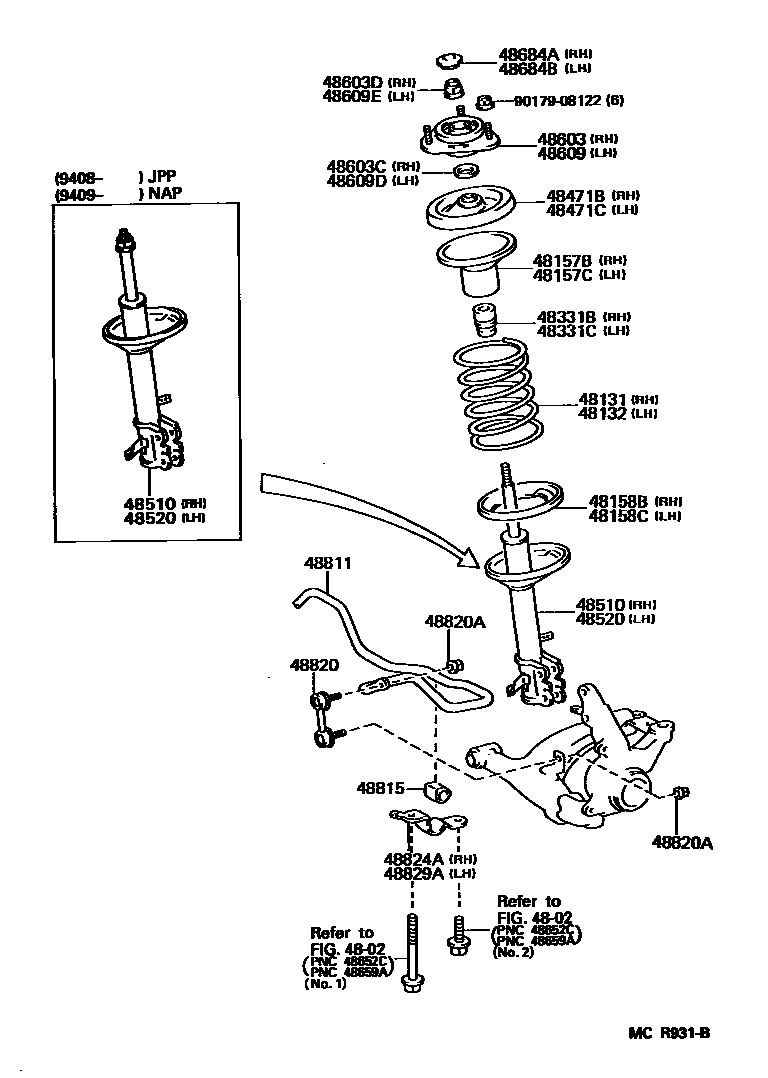

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4802

48131SPRING, FRONT COIL, RH

main48131-1K380iAE102..JPP..5F;AE101..JPP..3FC199206-199408

W(AIR CONDITIONER)

main48131-1K400iAE102..JPP..E199206-199408

W(AIR CONDITIONER)

main48131-1K530iAE101..JPP..5F199206-199408

main48131-1K540iAE102..JPP..4FC..N199206-199408

W(AIR CONDITIONER)

main48131-1L270iAE101..JPP..5F199408

W(AIR CONDITIONER)

main48131-1L290iAE102..JPP..4FC..N199408

W(AIR CONDITIONER)

main48131-1L320iAE102..JPP..4FC..N199408

W(AIR CONDITIONER)

main48131-1L320iAE102..JPP..E199408-199508

main48131-1L540iAE101..JPP..5F199408

48132SPRING, FRONT COIL, LH

main48131-1K380iAE101..JPP..5F199206-199408

main48131-1K400iAE102..JPP..5F;AE101..JPP..3FC199206-199408

W(AIR CONDITIONER)

main48131-1K540iAE102..JPP..5F;AE101..JPP..3FC199206-199408

W(AIR CONDITIONER)

main48131-1K790iAE102..JPP..E199206-199408

W(AIR CONDITIONER)

main48131-1L270iAE101..JPP..5F199408

main48131-1L290iAE101..JPP..5F199408

W(AIR CONDITIONER)

main48131-1L320iAE102..JPP..4FC..N199408

W(AIR CONDITIONER)

main48131-1L340iAE102..JPP..4FC..N199408

W(AIR CONDITIONER)

main48131-1L340iAE102..JPP..E199408-199508

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-12060iAE10#..JPP199206-199508

main48157-12070iAE10#..JPP199508

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-12060iAE10#..JPP199206-199508

main48157-12070iAE10#..JPP199508

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-12030iAE10#..JPP199401-199508

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-12030iAE10#..JPP199401-199508

48331BBUMPER, FRONT SPRING, RH

main48331-12120iAE10#..JPP199206-199508

main48331-12140iAE10#..JPP199508

48331CBUMPER, FRONT SPRING, LH

main48331-12120iAE10#..JPP199206-199508

main48331-12140iAE10#..JPP199508

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-01020iAE10#..JPP199508

(L)

main48044-12090iAE10#..JPP199206-199505

(J)

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-01020iAE10#..JPP199508

(L)

main48044-12090iAE10#..JPP199206-199505

(J)

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-02030iAE10#..JPP199206-199408

DELCO

main48510-09140iAE10#..JPP199408-199704

main48510-12870iAE10#..JPP199206-199408

KAYABA

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-02030iAE10#..JPP199206-199408

DELCO

main48520-09110iAE10#..JPP199408-199704

main48520-12740iAE10#..JPP199206-199408

KAYABA

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-12270iAE10#..JPP199206-199508

sub48609-12330

main48609-12330iAE10#..JPP199508

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iAE10#..JPP199206

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main94182-11400iAE10#..JPP199206

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-12270iAE10#..JPP199206-199508

sub48609-12330

main48609-12330iAE10#..JPP199508

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iAE10#..JPP199206

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main94182-11400iAE10#..JPP199206

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-12070iAE10#..JPP199602

main48684-32010iAE10#..JPP199206-199602

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-12070iAE10#..JPP199602

main48684-32010iAE10#..JPP199206-199602

48811BAR, STABILIZER, FRONT

main48811-12720iAE102..JPP199206

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-12220iAE102..JPP199206

48820LINK ASSY, FRONT STABILIZER

main48820-33010iAE102..JPP199206

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10183iAE102..JPP199206

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-12130iAE102..JPP199206-199505

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48829-12060iAE102..JPP199206-199505

9017908122

main90179-08122

28 parts on this diagram · 2 diagrams in section
