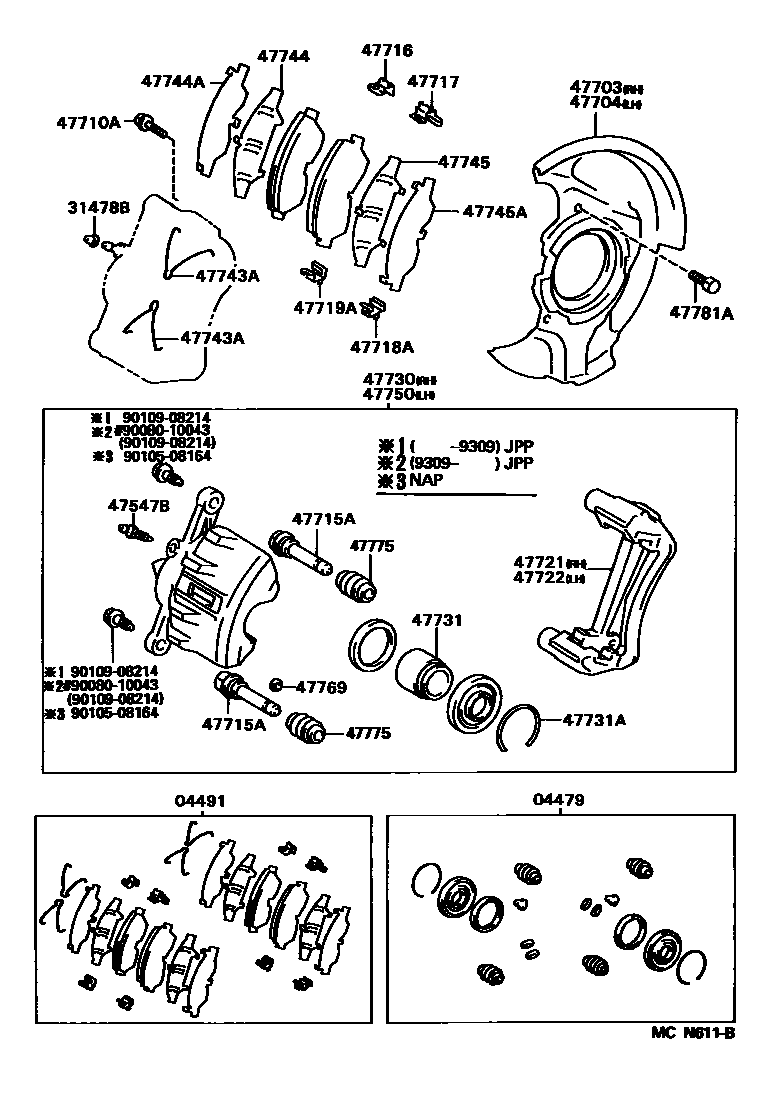

FRONT DISC BRAKE CALIPER & DUST COVER
04479CYLINDER KIT, DISC BRAKE, FRONT
04491PAD KIT, DISC BRAKE, FRONT
sub04465-12110
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
(J)
47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX25.8-19.5
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
(L),SUB
(L),MAIN
(J),SUB
(J),MAIN
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
(L)
(J)
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
(L)
(J)
47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
(L)
(J)
47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
(L)
(J)
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
(L)
(J)
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
(L)
(J)
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
(L)
(L)
(J)
47731PISTON, FRONT DISC BRAKE
(L)
(J)
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
(L)
(J)
47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
(L)
(J)
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
(L)
(J)
47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
(L)
(J)
47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
(L)
(J)
47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)
(L)
(L)
(J)
47750CYLINDER ASSY, DISC BRAKE, LH
(L)
(L)
(J)
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
(L)
(J)
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
9008010043
main90080-10043
9010508164
main90105-08164
9010908214
main90109-08214
29 parts on this diagram · 2 diagrams in section
