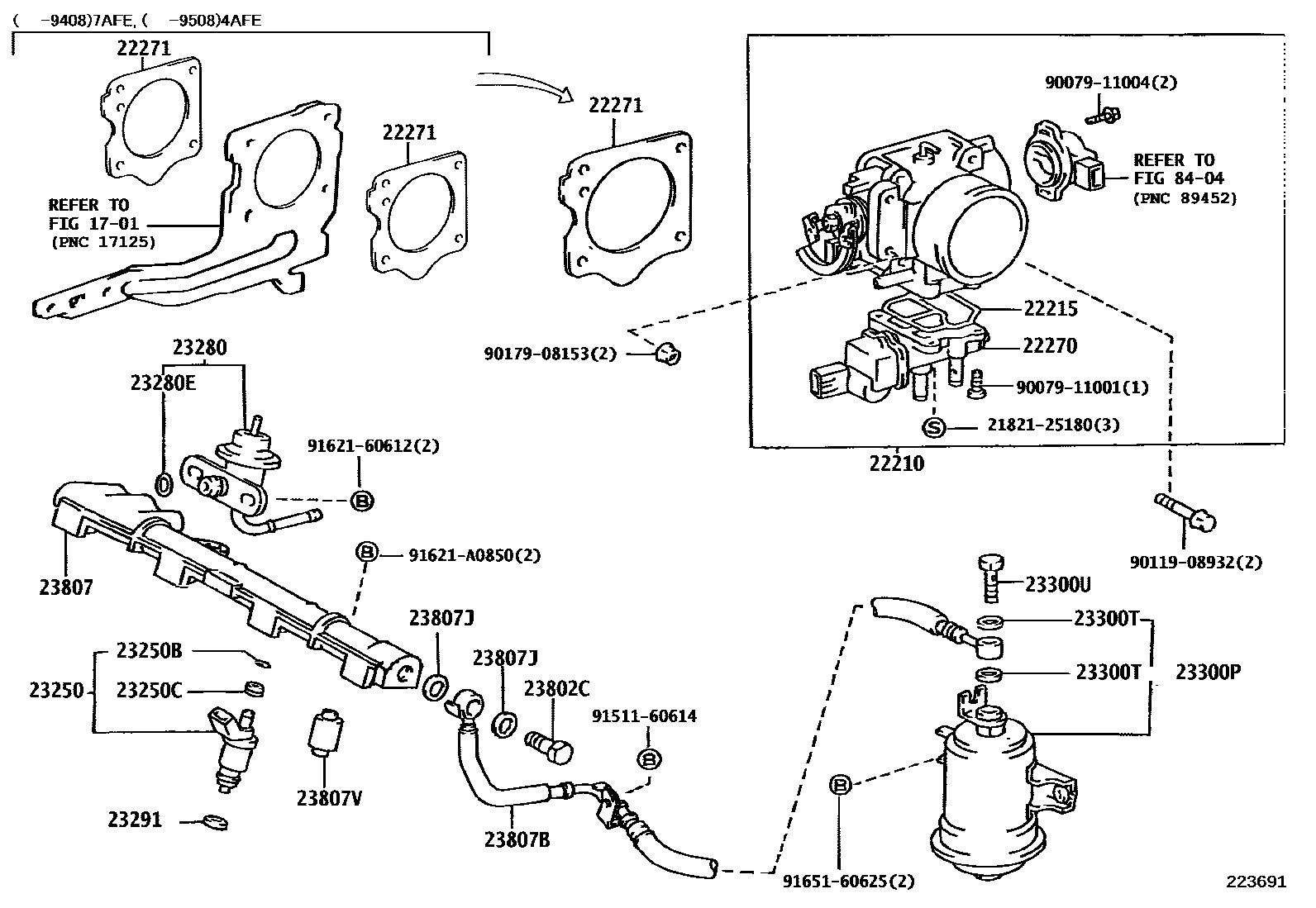

FUEL INJECTION SYSTEM
1701
22210BODY ASSY, THROTTLE
CALIFORNIA SPEC
22215GASKET, THROTTLE BODY COVER
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23300PFILTER, FUEL(FOR EFI)
BRAZIL SPEC
FINLAND OR DENMARK SPEC
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23807PIPE SUB-ASSY, FUEL DELIVERY
sub23814-15051
23807BHOSE, FUEL DELIVERY PIPE
CALIFORNIA SPEC
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
9007911001
main90079-11001
9007911004
main90079-11004
9011908932
main90119-08932
9017908153
main90179-08153
9151160614
main91511-60614
9162160612
main91621-60612
91621A0850
main91621-A0850
9165160625
main91651-60625
29 parts on this diagram · 2 diagrams in section
