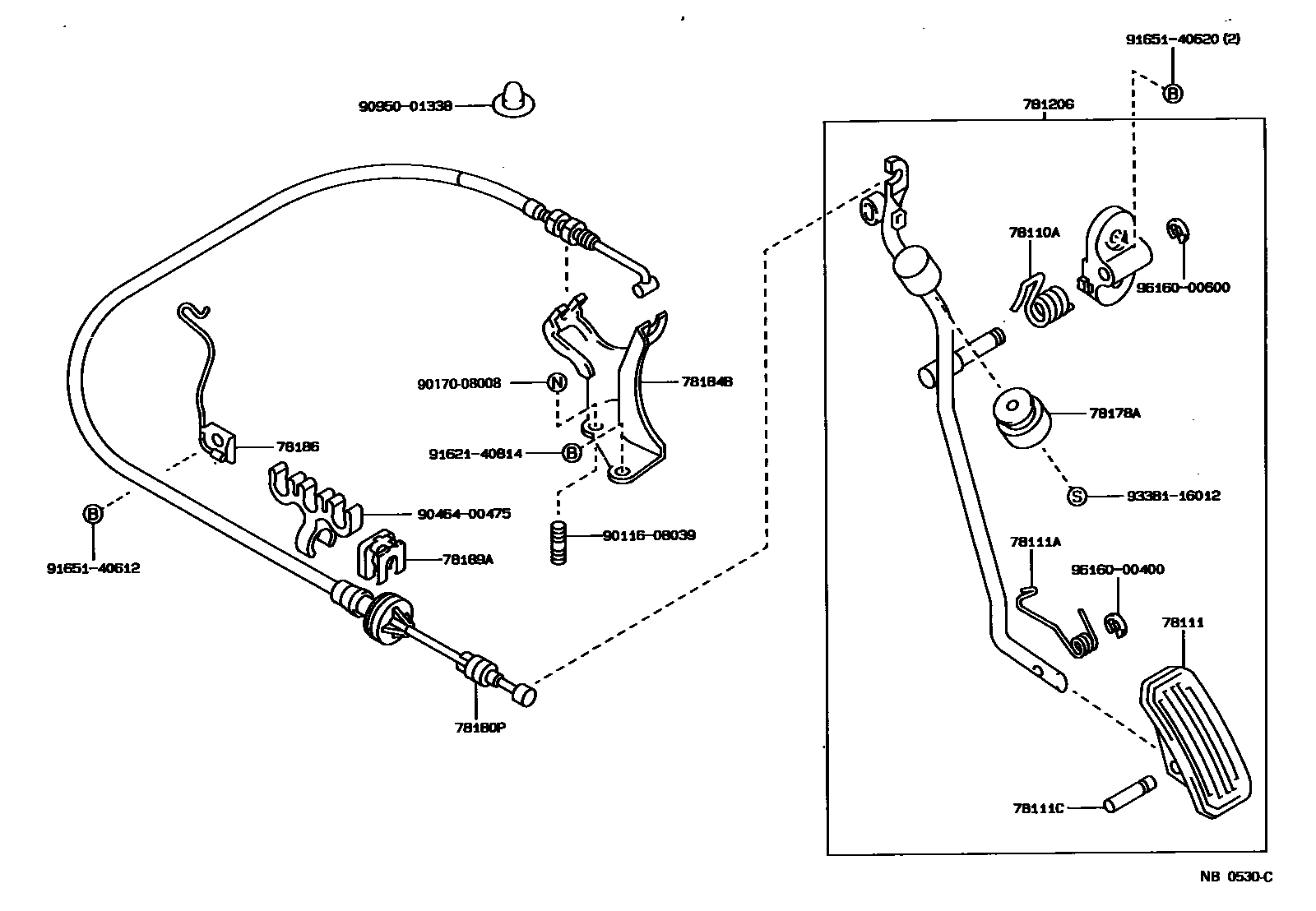

ACCELERATOR LINK

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18025iAE9#..ATM198708-199206

main90508-26036iAE9#..5F198708-199206

78111PEDAL, ACCELERATOR

main78111-32010iAE9#198708-199206

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-20056iAE9#198708-199206

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAE9#198708-199206

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12090iAE9#..5F198708-199206

main78120-12100iAE9#..ATM198708-199206

78178ADAMPER, ACCELRATOR PEDAL ROD DYNAMIC

main78178-12030iAE9#198708-199206

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-1A010iAE92198708-198908

main78180-1A230iAE95198802-198908

main78180-1A350iAE9#198908-199206

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12230iAE92198708-198908

main78184-12250iAE9#..EFI198802-199206

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12230iAE92198708-198908

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-12030iAE9#198708-199206

9011608039

main90116-08039

9017008008

main90170-08008

9046400475

main90464-00475

9095001338

main90950-01338

9162140814

main91621-40814

9165140612

main91651-40612

9165140620

main91651-40620

9338116012

main93381-16012

9616000400

main96160-00400

9616000600

main96160-00600

20 parts on this diagram · 1 diagram in section
