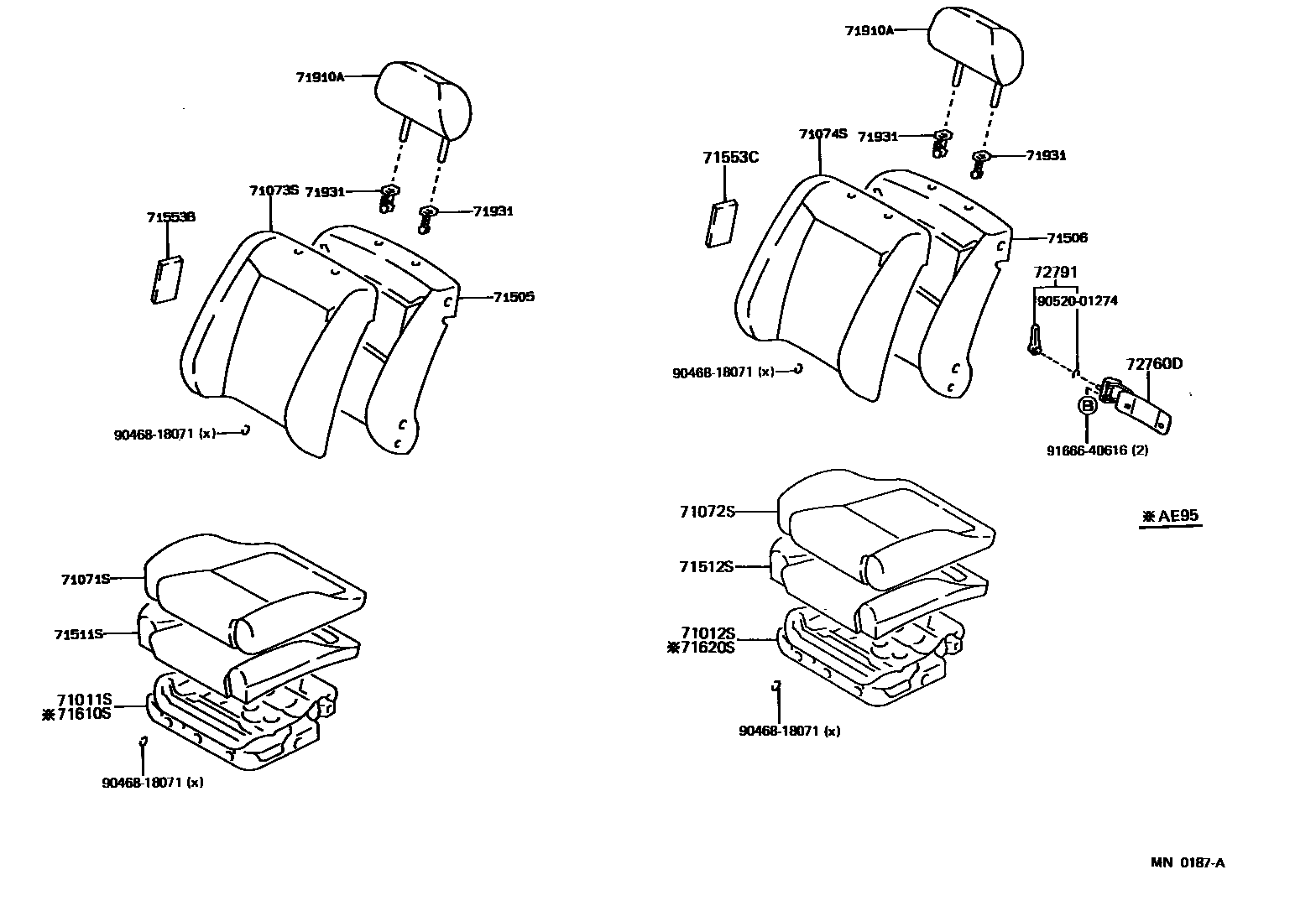

FRONT SEAT & SEAT TRACK

0001 1 0002 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-12270iAE92..CBR;AE92..CND..EFI198708-199206

main71011-12380iAE92..USA198908-199206

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71011-12270iAE92..CBR;AE92..CND..EFI198708-199206

main71012-12200iAE92..USA198908-199206

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-13220-03iAE92..WG..USA198908-199008

SHADOW GRAY,TRIM1#

main71071-13220-04iAE92..WG..USA198908-199206

DARK BLUE,TRIM4#

main71071-13220-06iAE92..WG..USA198908-199206

BROWN,TRIM4#

main71071-1H160-02iAE92..LE198708-198908

MAROON,TRIM3#

main71071-1H160-03iAE92..LE198708-198908

SHADOW GRAY,TRIM1#

main71071-1H160-04iAE92..LE198708-198908

BLUE,TRIM8#

main71071-1H160-05iAE92..LE198708-198908

DARK BEIGE,TRIM4#

main71071-1H161-02iAE92..LE..CND198908-199206

MAROON,TRIM3#

main71071-1H161-03iAE92..LE..CND198908-199206

SHADOW GRAY,TRIM1#

main71071-1H161-04iAE92..LE..CND198908-199206

DARK BLUE,TRIM8#

main71071-1H161-06iAE92..LE..CND198908-199206

BROWN,TRIM4#

main71071-1H290-02iAE92..SED..DX..CND; AE92..SED..DX..USA198708-198808

MAROON,TRIM3#; W(FULL FABRIC SEAT),MAROON,TRIM3#

main71071-1H290-03iAE92..DX..CND; AE92..DX..USA198708-198808

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71071-1H290-04iAE92..DX..CND; AE92..DX..USA198708-198808

BLUE,TRIM8#; W(FULL FABRIC SEAT),BLUE,TRIM8#

main71071-1H290-05iAE92..DX..CND; AE92..DX..USA198708-198808

DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

main71071-1H360-03iAE92..DX..USA198708-198908

SHADOW GRAY,TRIM1#

main71071-1H360-04iAE92..DX..USA198708-198908

DARK BLUE,TRIM8#

main71071-1H360-05iAE92..DX..USA198708-198908

DARK BEIGE,TRIM4#

main71071-1H620-03iAE95..SR5198802-198908

SHADOW GRAY,TRIM1#

main71071-1H620-04iAE95..SR5198802-198908

DARK BLUE,TRIM8#

main71071-1H620-05iAE95..SR5198802-198908

DARK BEIGE,TRIM4#

main71071-1H621-03iAE95..SR5198908-199009

SHADOW GRAY,TRIM1#

main71071-1H621-04iAE95..SR5198908-199009

DARK BLUE,TRIM8#

main71071-1H621-06iAE95..SR5198908-199009

BROWN,TRIM4#

main71071-1H690-03iAE95..WG..DX;AE95..SED..USA198802-198908

SHADOW GRAY,TRIM1#

main71071-1H690-04iAE95..WG..DX..USA198908-199009

DARK BLUE,TRIM8#

main71071-1H690-05iAE95..WG..DX;AE95..SED..USA198802-198908

DARK BEIGE,TRIM4#

main71071-1H690-06iAE95..WG..DX..USA198908-199009

BROWN,TRIM4#

main71071-1H730-02iAE92..SED..DX..USA198903-198908

W(FULL FABRIC SEAT),MAROON,TRIM3#

main71071-1H730-03iAE92..DX..USA198903-198908

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71071-1H730-04iAE92..SED..DX..USA; AE92..WG..USA198901-198903

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71071-1H730-05iAE92..SED..DX..USA; AE92..WG..USA198901-198903

W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

main71071-1H730-06iAE92..DX..CND198908-199008

BROWN,TRIM4#

main71071-1H731-02iAE92..SED..DX..CND199008-199206

MAROON,TRIM3#

main71071-1H731-03iAE92..DX..CND199008-199206

SHADOW GRAY,TRIM1#

main71071-1H731-04iAE92..DX..CND199008-199206

DARK BLUE,TRIM8#

main71071-1H731-06iAE92..DX..CND199008-199206

BROWN,TRIM4#

main71071-1H770-03iAE95..DX198802-198808

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71071-1H770-04iAE95..DX198802-198808

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71071-1H770-05iAE95..DX198802-198808

W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

main71071-1H771-02iAE95..SED..CND; AE95..SED..USA198808-198908

MAROON,TRIM3#; W(FULL FABRIC SEAT),MAROON,TRIM3#

main71071-1H771-03iAE95..SED..CND; AE95..WG..DX;AE95..SED..USA198808-198908

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71071-1H771-04iAE95..DX..CND;AE95..SED..USA; AE95..WG..DX..USA198908-199008

DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71071-1H771-05iAE95..SED..CND; AE95..WG..DX;AE95..SED..USA198808-198908

DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

main71071-1H771-06iAE95..DX..CND;AE95..SED..USA; AE95..WG..DX..USA198908-199008

BROWN,TRIM4#; W(FULL FABRIC SEAT),BROWN,TRIM4#

main71071-1H772-03iAE95..DX..CND; AE95..DX..USA199008-199009

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71071-1H772-04iAE95..DX..CND; AE95..DX..USA199008-199009

DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71071-1H772-06iAE95..DX..CND; AE95..DX..USA199008-199009

BROWN,TRIM4#; W(FULL FABRIC SEAT),BROWN,TRIM4#

main71071-1H820-02iAE92..STD199008-199206

MAROON,TRIM3#

main71071-1H820-03iAE92..SED..DX..USA; AE92..WG..USA198908-199008

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71071-1H820-04iAE92..SED..(DX,STD)..USA; AE92..WG..USA198908-199008

DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71071-1H820-06iAE92..SED..(DX,STD)..USA; AE92..WG..USA198908-199008

BROWN,TRIM4#; W(FULL FABRIC SEAT),BROWN,TRIM4#

main71071-1H850-02iAE92..LE..USA198908-199206

MAROON,TRIM3#

main71071-1H850-03iAE92..LE..USA199008-199206

SHADOW GRAY,TRIM1#

main71071-1H850-04iAE92..LE..USA198908-199206

DARK BLUE,TRIM8#

main71071-1H850-06iAE92..LE..USA198908-199206

BROWN,TRIM4#

main71071-1K350-02iAE92..SED..DX..USA199008-199206

MAROON,TRIM3#

main71071-1K350-03iAE92..SED..DX..USA; AE92..WG..USA199008-199206

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71071-1K350-04iAE92..SED..DX..USA; AE92..WG..USA199008-199206

DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71071-1K350-06iAE92..SED..DX..USA; AE92..WG..USA199008-199206

BROWN,TRIM4#; W(FULL FABRIC SEAT),BROWN,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-13230-03iAE92..WG..USA198908-199206

SHADOW GRAY,TRIM1#

main71071-13230-04iAE92..WG..USA198908-199206

DARK BLUE,TRIM8#

main71071-13230-06iAE92..WG..USA198908-199206

BROWN,TRIM4#

main71071-1H220-02iAE92..LE198708-198908

MAROON,TRIM3#

main71071-1H220-03iAE92..LE198708-198908

SHADOW GRAY,TRIM1#

main71071-1H220-04iAE92..LE198708-198908

BLUE,TRIM8#

main71071-1H220-05iAE92..LE198708-198908

DARK BEIGE,TRIM4#

main71071-1H221-02iAE92..LE..CND198908-199206

MAROON,TRIM3#

main71071-1H221-03iAE92..LE..CND198908-199206

SHADOW GRAY,TRIM1#

main71071-1H221-04iAE92..LE..CND198908-199206

DARK BLUE,TRIM8#

main71071-1H221-06iAE92..LE..CND198908-199206

BROWN,TRIM4#

main71071-1H290-02iAE92..SED..DX..CND; AE92..SED..DX..USA198708-198808

MAROON,TRIM3#; W(FULL FABRIC SEAT),MAROON,TRIM3#

main71071-1H290-03iAE92..DX..CND; AE92..DX..USA198708-198808

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71071-1H290-04iAE92..DX..CND; AE92..DX..USA198708-198808

BLUE,TRIM8#; W(FULL FABRIC SEAT),BLUE,TRIM8#

main71071-1H290-05iAE92..DX..CND; AE92..DX..USA198708-198808

DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

main71071-1H360-03iAE92..DX..USA198708-198908

SHADOW GRAY,TRIM1#

main71071-1H360-04iAE92..DX..USA198708-198908

DARK BLUE,TRIM8#

main71071-1H360-05iAE92..DX..USA198708-198908

DARK BEIGE,TRIM4#

main71071-1H620-03iAE95..SR5198802-198908

SHADOW GRAY,TRIM1#

main71071-1H620-04iAE95..SR5198802-198908

DARK BLUE,TRIM8#

main71071-1H620-05iAE95..SR5198802-198908

DARK BEIGE,TRIM4#

main71071-1H690-03iAE95..WG..DX..USA198908-199009

SHADOW GRAY,TRIM1#

main71071-1H690-04iAE95..WG..DX;AE95..SED..USA198802-198908

DARK BLUE,TRIM8#

main71071-1H690-05iAE95..WG..DX;AE95..SED..USA198802-198908

DARK BEIGE,TRIM4#

main71071-1H690-06iAE95..WG..DX..USA198908-199009

BROWN,TRIM4#

main71071-1H730-02iAE92..SED..DX..USA198808-198901

W(FULL FABRIC SEAT),MAROON,TRIM3#

main71071-1H730-03iAE92..SED..DX..USA; AE92..WG..USA198901-198903

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71071-1H730-04iAE92..DX..CND198808-199008

DARK BLUE,TRIM8#

main71071-1H730-05iAE92..DX..CND198808-198908

DARK BEIGE,TRIM4#

main71071-1H730-06iAE92..DX..CND198908-199008

BROWN,TRIM4#

main71071-1H731-02iAE92..SED..DX..CND199008-199206

MAROON,TRIM3#

main71071-1H731-03iAE92..DX..CND199008-199206

SHADOW GRAY,TRIM1#

main71071-1H731-04iAE92..DX..CND199008-199206

DARK BLUE,TRIM8#

main71071-1H731-06iAE92..DX..CND199008-199206

BROWN,TRIM4#

main71071-1H770-03iAE95..DX198802-198808

W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71071-1H770-04iAE95..DX198802-198808

W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71071-1H770-05iAE95..DX198802-198808

W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

main71071-1H771-02iAE95..SED..CND; AE95..SED..USA198808-198908

MAROON,TRIM3#; W(FULL FABRIC SEAT),MAROON,TRIM3#

main71071-1H771-03iAE95..DX..CND;AE95..SED..USA; AE95..WG..DX..USA198908-199008

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71071-1H771-04iAE95..SED..CND; AE95..WG..DX;AE95..SED..USA198808-198908

DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71071-1H771-05iAE95..SED..CND; AE95..WG..DX;AE95..SED..USA198808-198908

DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

main71071-1H771-06iAE95..DX..CND;AE95..SED..USA; AE95..WG..DX..USA198908-199008

BROWN,TRIM4#; W(FULL FABRIC SEAT),BROWN,TRIM4#

main71071-1H772-03iAE95..DX..CND; AE95..DX..USA199008-199009

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71071-1H772-04iAE95..DX..CND; AE95..DX..USA199008-199009

DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71071-1H772-06iAE95..DX..CND; AE95..DX..USA199008-199009

BROWN,TRIM4#; W(FULL FABRIC SEAT),BROWN,TRIM4#

main71071-1H840-02iAE92..STD199008-199206

MAROON,TRIM3#

main71071-1H840-03iAE92..SED..DX..USA; AE92..WG..USA198908-199008

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71071-1H840-04iAE92..SED..(DX,STD)..USA; AE92..WG..USA198908-199008

DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71071-1H840-06iAE92..SED..(DX,STD)..USA; AE92..WG..USA198908-199008

BROWN,TRIM4#; W(FULL FABRIC SEAT),BROWN,TRIM4#

main71071-1K060-02iAE92..LE..USA198908-199206

MAROON,TRIM3#

main71071-1K060-03iAE92..LE..USA199008-199206

SHADOW GRAY,TRIM1#

main71071-1K060-04iAE92..LE..USA198908-199206

DARK BLUE,TRIM8#

main71071-1K060-06iAE92..LE..USA198908-199206

BROWN,TRIM4#

main71071-1K090-03iAE95..SR5198908-199009

SHADOW GRAY,TRIM1#

main71071-1K090-04iAE95..SR5198908-199009

DARK BLUE,TRIM8#

main71071-1K090-06iAE95..SR5198908-199009

BROWN,TRIM4#

main71071-1K360-02iAE92..4FC..USA199202-199206

DX PACAGE,MAROON,TRIM3#

main71071-1K360-03iAE92..SED..DX..USA; AE92..WG..USA199008-199206

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71071-1K360-04iAE92..SED..DX..USA; AE92..WG..USA199008-199206

DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71071-1K360-06iAE92..4FC..USA199202-199206

DX PACAGE,BROWN,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1H220-02iAE92..LE198708-198908

MAROON,TRIM3#

main71073-1H220-03iAE92..LE198708-198908

SHADOW GRAY,TRIM1#

main71073-1H220-04iAE92..LE198708-198908

BLUE,TRIM8#

main71073-1H220-05iAE92..LE198708-198908

DARK BEIGE,TRIM4#

main71073-1H221-02iAE92..LE198908-199206

MAROON,TRIM3#

main71073-1H221-03iAE92..LE198908-199206

SHADOW GRAY,TRIM1#

main71073-1H221-04iAE92..LE198908-199206

DARK BLUE,TRIM8#

main71073-1H221-06iAE92..LE198908-199206

BROWN,TRIM4#

main71073-1H290-02iAE92..SED..DX..CND; AE92..SED..DX..USA198708-198808

MAROON,TRIM3#; W(FULL FABRIC SEAT),MAROON,TRIM3#

main71073-1H290-03iAE92..DX..CND; AE92..DX..USA198708-198808

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71073-1H290-04iAE92..DX..CND; AE92..DX..USA198708-198808

BLUE,TRIM8#; W(FULL FABRIC SEAT),BLUE,TRIM8#

main71073-1H290-05iAE95..DX198802-198808

W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

main71073-1H330-03iAE95..WG..DX;AE92..DX..USA;AE95..SED..USA198708-198908

SHADOW GRAY,TRIM1#

main71073-1H330-04iAE95..WG..DX;AE92..DX..USA;AE95..SED..USA198708-198908

DARK BLUE,TRIM8#

main71073-1H330-05iAE95..WG..DX;AE92..DX..USA;AE95..SED..USA198708-198908

DARK BEIGE,TRIM4#

main71073-1H330-06iAE9#..WG..DX..USA198908-199206

BROWN,TRIM4#

main71073-1H540-03iAE95..SR5198802-198908

SHADOW GRAY,TRIM1#

main71073-1H540-04iAE95..SR5198802-198908

DARK BLUE,TRIM8#

main71073-1H540-05iAE95..SR5198802-198908

DARK BEIGE,TRIM4#

main71073-1H541-03iAE95..SR5198908-199009

SHADOW GRAY,TRIM1#

main71073-1H541-04iAE95..SR5198908-199009

DARK BLUE,TRIM8#

main71073-1H541-05iAE95..SR5198908-198912

BROWN,TRIM4#

main71073-1H541-06iAE95..SR5198912-199009

BROWN,TRIM4#

main71073-1H650-02iAE9#..SED..DX..CND; AE95..SED..USA198808-198908

MAROON,TRIM3#; W(FULL FABRIC SEAT),MAROON,TRIM3#

main71073-1H650-03iAE92..DX..CND;AE95..SED..CND; AE95..WG..DX;AE95..SED..USA198808-198908

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71073-1H650-04iAE9#..DX..CND;AE9#..SED..(DX,STD)..USA; AE95..WG..DX..USA198908-199008

DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71073-1H650-05iAE92..SED..DX..USA; AE92..WG..USA198901-198903

W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

main71073-1H650-06iAE9#..DX..CND;AE9#..SED..(DX,STD)..USA; AE92..WG..USA; AE95..WG..DX..USA198908-199008

BROWN,TRIM4#; W(FULL FABRIC SEAT),BROWN,TRIM4#

main71073-1H860-03iAE92..LE..CND198909-198910

25TH ANIVERSARY,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71073-1H870-02iAE92..4FC..USA199202-199206

DX PACAGE,MAROON,TRIM3#

main71073-1H870-03iAE9#..DX..CND;AE92..SED..DX..USA; AE92..WG..USA199008-199206

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71073-1H870-04iAE92..4FC..USA199202-199206

DX PACAGE,DARK BLUE,TRIM8#

main71073-1H870-06iAE92..4FC..USA199202-199206

DX PACAGE,BROWN,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-1H221-02iAE92..LE198908-199206

MAROON,TRIM3#

main71073-1H221-03iAE92..LE198908-199206

SHADOW GRAY,TRIM1#

main71073-1H221-04iAE92..LE198908-199206

DARK BLUE,TRIM8#

main71073-1H221-06iAE92..LE198908-199206

BROWN,TRIM4#

main71073-1H860-03iAE92..LE..CND198909-198910

25TH ANIVERSARY,SHADOW GRAY,SHADOW GRAY,TRIM1#

main71074-1E180-02iAE92..LE198708-198908

MAROON,TRIM3#

main71074-1E180-03iAE92..LE198708-198908

SHADOW GRAY,TRIM1#

main71074-1E180-04iAE92..LE198708-198908

BLUE,TRIM8#

main71074-1E180-05iAE92..LE198708-198908

DARK BEIGE,TRIM4#

main71074-1E250-02iAE92..SED..DX..CND; AE92..SED..DX..USA198708-198808

MAROON,TRIM3#; W(FULL FABRIC SEAT),MAROON,TRIM3#

main71074-1E250-03iAE92..DX..CND; AE92..DX..USA198708-198808

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71074-1E250-04iAE92..DX..CND; AE92..DX..USA198708-198808

BLUE,TRIM8#; W(FULL FABRIC SEAT),BLUE,TRIM8#

main71074-1E250-05iAE92..DX..CND; AE92..DX..USA198708-198808

DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

main71074-1E300-03iAE9#..WG..DX..USA198908-199206

SHADOW GRAY,TRIM1#

main71074-1E300-04iAE95..WG..DX;AE92..DX..USA;AE95..SED..USA198708-198908

DARK BLUE,TRIM8#

main71074-1E300-05iAE95..WG..DX;AE92..DX..USA;AE95..SED..USA198708-198908

DARK BEIGE,TRIM4#

main71074-1E300-06iAE9#..WG..DX..USA198908-199206

BROWN,TRIM4#

main71074-1E500-03iAE95..SR5198802-198908

SHADOW GRAY,TRIM1#

main71074-1E500-04iAE95..SR5198802-198908

DARK BLUE,TRIM8#

main71074-1E500-05iAE95..SR5198802-198908

DARK BEIGE,TRIM4#

main71074-1E501-03iAE95..SR5198908-199009

SHADOW GRAY,TRIM1#

main71074-1E501-04iAE95..SR5198908-199009

DARK BLUEE,TRIM8#

main71074-1E501-06iAE95..SR5198908-199009

BROWN,TRIM4#

main71074-1E630-02iAE9#..SED..DX..CND; AE92..SED..DX..USA; AE95..SED..USA198808-198809

MAROON,TRIM3#; W(FULL FABRIC SEAT),MAROON,TRIM3#

main71074-1E630-03iAE92..DX..CND;AE95..SED..CND; AE95..WG..DX;AE95..SED..USA198808-198908

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71074-1E630-04iAE92..DX..CND;AE95..SED..CND; AE95..WG..DX;AE95..SED..USA198808-198908

DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71074-1E630-05iAE92..DX..CND;AE95..SED..CND; AE95..WG..DX;AE95..SED..USA198808-198905

DARK BEIGE,TRIM4#; W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

main71074-1E630-06iAE9#..DX..CND;AE9#..SED..(DX,STD)..USA; AE92..WG..USA; AE95..WG..DX..USA198908-199008

BROWN,TRIM4#; W(FULL FABRIC SEAT),BROWN,TRIM4#

main71074-1E850-02iAE92..SED..DX199008-199206

MAROON,TRIM3#

main71074-1E850-03iAE9#..DX..CND;AE92..SED..DX..USA; AE92..WG..USA199008-199206

SHADOW GRAY,TRIM1#; W(FULL FABRIC SEAT),SHADOW GRAY,TRIM1#

main71074-1E850-04iAE9#..DX..CND;AE92..SED..DX..USA; AE92..WG..USA199008-199206

DARK BLUE,TRIM8#; W(FULL FABRIC SEAT),DARK BLUE,TRIM8#

main71074-1E850-06iAE9#..DX..CND;AE92..SED..DX..USA; AE92..WG..USA199008-199206

BROWN,TRIM4#; W(FULL FABRIC SEAT),BROWN,TRIM4#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-12070iAE9#198708-199206

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71505-12070iAE9#..DX,STD;AE92..LE..EFI198708-199206

main71505-12080iAE95..SR5;AE92..LE..CBR198708-199009

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-12590iAE92..DX,STD198708-199206

main71511-12610iAE92..LE198708-199206

main71511-12670iAE95..DX198802-199009

main71511-12680iAE95..SR5198802-199009

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-12590iAE92..DX,STD198708-199206

main71511-12610iAE92..LE198708-199206

main71511-12670iAE95..DX198802-199009

main71511-12680iAE95..SR5198802-199009

71553BPAD, FRONT SEATBACK, B

main71553-12230×5iAE95..SR5198802-198908

main71553-12250iAE92..LE198708-198709

main71553-12260iAE92..LE198708-198908

45X115

71553CPAD, FRONT SEATBACK, C

main71553-12230×2iAE95..SR5198908-199009

95X140

main71553-12260iAE95..SR5198908-199009

45X115

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-12300iAE95198802-199009

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-12300iAE95198802-199009

71910AHEADREST ASSY, FRONT SEAT

main71910-12710-13×2iAE95..SR5198802-198908

SHADOW GRAY,TRIM1#

main71910-12710-14×2iAE95..SR5198802-198908

DARK BLUE,TRIM8#

main71910-12710-15×2iAE95..SR5198802-198908

DARK BEIGE,TRIM4#

main71910-12711-03×2iAE95..SR5198908-199009

SHADOW GRAY,TRIM1#

main71910-12711-04×2iAE95..SR5198908-199009

DARK BLUE,TRIM8#

main71910-12711-06×2iAE95..SR5198908-199009

BROWN,TRIM4#

main71910-12740-02×2iAE9#..SED..DX..CND; AE92..SED..DX..USA; AE95..SED..USA198808-198908

MAROON,TRIM3#; W(FABRIC SEAT),MAROON,TRIM3#

main71910-12740-03×2iAE92..DX..CND;AE95..SED..CND; AE95..WG..DX;AE95..SED..USA198808-198908

SHADOW GRAY,TRIM1#; W(FABRIC SEAT),SHADOW GRAY,TRIM1#

main71910-12740-04×2iAE92..DX..CND;AE95..SED..CND; AE95..WG..DX;AE95..SED..USA198808-198908

DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#

main71910-12740-05×2iAE92..DX..CND;AE95..SED..CND; AE92..DX..USA; AE95..WG..DX;AE95..SED..USA198808-198908

DARK BEIGE,TRIM4#; W(FABRIC SEAT),DARK BEIGE,TRIM4#

main71910-12740-06×2iAE9#..DX..CND;AE9#..SED..DX..USA; AE92..WG..USA; AE95..WG..DX..USA198908-199008

BROWN,TRIM4#; W(FABRIC SEAT),BROWN,TRIM4#

main71910-12741-02×2iAE92..SED..DX199008-199206

MAROON,TRIM3#

main71910-12741-03×2iAE92..DX..CND;AE92..SED..DX..USA; AE92..WG..USA199008-199206

SHADOW GRAY,TRIM1#; W(FABRIC SEAT),SHADOW GRAY,TRIM1#

main71910-12741-04×2iAE95..DX..USA199008-199009

W(FABRIC SEAT),DARK BLUE,TRIM8#

main71910-12741-06×2iAE92..DX..CND;AE92..SED..DX..USA; AE92..WG..USA199008-199206

BROWN,TRIM4#; W(FABRIC SEAT),BROWN,TRIM4#

main71910-12800-02×2iAE92..LE198708-198908

MAROON,TRIM3#

main71910-12800-03×2iAE92..LE198708-198908

SHADOW GRAY,TRIM1#

main71910-12800-04×2iAE92..LE198708-198908

BLUE,TRIM8#

main71910-12800-05×2iAE92..LE198708-198908

DARK BEIGE,TRIM4#

main71910-12801-02×2iAE92..LE198908-199205

MAROON,TRIM3#

main71910-12801-03×2iAE92..LE198908-199205

SHADOW GRAY,TRIM1#

main71910-12801-04×2iAE92..LE198908-199205

DARK BLUE,TRIM8#

main71910-12801-06×2iAE92..LE198908-199205

BROWN,TRIM4#

main71910-1A110-02×2iAE92..STD;AE92..SED..DX..USA..CBR198901-198909

MAROON,TRIM3#

main71910-1A110-03×2iAE95..WG..DX;AE92..DX..USA;AE95..SED..USA198708-198908

SHADOW GRAY,TRIM1#

main71910-1A110-04×2iAE95..WG..DX;AE92..DX..USA;AE95..SED..USA198708-198809

DARK BLUE,TRIM8#

main71910-1A110-05×2iAE95..WG..DX;AE92..DX..USA;AE95..SED..USA198708-198809

DARK BEIGE,TRIM4#

main71910-1A110-06×2iAE92..STD;AE9#..WG..DX..USA198908-198909

BROWN,TRIM4#

main71910-1A110-B0×2iAE9#..WG..DX..USA; AE92..STD198908-199008

SHADOW GRAY,TRIM1#

main71910-1A110-D0×2iAE92..STD198909-199206

MAROON,TRIM3#

main71910-1A110-E0×2iAE92..SED..DX..USA198903-198908

STD PACKAGE & W(FULL FABRIC SEAT),DARK BEIGE,TRIM4#

main71910-1A110-E1×2iAE92..STD;AE9#..WG..DX..USA198909-199206

BROWN,TRIM4#

main71910-1A110-J0×2iAE95..WG..DX;AE92..DX..USA;AE95..SED..USA198809-198908

DARK BLUE,TRIM8#

main71910-1A140-02×2iAE92..SED..DX..CND; AE92..SED..DX..USA198708-198808

MAROON,TRIM3#; W(FABRIC SEAT),MAROON,TRIM3#

main71910-1A140-03×2iAE92..DX..CND; AE92..DX..USA198708-198808

SHADOW GRAY,TRIM1#; W(FABRIC SEAT),SHADOW GRAY,TRIM1#

main71910-1A140-04×2iAE92..DX..CND; AE92..DX..USA198708-198808

DARK BLUE,TRIM8#; W(FABRIC SEAT),DARK BLUE,TRIM8#

main71910-1A140-05×2iAE92..DX..CND; AE92..DX..USA198708-198808

DARK BEIGE,TRIM4#; W(FABRIC SEAT),DARK BEIGE,TRIM4#

71931SUPPORT, FRONT SEAT HEADREST

main71930-12050-02×2iAE9#..SED198708-199206

W(LOCK),MAROON,TRIM3#

main71930-12050-03×2iAE9#198708-199206

W(LOCK),SHADOW GRAY,TRIM1#

main71930-12050-04×2iAE9#198708-199206

W(LOCK),DARK BLUE,TRIM8#

main71930-12050-05×2iAE9#198708-198908

W(LOCK),DARK BEIGE,TRIM4#

main71930-12050-16×2iAE9#198908-199206

W(LOCK),BROWN,TRIM4#

main71931-12010-02×2iAE9#..SED198708-199206

W/O(LOCK),MAROON,TRIM3#

main71931-12010-03×2iAE9#198708-199206

W/O(LOCK),SHADOW GRAY,TRIM1#

main71931-12010-04×2iAE9#198708-199206

W/O(LOCK),DARK BLUE,TRIM8#

main71931-12010-05×2iAE9#198708-198908

W/O(LOCK),DARK BEIGE,TRIM4#

main71931-12010-16×2iAE9#198908-199206

W/O(LOCK),BROWN,TRIM4#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-12090iAE95..SR5;AE92..LE..CBR198708-199009

72791LEVER, LUMBAR SUPPORT

main72791-20030-03iAE95..SR5;AE92..LE..CBR198708-199009

SHADOW GRAY,TRIM1#

main72791-20030-05iAE9#..LE,SR5198708-198908

DARK BEIGE,TRIM4#

main72791-20030-12iAE92..LE198708-198908

MAROON,TRIM3#

main72791-20030-14iAE95..SR5;AE92..LE..CBR198708-199009

DARK BLUE,TRIM8#

main72791-20030-26iAE95..SR5198908-199009

BROWN,TRIM4#

9046818071

main90468-18071

9052001274

main90520-01274

9166640616

main91666-40616

21 parts on this diagram · 2 diagrams in section
