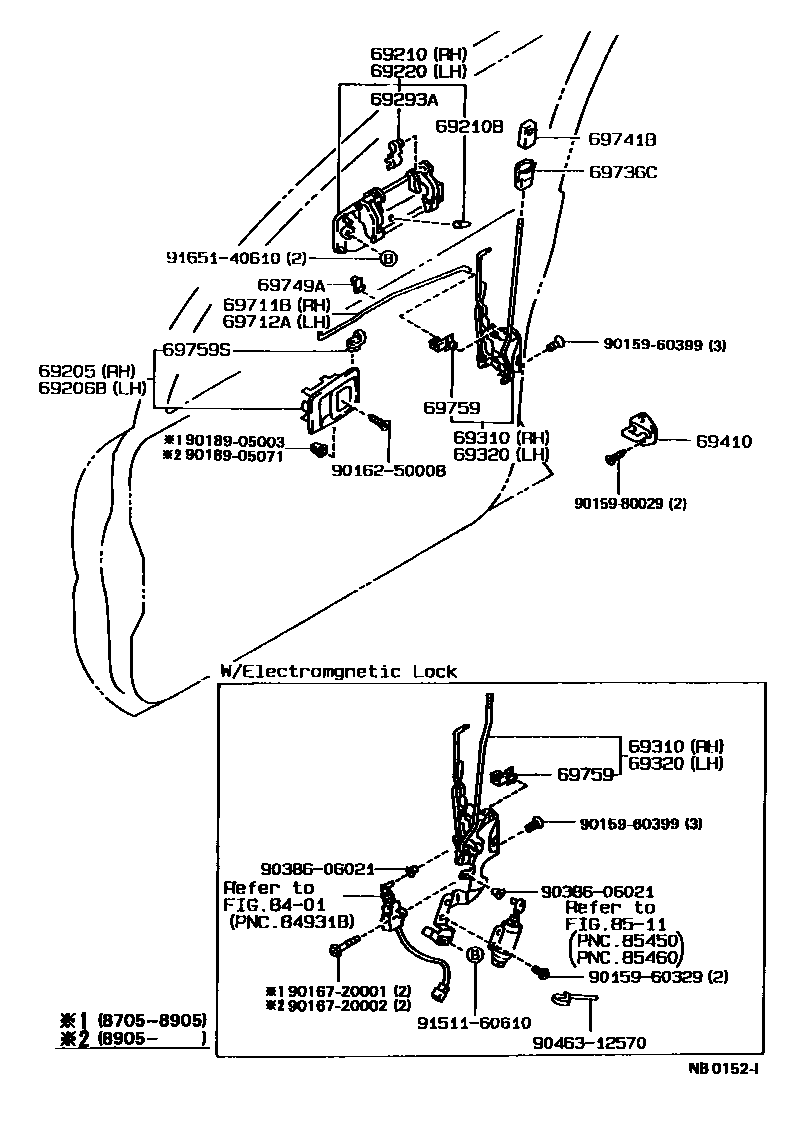

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
DX PACKAGE
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
DX PACKAGE
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69741BKNOB, FRONT DOOR LOCK CONTROL
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
LH,YELLOW
RH,BROWN
69759SSNAP, FRONT DOOR INSIDE HANDLE
RH
LH
8401
8511
9015960329
main90159-60329
9015960399
main90159-60399
9015980029
main90159-80029
9016250008
main90162-50008
9016720001
main90167-20001
9016720002
main90167-20002
9018905003
main90189-05003
9018905071
main90189-05071
9038606021
main90386-06021
9046312570
main90463-12570
9151160610
main91511-60610
9165140610
main91651-40610
30 parts on this diagram · 1 diagram in section
