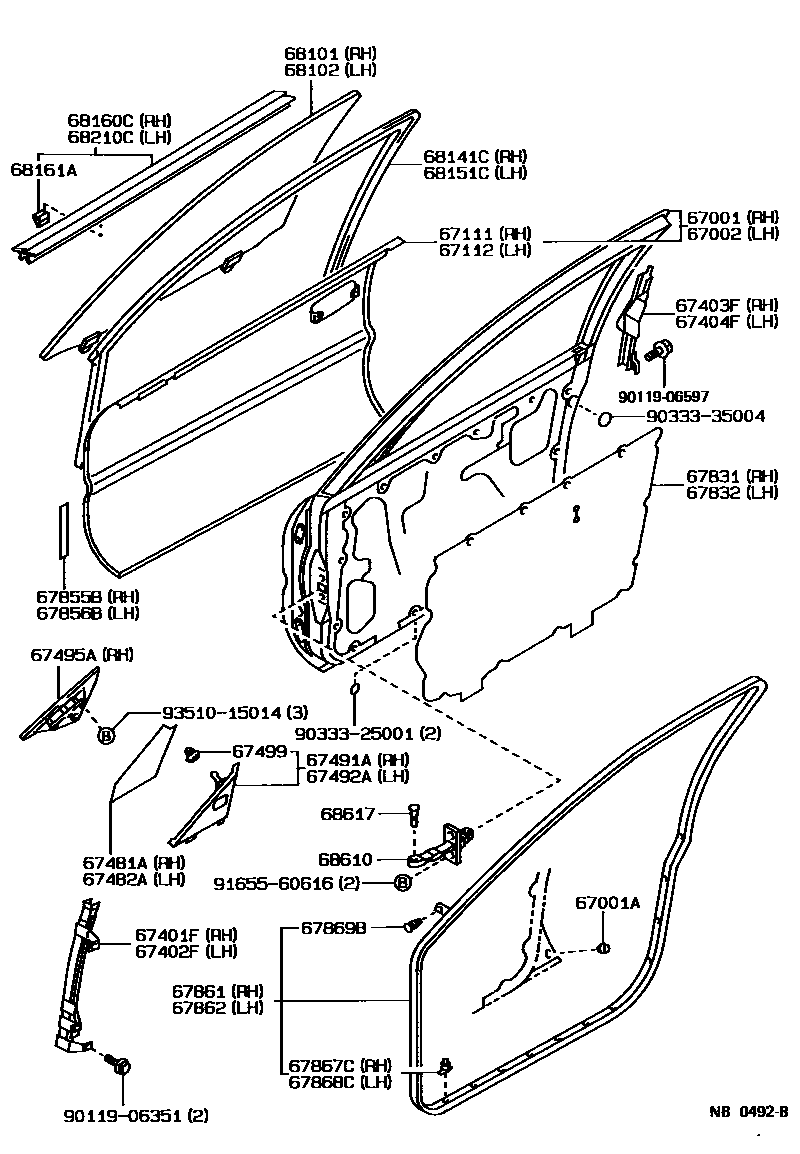

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
W(*PW & *EL & *DRC)
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
ANTI-THEFT DEVICE SYSTEM OR W(*PW) OR W(*EL)
W(*PW) OR W(*EL) OR W(*DRC)
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
ANTI-THEFT DEVICE SYSTEM
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
ANTI-THEFT DEVICE SYSTEM
67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH
67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
DX PACKAGE
W(MANUAL *RCM)
W(MANUAL *RCM)
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
W(ELECTRIC *RCM)
W(MANUAL *RCM)
DX PACKAGE
W(ELECTRIC *RCM)
W(MANUAL *RCM)
67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67855BPROTECTOR, FRONT DOOR PANEL, RH
67856BPROTECTOR, FRONT DOOR PANEL, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67869BCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=3.5
*TT,T=3.5
*TT,T=3.5,*TT,T=3.5,W(ANTI-THEFT DEVICE SYSTEM)
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=3.5
*TT,T=3.5
*TT,T=3.5,*TT,T=3.5,W(ANTI-THEFT DEVICE SYSTEM)
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68610CHECK ASSY, FRONT DOOR
9011906351
main90119-06351
9011906597
main90119-06597
9033325001
main90333-25001
9033335004
main90333-35004
9165560616
main91655-60616
9351015014
main93510-15014
39 parts on this diagram · 5 diagrams in section
