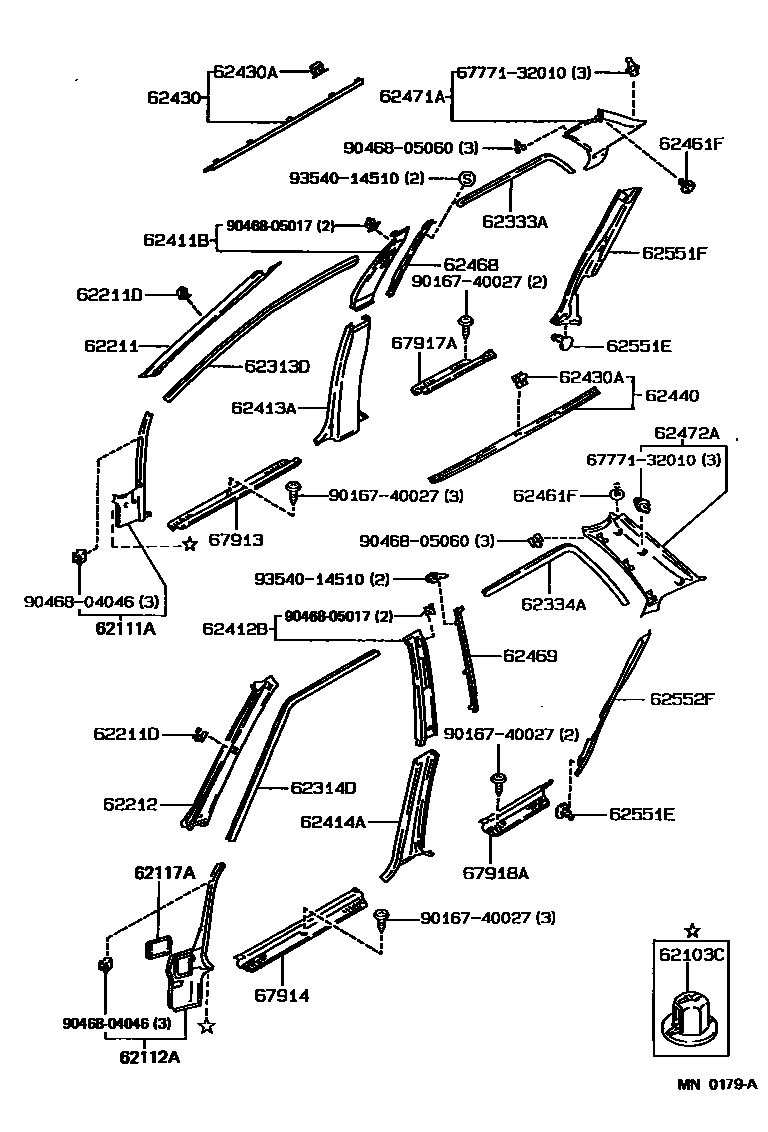

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62103CCLIP, COWL SIDE TRIM BOARD SET
TYPE B
62111ATRIM SUB-ASSY, COWL SIDE, RH
62112ATRIM SUB-ASSY, COWL SIDE, LH
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
62211GARNISH, FRONT PILLAR, RH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
62313DTRIM, FRONT DOOR OPENING, RH
62314DTRIM, FRONT DOOR OPENING, LH
62333ATRIM, REAR DOOR OPENING, RH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
62334ATRIM, REAR DOOR OPENING, LH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
62411BGARNISH, CENTER PILLAR, UPPER RH
62412BGARNISH, CENTER PILLAR, UPPER LH
62413AGARNISH, CENTER PILLAR, LOWER RH
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
62414AGARNISH, CENTER PILLAR, LOWER LH
62430GARNISH ASSY, ROOF SIDE RAIL, RH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
62430ACLIP, ROOF SIDE RAIL GARNISH
62440GARNISH ASSY, ROOF SIDE RAIL, LH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
62461FCLIP (FOR ROOF SIDE TRIM GARNISH)
62468GARNISH, CENTER PILLAR, REAR RH
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
62469GARNISH, CENTER PILLAR, REAR LH
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
62471AGARNISH, ROOF SIDE, INNER RH
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
W(SUN ROOF),MAROON,TRIM3#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
W(SUN ROOF),SHADOW GRAY,TRIM1#
W(SUN ROOF),DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
W(SUN ROOF),DARK BEIGE,TRIM4#
DARK BEIGE,TRIM4#
W(SUN ROOF),BROWN,TRIM4#
62472AGARNISH, ROOF SIDE, INNER LH
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
W(SUN ROOF),MAROON,TRIM3#
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
W(SUN ROOF),SHADOW GRAY,TRIM1#
W(SUN ROOF),DARK BLUE,TRIM8#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
W(SUN ROOF),DARK BEIGE,TRIM4#
W(SUN ROOF),BROWN,TRIM4#
62551ECLIP(FOR REAR SEAT SIDE GARNISH)
62551FGARNISH, REAR SEAT SIDE, RH
MAROON,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
DARK BEIGE,TRIM4#
BROWN,TRIM4#
62552FGARNISH, REAR SEAT SIDE, LH
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
6777132010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-32010
9016740027
main90167-40027
9046804046
main90468-04046
9046805017
main90468-05017
9046805060
main90468-05060
9354014510
main93540-14510
36 parts on this diagram · 3 diagrams in section
