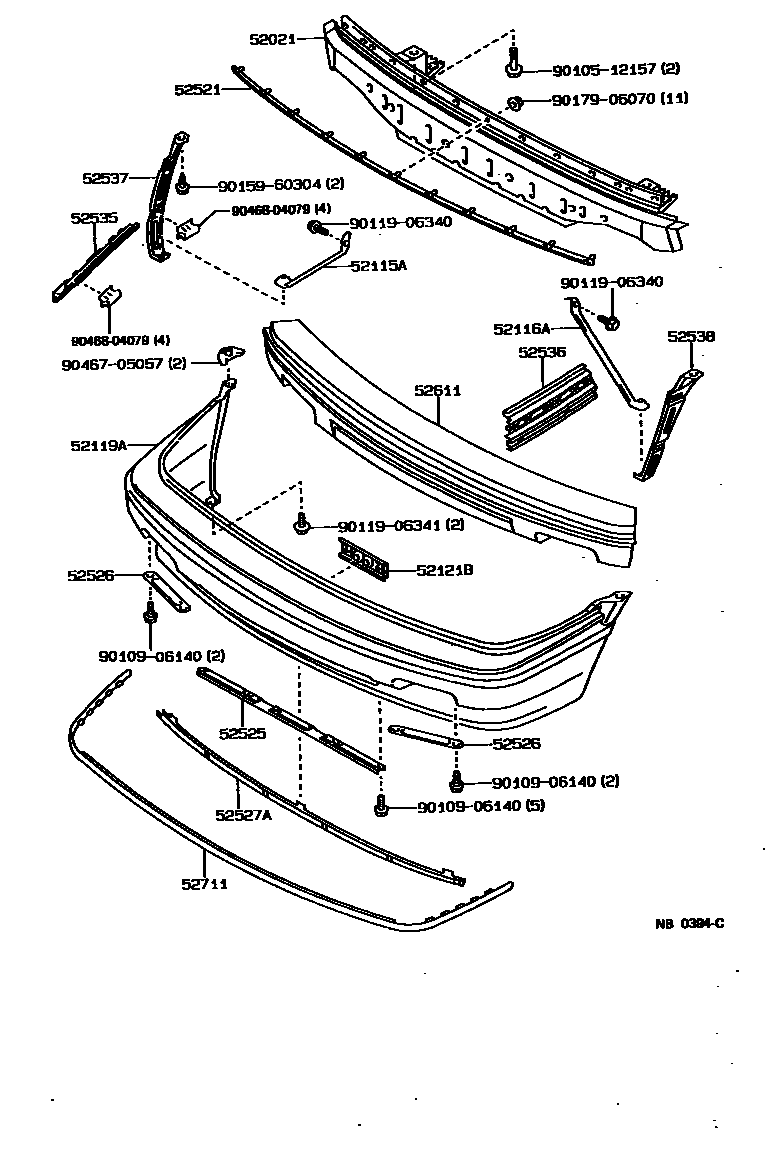

FRONT BUMPER & BUMPER STAY

0001 1 0003 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-12150iAE92199202-199206

main52021-12170iAE95..WG198802-199009

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12260iAE92199008-199206

main52115-12270iAE95..WG198908-199009

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12200iAE92199008-199206

main52116-12210iAE95..WG198802-198908

52119ACOVER, FRONT BUMPER

main52119-12350iAE95..WG198802-199009

main52119-12917iAE95..WG198908-199009

TREATED FOR PAINTING

main52119-1A170iAE92..LE198708-199008

W(MOULDING)

main52119-1A320iAE92..4FC..USA; AE92..DX,STD199202-199206

DX PACKAGE; W/O(MOULDING)

main52119-1A900iAE92..4FC..USA199202-199206

DX PACKAGE & TREATED FOR PAINTING

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-12110×2iAE9#198708-199202

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-12080iAE92199202-199206

main52521-12090iAE95..WG198802-198810

main52521-12091iAE95..WG198810-199009

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-16050iAE9#198708-199202

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-12030×2iAE9#198708-199202

52527ARETAINER, FRONT BUMPER, LOWER CENTER NO.2

main52527-12020iAE92;AE95..SED198708-199008

main52527-12040iAE95..WG198802-199009

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-12030iAE92;AE95..SED198708-199202

main52535-12040iAE95..WG198802-199009

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-12030iAE92;AE95..SED198708-199202

main52536-12050iAE95..WG198802-199009

52537RETAINER, FRONT BUMPER END, RH

main52537-12020iAE92199202-199206

main52537-12030iAE95..WG198802-199009

52538RETAINER, FRONT BUMPER END, LH

main52538-12010iAE92;AE95..SED198708-199202

main52538-12020iAE95..WG198802-199009

52611ABSORBER, FRONT BUMPER ENERGY

main52611-12110iAE92;AE95..SED198708-199202

main52611-12130iAE95..WG198802-199009

52711MOULDING, FRONT BUMPER

main52711-12110iAE92..LE;AE92..SED..DX..USA..EFI198708-199008

main52711-12160-02iAE95..SR5; AE95..WG..DX198908-199009

RED,040 ,164 ,168 ,27M ,4E1 ,8G2; RED,040 ,164 ,168 ,4E1 ,8G2

main52711-12160-03iAE95..SR5..CND; AE95..SR5..USA; AE95..WG..DX198908-199009

GRAY,25M ,3E5 ,3H4 ,8G1; GRAY,26M ,3E5 ,3H4 ,8G1; GRAY,3E5 ,3H4 ,8G1

main52711-12270-02iAE92..LE..CND; AE92..SED..DX;AE92..LE..USA199008-199105

RED,164 ,24R ,4J1 ,8G2; RED,164 ,4J1 ,8G2

main52711-12270-03iAE92..SED..(DX,LE)199008-199108

SILVER,040 ,183 ,3H4

9010512157

main90105-12157

9010906140

main90109-06140

9011906340

main90119-06340

9011906341

main90119-06341

9015960304

main90159-60304

9017906070

main90179-06070

9046705057

main90467-05057

9046804079

main90468-04079

23 parts on this diagram · 2 diagrams in section
