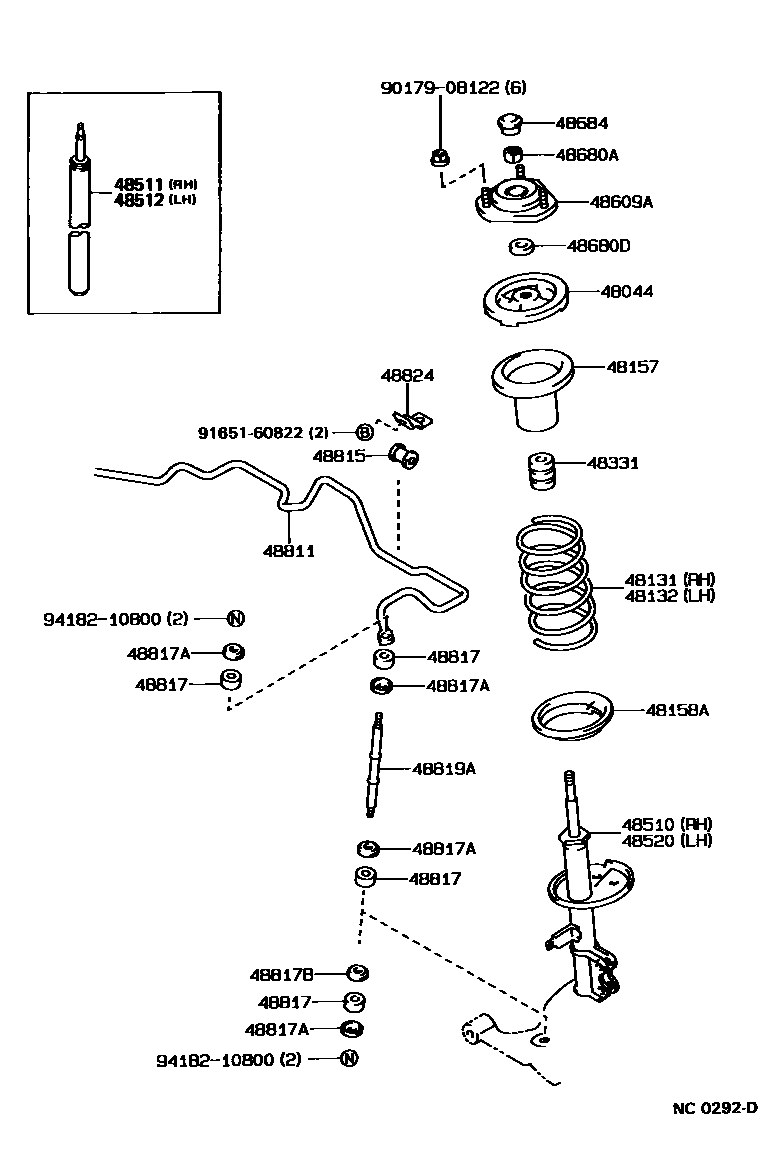

FRONT SPRING & SHOCK ABSORBER
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48131SPRING, FRONT COIL, RH
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
48132SPRING, FRONT COIL, LH
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
W(AIR CONDITIONER)
48157INSULATOR, FRONT COIL SPRING, UPPER
48158AINSULATOR, FRONT COIL SPRING, LOWER
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48510-1A260
sub48510-12652
sub48510-12650
sub48510-12661
sub48510-12600
48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
*90
48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
*90
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48520-1A130
sub48520-12522
sub48520-12520
sub48520-12531
sub48520-12470
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48819ABOLT, FRONT STABILIZER
48824BRACKET, STABILIZER, FRONT
9017908122
main90179-08122
9165160822
main91651-60822
9418210800
main94182-10800
24 parts on this diagram · 1 diagram in section
