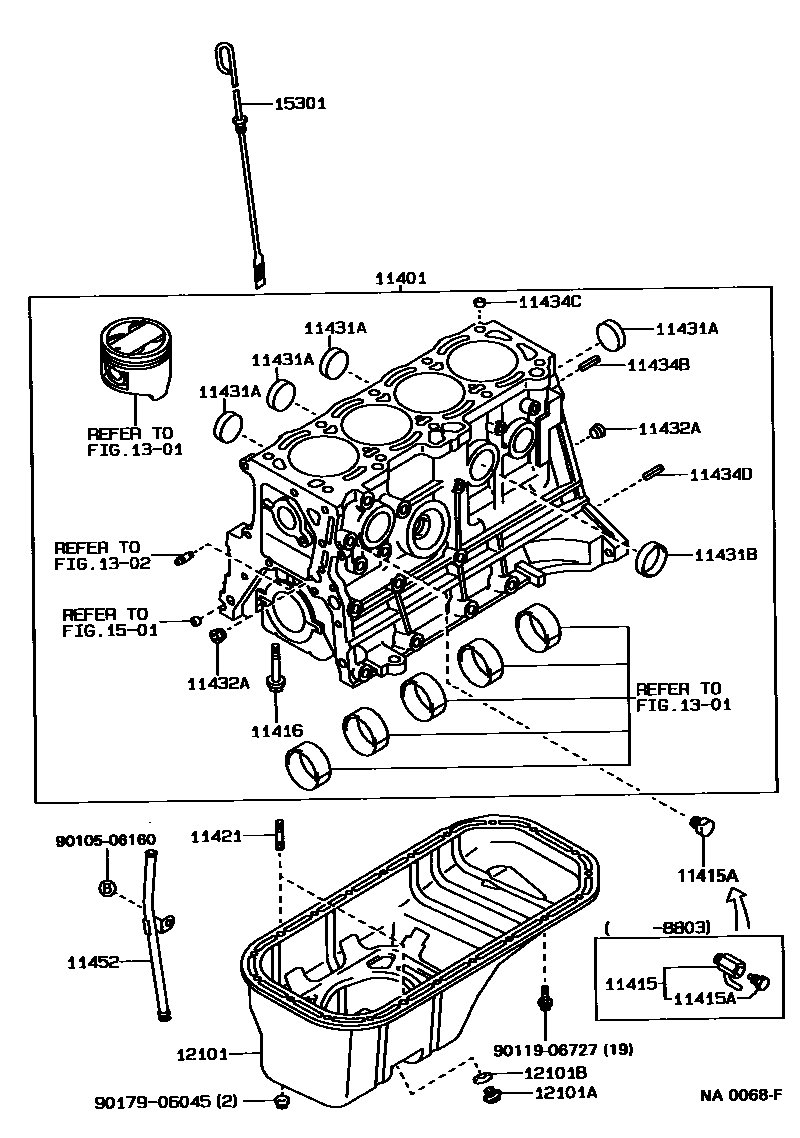

CYLINDER BLOCK

11401BLOCK SUB-ASSY, CYLINDER

main11401-19415i4AF#..AE92198708-199101

sub11401-19416

main11401-19416i4AFE..AE92199101-199206

sub11401-19506

main11401-19445i4AFE..AE95198802-198911

sub11401-19446

main11401-19446i4AFE..AE95198911-199004

sub11401-19447

main11401-19447i4AFE..AE95199004-199009

sub11401-19448

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09088i4AF#..AE9#198708-198803

sub90345-52003

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-52003i4AFE..AE9#199005-199206

main90345-52013i4AF#..AE9#198803-199005

main90910-09087i4AF#..AE9#198708-198803

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007i4AF#..AE9#198708-199206

11421BOLT, STUD(FOR OIL PAN)

main90116-06022i4AF#..AE9#198708-199206

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-43500i4AF#..AE9#198708-199206

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-44000i4AF#..AE9#198708-199206

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53008i4AF#..AE9#198708-199206

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i4AF#..AE9#198708-199206

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017i4AF#..AE9#198708-199206

L=12,OD=13

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i4AF#..AE9#198708-199206

L=14,OD=6

11452GUIDE, OIL LEVEL GAGE

main11452-15020i4AF#..AE9#198708-199206

12101PAN SUB-ASSY, OIL

main12101-15070i4AFE..AE92198708-199206

main12101-16070i4AFE..AE95198802-199009

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i4AF#..AE9#198708-198812

main90341-12026i4AF#..AE9#198812-199206

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12019i4AF#..AE9#198708-199004

sub90430-12028

main90430-12027i4AFE..AE9#199004-199206

sub90430-12031

1301

1302

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-15040i4AF#..AE9#198708-198810

sub15301-15041

main15301-15041i4AF#..AE9#198810-199206

9010506160

main90105-06160

9011906727

main90119-06727

9017906045

main90179-06045

22 parts on this diagram · 1 diagram in section
