FRONT SEAT & SEAT TRACK

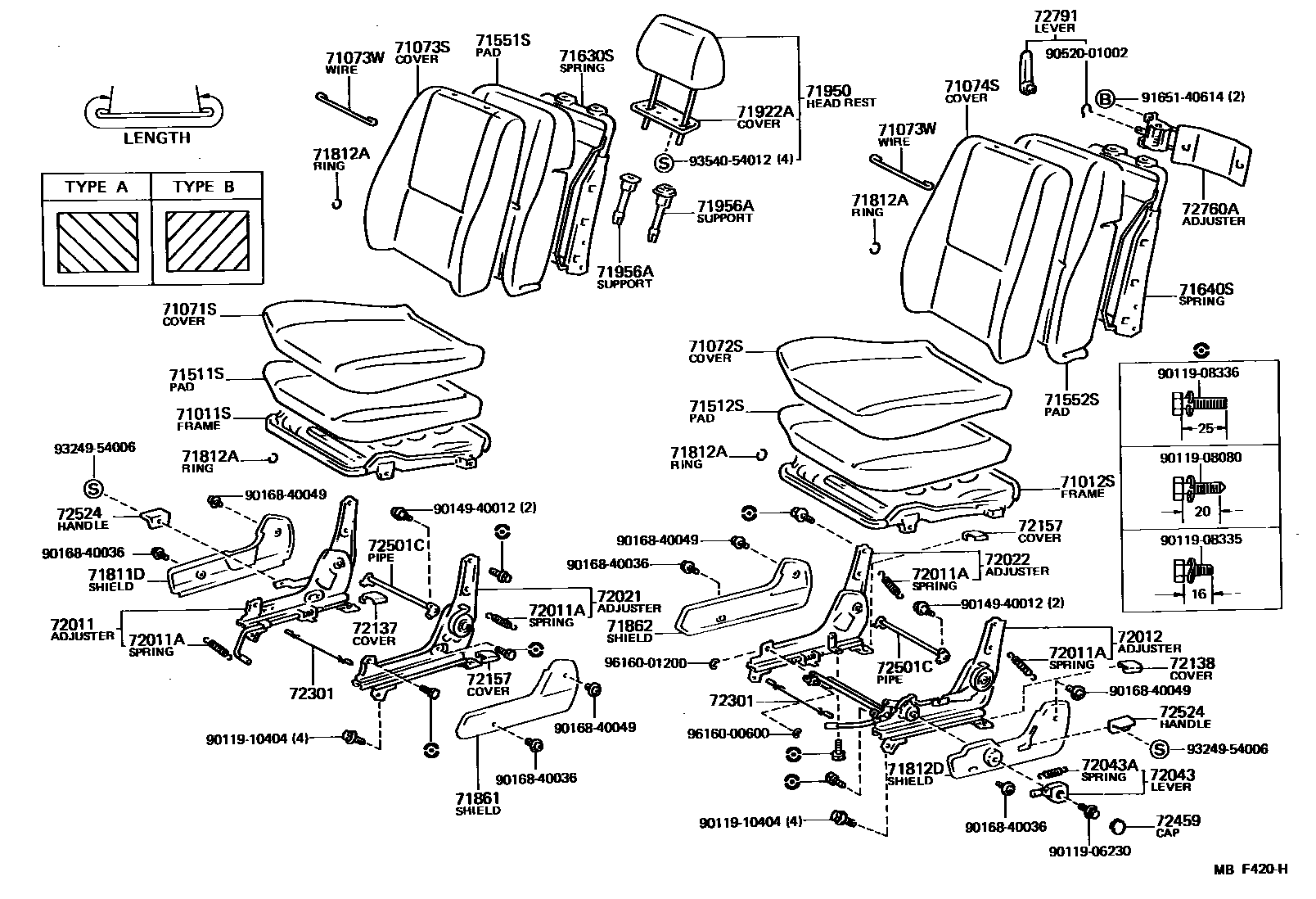

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71011-12190i198308-198707
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71011-12190i198308-198408
W/O *VA
main71011-12200i198308-198707
W/*VA
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-1E180-02i198308-198408
PF,MAROON,RED/MAROON,TRIM3#
main71071-1E180-03i198308-198408
PF,GRAY,GRAY,TRIM1#
main71071-1E180-04i198308-198408
PF,BLUE,BLUE,TRIM8#
main71071-1E190-02i198308-198408
FB,MAROON,RED/MAROON,TRIM3#
main71071-1E190-03i198308-198410
FB,GRAY,GRAY,TRIM1#
main71071-1E190-04i198308-198410
FB,BLUE,BLUE,TRIM8#
main71071-1E190-06i198408-198508
FB,BROWN,BROWN,TRIM4#
main71071-1E190-13i198410-198508
FB,GRAY,GRAY,TRIM1#
main71071-1E190-14i198410-198508
FB,BLUE,BLUE,TRIM8#
main71071-1E191-03i198508-198608
FB,GRAY,GRAY,TRIM1#
main71071-1E191-04i198508-198608
FB,BLUE,BLUE,TRIM8#
main71071-1E191-06i198508-198608
FB,BROWN,BROWN,TRIM4#
main71071-1E192-03i198608-198707
FB,GRAY,GRAY,TRIM1#
main71071-1E192-04i198608-198707
FB,BLUE,BLUE,TRIM8#
main71071-1E192-06i198608-198707
FB,BROWN,BROWN,TRIM4#
main71071-1E200-02i198308-198408
FB,MAROON,RED/MAROON,TRIM3#
main71071-1E200-03i198308-198408
FB,GRAY,GRAY,TRIM1#
main71071-1E200-04i198308-198408
FB,BLUE,BLUE,TRIM8#
main71071-1E201-03i198408-198508
FB,GRAY,GRAY,TRIM1#
main71071-1E201-04i198408-198508
FB,BLUE,BLUE,TRIM8#
main71071-1E201-06i198408-198508
FB,BROWN,BROWN,TRIM4#
main71071-1E202-03i198508-198707
FB,GRAY,GRAY,TRIM1#
main71071-1E202-04i198508-198707
FB,BLUE,BLUE,TRIM8#
main71071-1E202-06i198508-198707
FB,BROWN,BROWN,TRIM4#
main71071-1E230-02i198308-198404
PF,MAROON,RED/MAROON,TRIM3#
main71071-1E230-03i198308-198404
PF,GRAY,GRAY,TRIM1#
main71071-1E230-04i198308-198404
PF,BLUE,BLUE,TRIM8#
main71071-1E230-06i198408-198508
PF,BROWN,BROWN,TRIM4#
main71071-1E230-12i198404-198408
PF,MAROON,MAROON,TRIM3#
main71071-1E230-13i198404-198508
PF,GRAY,GRAY,TRIM1#
main71071-1E230-14i198404-198508
PF,BLUE,BLUE,TRIM8#
main71071-1E231-03i198508-198707
PF,GRAY,GRAY,TRIM1#
main71071-1E231-04i198508-198707
PF,BLUE,BLUE,TRIM8#
main71071-1E231-06i198508-198707
PF,BROWN,BROWN,TRIM4#
main71071-1E630-03i198408-198508
FB,GRAY,GRAY,TRIM1#
main71071-1E630-04i198408-198508
FB,BLUE,BLUE,TRIM8#
main71071-1E630-06i198408-198508
FB,BROWN,BROWN,TRIM4#
main71071-1E631-03i198508-198707
FB,GRAY,GRAY,TRIM1#
main71071-1E631-04i198508-198707
FB,BLUE,BLUE,TRIM8#
main71071-1E631-06i198508-198707
TYPE A,FB,BROWN,BROWN,TRIM4#
main71071-1E631-16i198508-198707
TYPE B,FB,BROWN,BROWN,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71071-1E180-02i198308-198408
PF,MAROON,RED/MAROON,TRIM3#
main71071-1E180-03i198308-198408
PF,GRAY,GRAY,TRIM1#
main71071-1E180-04i198308-198408
PF,BLUE,BLUE,TRIM8#
main71071-1E190-02i198308-198408
W/O *VA,FB,MAROON,RED/MAROON,TRIM3#
main71071-1E190-03i198308-198410
W/O *VA,FB,GRAY,GRAY,TRIM1#
main71071-1E190-04i198308-198410
W/O *VA,FB,BLUE,BLUE,TRIM8#
main71071-1E190-06i198408-198508
W/O *VA,FB,BROWN,BROWN,TRIM4#
main71071-1E190-13i198410-198508
W/O *VA,FB,GRAY,GRAY,TRIM1#
main71071-1E190-14i198410-198508
W/O *VA,FB,BLUE,BLUE,TRIM8#
main71071-1E191-03i198508-198608
W/O *VA,FB,GRAY,GRAY,TRIM1#
main71071-1E191-04i198508-198608
W/O *VA,FB,BLUE,BLUE,TRIM8#
main71071-1E191-06i198508-198608
W/O *VA,FB,BROWN,BROWN,TRIM4#
main71071-1E192-03i198608-198707
W/O *VA,GRAY,GRAY,TRIM1#
main71071-1E192-04i198608-198707
W/O *VA,BLUE,BLUE,TRIM8#
main71071-1E192-06i198608-198707
W/O *VA,BROWN,BROWN,TRIM4#
main71071-1E200-02i198308-198408
W/O *VA,FB,MAROON,RED/MAROON,TRIM3#
main71071-1E200-03i198308-198408
W/O *VA,FB,GRAY,GRAY,TRIM1#
main71071-1E200-04i198308-198408
W/O *VA,FB,BLUE,BLUE,TRIM8#
main71071-1E230-02i198308-198404
W/O *VA,PF,MAROON,RED/MAROON,TRIM3#
main71071-1E230-03i198308-198404
W/O *VA,PF,GRAY,GRAY,TRIM1#
main71071-1E230-04i198308-198404
W/O *VA,PF,BLUE,BLUE,TRIM8#
main71071-1E230-06i198408-198508
W/O *VA,PF,BROWN,BROWN,TRIM4#
main71071-1E230-12i198404-198408
W/O *VA,PF,MAROON,MAROON,TRIM3#
main71071-1E230-13i198404-198508
W/O *VA,PF,GRAY,GRAY,TRIM1#
main71071-1E230-14i198404-198508
W/O *VA,PF,BLUE,BLUE,TRIM8#
main71071-1E231-03i198508-198707
W/O *VA,PF,GRAY,GRAY,TRIM1#
main71071-1E231-04i198508-198707
W/O *VA,PF,BLUE,BLUE,TRIM8#
main71071-1E231-06i198508-198707
W/O *VA,PF,BROWN,BROWN,TRIM4#
main71071-1E360-02i198308-198408
W/*VA,FB,MAROON,RED/MAROON,TRIM3#
main71071-1E360-03i198308-198410
W/*VA,FB,GRAY,GRAY,TRIM1#
main71071-1E360-04i198308-198410
W/*VA,FB,BLUE,BLUE,TRIM8#
main71071-1E360-06i198408-198508
W/*VA,FB,BROWN,BROWN,TRIM4#
main71071-1E360-13i198410-198508
W/*VA,FB,GRAY,GRAY,TRIM1#
main71071-1E360-14i198410-198508
W/*VA,FB,BLUE,BLUE,TRIM8#
main71071-1E361-03i198508-198608
W/*VA,FB,GRAY,GRAY,TRIM1#
main71071-1E361-04i198508-198608
W/*VA,FB,BLUE,BLUE,TRIM8#
main71071-1E361-06i198508-198608
W/*VA,FB,BROWN,BROWN,TRIM4#
main71071-1E362-03i198608-198707
W/*VA,GRAY,GRAY,TRIM1#
main71071-1E362-04i198608-198707
W/*VA,BLUE,BLUE,TRIM8#
main71071-1E362-06i198608-198707
W/*VA,BROWN,BROWN,TRIM4#
main71071-1E370-02i198308-198404
W/*VA,PF,MAROON,RED/MAROON,TRIM3#
main71071-1E370-03i198308-198404
W/*VA,PF,GRAY,GRAY,TRIM1#
main71071-1E370-04i198308-198404
W/*VA,PF,BLUE,BLUE,TRIM8#
main71071-1E370-06i198408-198508
W/*VA,PF,BROWN,BROWN,TRIM4#
main71071-1E370-12i198404-198408
W/*VA,PF,MAROON,MAROON,TRIM3#
main71071-1E370-13i198404-198508
W/*VA,PF,GRAY,GRAY,TRIM1#
main71071-1E370-14i198404-198508
W/*VA,PF,BLUE,BLUE,TRIM8#
main71071-1E371-03i198508-198707
W/*VA,PF,GRAY,GRAY,TRIM1#
main71071-1E371-04i198508-198707
W/*VA,PF,BLUE,BLUE,TRIM8#
main71071-1E371-06i198508-198707
W/*VA,PF,BROWN,BROWN,TRIM4#
main71071-1E380-02i198308-198408
W/*VA,FB,MAROON,RED/MAROON,TRIM3#
main71071-1E380-03i198308-198408
W/*VA,FB,GRAY,GRAY,TRIM1#
main71071-1E380-04i198308-198408
W/*VA,FB,BLUE,BLUE,TRIM8#
main71071-1E381-03i198408-198508
FB,GRAY,GRAY,TRIM1#
main71071-1E381-04i198408-198508
FB,BLUE,BLUE,TRIM8#
main71071-1E381-06i198408-198508
FB,BROWN,BROWN,TRIM4#
main71071-1E382-03i198508-198707
FB,GRAY,GRAY,TRIM1#
main71071-1E382-04i198508-198707
FB,BLUE,BLUE,TRIM8#
main71071-1E382-06i198508-198707
FB,BROWN,BROWN,TRIM4#
main71071-1E640-03i198408-198508
FB,GRAY,GRAY,TRIM1#
main71071-1E640-04i198408-198508
FB,BLUE,BLUE,TRIM8#
main71071-1E640-06i198408-198508
FB,BROWN,BROWN,TRIM4#
main71071-1E641-03i198508-198707
FB,GRAY,GRAY,TRIM1#
main71071-1E641-04i198508-198707
FB,BLUE,BLUE,TRIM8#
main71071-1E641-06i198508-198707
TYPE A,FB,BROWN,BROWN,TRIM4#
main71071-1E641-16i198508-198707
TYPE B,FB,BROWN,BROWN,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-1E390-02i198308-198404
PF,MAROON,MAROON,TRIM3#
main71073-1E390-03i198308-198404
PF,GRAY,GRAY,TRIM1#
main71073-1E390-04i198308-198404
PF,BLUE,BLUE,TRIM8#
main71073-1E390-12i198404-198508
PF,MAROON,MAROON,TRIM3#,4#
main71073-1E390-13i198404-198508
PF,GRAY,GRAY,TRIM1#
main71073-1E390-14i198404-198508
PF,BLUE,BLUE,TRIM8#
main71073-1E391-03i198508-198707
PF,GRAY,GRAY,TRIM1#
main71073-1E391-04i198508-198707
PF,BLUE,BLUE,TRIM8#
main71073-1E391-06i198508-198707
PF,BROWN,BROWN,TRIM4#
main71073-1E450-02i198308-198408
PF,MAROON,MAROON,TRIM3#
main71073-1E450-03i198308-198408
PF,GRAY,GRAY,TRIM1#
main71073-1E450-04i198308-198408
PF,BLUE,BLUE,TRIM8#
main71073-1E460-02i198308-198408
FB,MAROON,MAROON,TRIM3#
main71073-1E460-03i198308-198408
FB,GRAY,GRAY,TRIM1#
main71073-1E460-04i198308-198408
FB,BLUE,BLUE,TRIM8#
main71073-1E460-06i198408-198508
FB,BROWN,BROWN,TRIM4#
main71073-1E460-13i198408-198508
FB,GRAY,GRAY,TRIM1#
main71073-1E460-14i198408-198508
FB,BLUE,BLUE,TRIM8#
main71073-1E461-03i198508-198608
FB,GRAY,GRAY,TRIM1#
main71073-1E461-04i198508-198608
FB,BLUE,BLUE,TRIM8#
main71073-1E461-06i198508-198608
FB,BROWN,BROWN,TRIM4#
main71073-1E462-03i198608-198707
FB,GRAY,GRAY,TRIM1#
main71073-1E462-04i198608-198707
FB,BLUE,BLUE,TRIM8#
main71073-1E462-06i198608-198707
FB,BROWN,BROWN,TRIM4#
main71073-1E470-02i198308-198408
FB,MAROON,RED/MAROON,TRIM3#
main71073-1E470-03i198308-198408
FB,GRAY,GRAY,TRIM1#
main71073-1E470-04i198308-198408
FB,BLUE,BLUE,TRIM8#
main71073-1E471-03i198408-198508
FB,GRAY,GRAY,TRIM1#
main71073-1E471-04i198408-198508
FB,BLUE,BLUE,TRIM8#
main71073-1E471-06i198408-198508
FB,BROWN,BROWN,TRIM4#
main71073-1E472-03i198508-198707
FB,GRAY,GRAY,TRIM1#
main71073-1E472-04i198508-198707
FB,BLUE,BLUE,TRIM8#
main71073-1E472-06i198508-198707
FB,BROWN,BROWN,TRIM4#
main71073-1E750-03i198408-198508
FB,GRAY,GRAY,TRIM1#
main71073-1E750-04i198408-198508
FB,BLUE,BLUE,TRIM8#
main71073-1E750-06i198408-198508
FB,BROWN,BROWN,TRIM4#
main71073-1E751-03i198508-198707
FB,GRAY,GRAY,TRIM1#
main71073-1E751-04i198508-198707
FB,BLUE,BLUE,TRIM8#
main71073-1E751-06i198508-198707
TYPE A,FB,BROWN,BROWN,TRIM4#
main71073-1E751-16i198508-198707
TYPE B,FB,BROWN,BROWN,TRIM4#
71073WWIRE, FRONT SEATBACK COVER
main90580-20012×4i198308-198508
L=420
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-1E460-02i198308-198311
W/O *VA,FB,MAROON,MAROON,TRIM3#
main71073-1E460-03i198308-198311
W/O *VA,FB,GRAY,GRAY,TRIM1#
main71073-1E460-04i198308-198311
W/O *VA,FB,BLUE,BLUE,TRIM8#
main71073-1E470-02i198308-198311
W/O *VA,FB,MAROON,RED/MAROON,TRIM3#
main71073-1E470-03i198308-198311
W/O *VA,FB,GRAY,GRAY,TRIM1#
main71073-1E470-04i198308-198311
W/O *VA,FB,BLUE,BLUE,TRIM8#
main71074-1A570-02i198308-198408
PF,MAROON,MAROON,TRIM3#
main71074-1A570-03i198308-198408
PF,GRAY,GRAY,TRIM1#
main71074-1A570-04i198308-198408
PF,BLUE,BLUE,TRIM8#
main71074-1A580-02i198308-198404
W/O *VA,PF,MAROON,MAROON,TRIM3#
main71074-1A580-03i198308-198404
W/O *VA,PF,GRAY,GRAY,TRIM1#
main71074-1A580-04i198308-198404
W/O *VA,PF,BLUE,BLUE,TRIM8#
main71074-1A580-12i198404-198508
W/O *VA,PF,MAROON,MAROON,TRIM3#,4#
main71074-1A580-13i198404-198508
W/O *VA,PF,GRAY,GRAY,TRIM1#
main71074-1A580-14i198404-198508
W/O *VA,PF,BLUE,BLUE,TRIM8#
main71074-1A581-03i198508-198707
W/O *VA,PF,GRAY,GRAY,TRIM1#
main71074-1A581-04i198508-198707
W/O *VA,PF,BLUE,BLUE,TRIM8#
main71074-1A581-06i198508-198707
W/O *VA,PF,BROWN,BROWN,TRIM4#
main71074-1A600-02i198308-198404
W/*VA,PF,MAROON,MAROON,TRIM3#
main71074-1A600-03i198308-198404
W/*VA,PF,GRAY,GRAY,TRIM1#
main71074-1A600-04i198308-198404
W/*VA,PF,BLUE,BLUE,TRIM8#
main71074-1A600-12i198404-198508
W/*VA,PF,MAROON,MAROON,TRIM3#,4#
main71074-1A600-13i198404-198508
W/*VA,PF,GRAY,GRAY,TRIM1#
main71074-1A600-14i198404-198508
W/*VA,PF,BLUE,BLUE,TRIM8#
main71074-1A601-03i198508-198707
W/*VA,PF,GRAY,GRAY,TRIM1#
main71074-1A601-04i198508-198707
W/*VA,PF,BLUE,BLUE,TRIM8#
main71074-1A601-06i198508-198707
W/*VA,PF,BROWN,BROWN,TRIM4#
main71074-1A610-02i198308-198408
W/*VA,FB,MAROON,MAROON,TRIM3#
main71074-1A610-03i198308-198408
W/*VA,FB,GRAY,GRAY,TRIM1#
main71074-1A610-04i198308-198408
W/*VA,FB,BLUE,BLUE,TRIM8#
main71074-1A610-06i198408-198508
W/*VA,FB,BROWN,BROWN,TRIM4#
main71074-1A610-13i198408-198508
W/*VA,FB,GRAY,GRAY,TRIM1#
main71074-1A610-14i198408-198508
W/*VA,FB,BLUE,BLUE,TRIM8#
main71074-1A611-03i198508-198608
W/*VA,FB,GRAY,GRAY,TRIM1#
main71074-1A611-04i198508-198608
W/*VA,FB,BLUE,BLUE,TRIM8#
main71074-1A611-06i198508-198608
W/*VA,FB,BROWN,BROWN,TRIM4#
main71074-1A612-03i198608-198707
W/*VA,GRAY,GRAY,TRIM1#
main71074-1A612-04i198608-198707
W/*VA,BLUE,BLUE,TRIM8#
main71074-1A612-06i198608-198707
W/*VA,BROWN,BROWN,TRIM4#
main71074-1A620-02i198308-198408
W/*VA,FB,MAROON,RED/MAROON,TRIM3#
main71074-1A620-03i198308-198408
W/*VA,FB,GRAY,GRAY,TRIM1#
main71074-1A620-04i198308-198408
W/*VA,FB,BLUE,BLUE,TRIM8#
main71074-1A621-03i198408-198508
FB,GRAY,GRAY,TRIM1#
main71074-1A621-04i198408-198508
FB,BLUE,BLUE,TRIM8#
main71074-1A621-06i198408-198508
FB,BROWN,BROWN,TRIM4#
main71074-1A622-03i198508-198707
FB,GRAY,GRAY,TRIM1#
main71074-1A622-04i198508-198707
FB,BLUE,BLUE,TRIM8#
main71074-1A622-06i198508-198707
FB,BROWN,BROWN,TRIM4#
main71074-1A650-02i198311-198408
W/O *VA,FB,MAROON,MAROON,TRIM3#
main71074-1A650-03i198311-198408
W/O *VA,FB,GRAY,GRAY,TRIM1#
main71074-1A650-04i198311-198408
W/O *VA,FB,BLUE,BLUE,TRIM8#
main71074-1A650-06i198408-198508
W/O *VA,FB,BROWN,BROWN,TRIM4#
main71074-1A650-13i198408-198508
W/O *VA,FB,GRAY,GRAY,TRIM1#
main71074-1A650-14i198408-198508
W/O *VA,FB,BLUE,BLUE,TRIM8#
main71074-1A651-03i198508-198608
W/O *VA,FB,GRAY,GRAY,TRIM1#
main71074-1A651-04i198508-198608
W/O *VA,FB,BLUE,BLUE,TRIM8#
main71074-1A651-06i198508-198608
W/O *VA,FB,BROWN,BROWN,TRIM4#
main71074-1A652-03i198608-198707
W/O *VA,GRAY,GRAY,TRIM1#
main71074-1A652-04i198608-198707
W/O *VA,BLUE,BLUE,TRIM8#
main71074-1A652-06i198608-198707
W/O *VA,BROWN,BROWN,TRIM4#
main71074-1A660-02i198311-198408
W/O *VA,FB,MAROON,RED/MAROON,TRIM3#
main71074-1A660-03i198311-198408
W/O *VA,FB,GRAY,GRAY,TRIM1#
main71074-1A660-04i198311-198408
W/O *VA,FB,BLUE,BLUE,TRIM8#
main71074-1A720-03i198408-198508
FB,GRAY,GRAY,TRIM1#
main71074-1A720-04i198408-198508
FB,BLUE,BLUE,TRIM8#
main71074-1A720-06i198408-198508
FB,BROWN,BROWN,TRIM4#
main71074-1A721-03i198508-198707
FB,GRAY,GRAY,TRIM1#
main71074-1A721-04i198508-198707
FB,BLUE,BLUE,TRIM8#
main71074-1A721-06i198508-198707
TYPE A,FB,BROWN,BROWN,TRIM4#
main71074-1A721-16i198508-198707
TYPE B,FB,BROWN,BROWN,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-12490i198308-198508
main71511-12560×2i198508-198707
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-12490i198308-198508
main71511-12560×2i198508-198707
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-12440i198308-198508
main71551-12490×2i198508-198707
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-12440i198308-198508
main71551-12490×2i198508-198707
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-16060i198308-198707
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-16060i198308-198707
main71630-16080i198308-198508
main71630-16081i198508-198707
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-12110-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main71811-12110-03i198308-198707
GRAY,GRAY,TRIM1#
main71811-12110-04i198308-198707
BLUE,BLUE,TRIM8#
main71811-12110-06i198408-198707
BROWN,BROWN,TRIM4#
71812ARING, HOG, SMALL (FOR FRONT SEAT)
main90468-18071i198308-198707
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-12060-02i198308-198408
W/*VA,MAROON,RED/MAROON,TRIM3#
main71812-12060-03i198308-198707
W/*VA,GRAY,GRAY,TRIM1#
main71812-12060-04i198308-198707
W/*VA,BLUE,BLUE,TRIM8#
main71812-12060-06i198408-198707
W/*VA,BROWN,BROWN,TRIM4#
main71812-12070-02i198308-198408
W/O *VA,MAROON,RED/MAROON,TRIM3#
main71812-12070-03i198408-198707
W/O *VA,GRAY,GRAY,TRIM1#
main71812-12070-04i198408-198707
W/O *VA,BLUE,BLUE,TRIM8#
main71812-12070-06i198408-198707
W/O *VA,BROWN,BROWN,TRIM4#
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-12040-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main71861-12040-03i198308-198707
GRAY,GRAY,TRIM1#
main71861-12040-04i198308-198707
BLUE,BLUE,TRIM8#
main71861-12040-06i198408-198707
BROWN,BROWN,TRIM4#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-12030-02i198308-198408
W/*VA,MAROON,RED/MAROON,TRIM3#
main71862-12030-03i198308-198707
W/*VA,GRAY,GRAY,TRIM1#
main71862-12030-04i198308-198707
W/*VA,BLUE,BLUE,TRIM8#
main71862-12030-06i198408-198707
W/*VA,BROWN,BROWN,TRIM4#
main71862-12040-02i198308-198408
W/O *VA,MAROON,RED/MAROON,TRIM3#
main71862-12040-03i198308-198408
W/O *VA,GRAY,GRAY,TRIM1#
main71862-12040-04i198408-198707
W/O *VA,BLUE,BLUE,TRIM8#
main71862-12040-06i198408-198707
W/O *VA,BROWN,BROWN,TRIM4#
71922ACOVER, FRONT SEAT HEADREST UNDER
main71922-32010-13×2i198308-198508
GRAY,GRAY,TRIM1#
main71922-32010-34×2i198308-198408
BLUE,BLUE,TRIM8#
main71922-32010-35×2i198308-198408
BEIGE,BEIGE,TRIM3#
71950HEADREST ASSY, FRONT SEAT
main71910-12310-03×2i198408-198508
GRAY,GRAY,TRIM1#
main71910-12310-04×2i198408-198508
BLUE,BLUE,TRIM8#
main71910-12310-06×2i198408-198508
BROWN,BROWN,TRIM4#
main71910-12320-02×2i198308-198408
MAROON,RED/MAROON,TRIM3#
main71910-12320-03×2i198308-198408
GRAY,GRAY,TRIM1#
main71910-12320-04×2i198308-198408
BLUE,BLUE,TRIM8#
main71910-12350-03×2i198308-198508
GRAY,GRAY,TRIM1#
main71910-12350-04×2i198308-198508
BLUE,BLUE,TRIM8#
main71910-12350-05×2i198308-198508
BEIGE,BEIGE,TRIM3#,4#
main71910-12350-06×2i198508-198707
BROWN,BROWN,TRIM4#
main71910-12350-13×2i198508-198707
GRAY,GRAY,TRIM1#
main71910-12350-14×2i198508-198707
BLUE,BLUE,TRIM8#
main71910-12471-03×2i198508-198707
GRAY,GRAY,TRIM1#
main71910-12471-04×2i198508-198707
BLUE,BLUE,TRIM8#
main71910-12471-06×2i198508-198707
BROWN,BROWN,TRIM4#
main71910-12530-02×2i198408-198508
MAROON,MAROON,TRIM4#
main71910-12530-03×2i198408-198508
GRAY,GRAY,TRIM1#
main71910-12530-04×2i198408-198508
BLUE,BLUE,TRIM8#
main71910-12620-03×2i198508-198707
GRAY,GRAY,TRIM1#
main71910-12620-04×2i198508-198707
BLUE,BLUE,TRIM8#
main71910-12620-06×2i198508-198707
BROWN,BROWN,TRIM4#
71956ASUPPORT, FRONT SEAT HEADREST
main71930-10060-01×2i198508-198707
W(LOCK),W/LOCK,BLACK,BLACK
main71930-10060-04×2i198308-198707
W(LOCK),W/LOCK,BLUE,BLUE,TRIM8#
main71930-10060-13×2i198308-198508
W(LOCK),W/LOCK,GRAY,LIGHT GRAY,TRIM1#
main71930-10060-16×2i198508-198707
W(LOCK),W/LOCK,BROWN,SABLE,TRIM4#
main71930-10060-25×2i198408-198508
W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4#
main71931-10010-01×2i198508-198707
W/O(LOCK),W/O LOCK,BLACK,BLACK
main71931-10010-04×2i198308-198707
W/O(LOCK),W/O LOCK,BLUE,BLUE,TRIM8#
main71931-10010-13×2i198308-198508
W/O(LOCK),W/O LOCK,GRAY,LIGHT GRAY,TRIM1#
main71931-10010-16×2i198508-198707
W/O(LOCK),W/O LOCK,BROWN,SABLE,TRIM4#
main71931-10010-25×2i198408-198508
W/O(LOCK),W/O LOCK,BEIGE,BEIGE,TRIM4#
72011ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
main72011-12030i198308-198707
72011ASPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
main90506-14039×4i198308-198707
72012ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
main72012-12030i198308-198408
W/O VERTICAL ADJUSTER
main72012-12040i198308-198508
W/VERTICAL ADJUSTER
main72012-12060i198508-198707
W/VERTICAL ADJUSTER
72021ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
main72021-12030i198308-198707
72022ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
main72022-12010i198308-198508
W/VERTICAL ADJUSTER
main72022-12030i198308-198408
W/O VERTICAL ADJUSTER
main72022-12080i198508-198707
W/VERTICAL ADJUSTER
72043LEVER SUB-ASSY, SEAT LIFTER
main72043-12020-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main72043-12020-03i198308-198707
GRAY,GRAY,TRIM1#
main72043-12020-04i198308-198707
BLUE,BLUE,TRIM8#
main72043-12020-06i198408-198707
BROWN,BROWN,TRIM4#
72043ASPRING, TENSION (FOR SEAT LIFTER LEVER)
main90506-04001i198308-198707
72137COVER, SEAT TRACK, OUTER RH
main72137-12010-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main72137-12010-03i198308-198707
GRAY,GRAY,TRIM1#
main72137-12010-04i198308-198707
BLUE,BLUE,TRIM8#
main72137-12010-06i198408-198707
BROWN,BROWN,TRIM4#
72138COVER, SEAT TRACK, OUTER LH
main72138-12010-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main72138-12010-03i198308-198707
GRAY,GRAY,TRIM1#
main72138-12010-04i198308-198707
BLUE,BLUE,TRIM8#
main72138-12010-06i198408-198707
BROWN,BROWN,TRIM4#
72157COVER, SEAT TRACK BRACKET, INNER
main72137-12010-02i198308-198408
LH,MAROON,RED/MAROON,TRIM3#
main72137-12010-03i198308-198707
LH,GRAY,GRAY,TRIM1#
main72137-12010-04i198308-198707
LH,BLUE,BLUE,TRIM8#
main72137-12010-06i198408-198707
LH,BROWN,BROWN,TRIM4#
main72138-12010-02i198308-198408
RH,MAROON,RED/MAROON,TRIM3#
main72138-12010-03i198308-198707
RH,GRAY,GRAY,TRIM1#
main72138-12010-04i198308-198707
RH,BLUE,BLUE,TRIM8#
main72138-12010-06i198408-198707
RH,BROWN,BROWN,TRIM4#
72301WIRE SUB-ASSY, SEAT TRACK EQUALIZING
main72301-12060×2i198308-198707
72459CAP, VERTICAL SEAT ADJUSTER KNOB
main72459-12010-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main72459-12010-03i198308-198707
GRAY,GRAY,TRIM1#
main72459-12010-04i198308-198707
BLUE,BLUE,TRIM8#
main72459-12010-06i198408-198707
BROWN,BROWN,TRIM4#
72501CPIPE SUB-ASSY, RECLINING CONNECTING
main72501-12030×2i198308-198707
72524HANDLE, RECLINING ADJUSTER RELEASE
main72525-12090-02i198308-198408
RH,MAROON,RED/MAROON,TRIM3#
main72525-12090-03i198308-198707
RH,GRAY,GRAY,TRIM1#
main72525-12090-04i198308-198707
RH,BLUE,BLUE,TRIM8#
main72525-12090-06i198408-198707
RH,BROWN,SEPIA BROWN,TRIM4#
main72526-12030-02i198308-198408
LH,MAROON,RED/MAROON,TRIM3#
main72526-12030-03i198308-198707
LH,GRAY,GRAY,TRIM1#
main72526-12030-04i198308-198707
LH,BLUE,BLUE,TRIM8#
main72526-12030-06i198408-198707
LH,BROWN,SEPIA BROWN,TRIM4#
72760AADJUSTER ASSY, LUMBAR SUPPORT
main72760-12040×2i198508-198707
main72760-12050i198308-198508
72791LEVER, LUMBAR SUPPORT
main72791-22020-04i198408-198707
BLUE,BLUE,TRIM8#
main72791-22020-05i198308-198408
BEIGE,BEIGE,TRIM3#
main72791-22020-14i198308-198408
BLUE,BLUE,TRIM8#
main72791-22020-23i198408-198707
GRAY,GRAY,TRIM1#
main72791-22020-26i198408-198707
BROWN,BROWN,TRIM4#
main72791-22020-33i198308-198408
GRAY,GRAY,TRIM1#
9011906230
main90119-06230
9011908080
main90119-08080
9011908335
main90119-08335
9011908336
main90119-08336
9011910404
main90119-10404
9014940012
main90149-40012
9016840036
main90168-40036
9016840049
main90168-40049
9052001002
main90520-01002
9165140614
main91651-40614
9324954006
main93249-54006
9354054012
main93540-54012
9616000600
main96160-00600
9616001200
main96160-01200

51 parts on this diagram · 1 diagram in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
