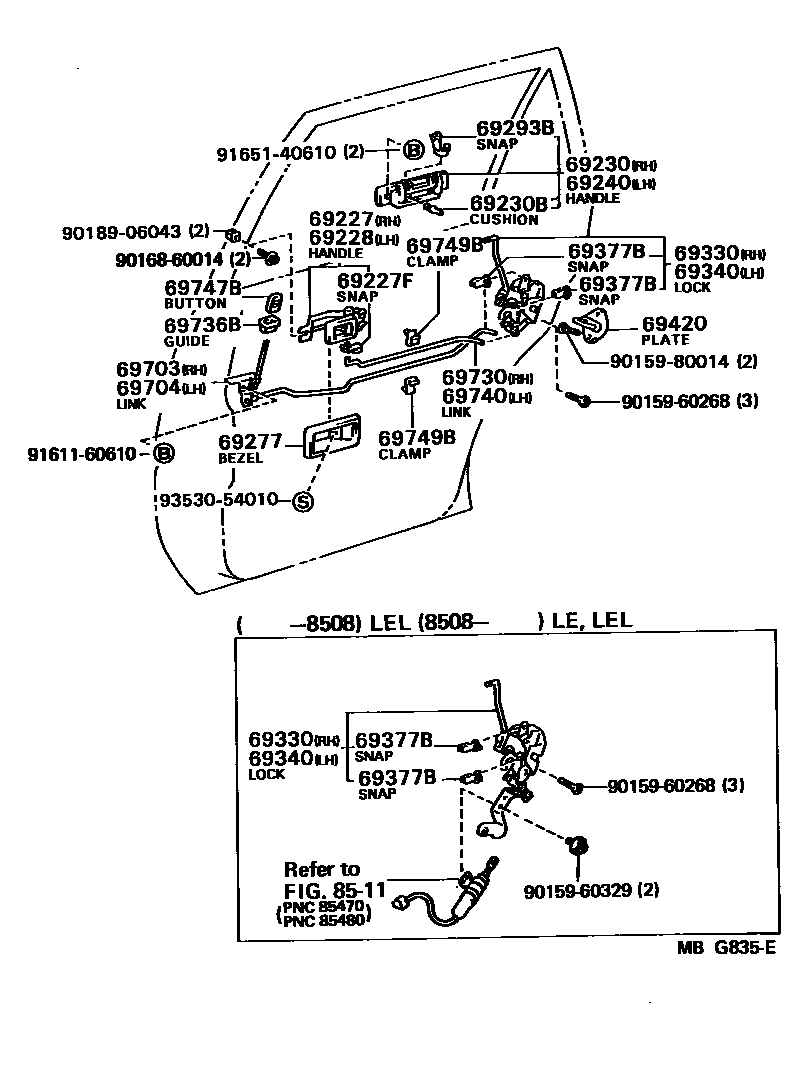

REAR DOOR LOCK & HANDLE
69227HANDLE, REAR DOOR INSIDE, RH
69227FSNAP(FOR REAR DOOR INSIDE HANDLE)
LH
RH
69228HANDLE, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69277BEZEL, REAR DOOR INSIDE HANDLE
69293BSNAP, REAR DOOR OUTSIDE HANDLE
LH
RH
69330LOCK ASSY, REAR DOOR, RH
W/O *EL
W/*EL
69340LOCK ASSY, REAR DOOR, LH
W/O *EL
W/*EL
69377BSNAP, REAR DOOR LOCK CONTROL ROD
RH
LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
69736BGUIDE, REAR DOOR LOCK LINK
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)
69749BCLAMP, REAR DOOR LOCK LINK
8511
9015960268
main90159-60268
9015960329
main90159-60329
9015980014
main90159-80014
9016860014
main90168-60014
9018906043
main90189-06043
9161160610
main91611-60610
9165140610
main91651-40610
9353054010
main93530-54010
28 parts on this diagram · 1 diagram in section
