INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

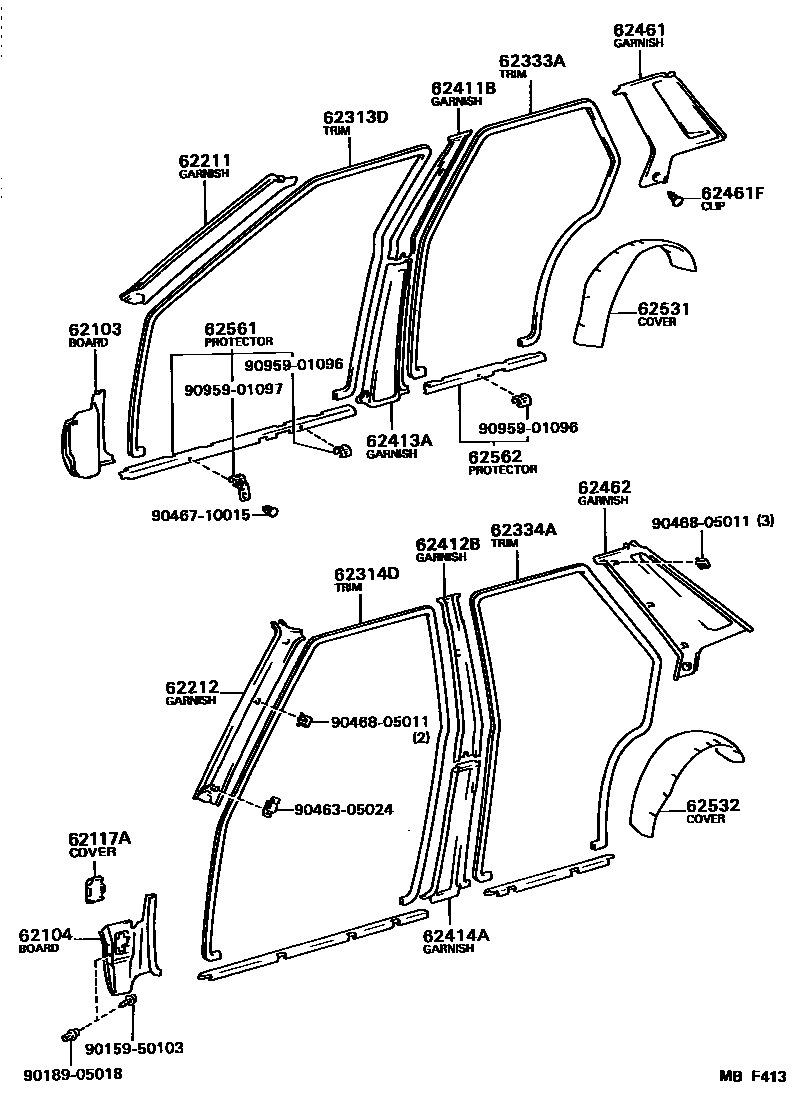

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62101-12130-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main62101-12130-03i198308-198707
GRAY,GRAY,TRIM1#
main62101-12130-04i198308-198707
BLUE,BLUE,TRIM8#
main62101-12130-06i198408-198707
BROWN,BROWN,TRIM4#
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62102-12130-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main62102-12130-03i198308-198707
GRAY,GRAY,TRIM1#
main62102-12130-04i198308-198707
BLUE,BLUE,TRIM8#
main62102-12130-06i198408-198707
BROWN,BROWN,TRIM4#
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main62117-12030-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main62117-12030-03i198308-198707
GRAY,GRAY,TRIM1#
main62117-12030-04i198308-198707
BLUE,BLUE,TRIM8#
main62117-12030-06i198408-198707
BROWN,BROWN,TRIM4#
62211GARNISH, FRONT PILLAR, RH
main62211-12160-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main62211-12160-03i198308-198707
GRAY,GRAY,TRIM1#
main62211-12160-04i198308-198707
BLUE,BLUE,TRIM8#
main62211-12160-06i198408-198707
BROWN,BROWN,TRIM4#
main62211-12170-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main62211-12170-03i198308-198707
GRAY,GRAY,TRIM1#
main62211-12170-04i198308-198707
BLUE,BLUE,TRIM8#
main62211-12170-06i198408-198707
BROWN,BROWN,TRIM4#
62212GARNISH, FRONT PILLAR, LH
main62212-12160-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main62212-12160-03i198308-198707
GRAY,GRAY,TRIM1#
main62212-12160-04i198308-198707
BLUE,BLUE,TRIM8#
main62212-12160-06i198408-198707
BROWN,BROWN,TRIM4#
main62212-12170-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main62212-12170-03i198308-198707
GRAY,GRAY,TRIM1#
main62212-12170-04i198308-198707
BLUE,BLUE,TRIM8#
main62212-12170-06i198408-198707
BROWN,BROWN,TRIM4#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-12110-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main62313-12110-03i198308-198707
GRAY,GRAY,TRIM1#
main62313-12110-04i198308-198707
BLUE,BLUE,TRIM8#
main62313-12110-06i198408-198707
BROWN,BROWN,TRIM4#
62314DTRIM, FRONT DOOR OPENING, LH
main62313-12110-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main62313-12110-03i198308-198707
GRAY,GRAY,TRIM1#
main62313-12110-04i198308-198707
BLUE,BLUE,TRIM8#
main62313-12110-06i198408-198707
BROWN,BROWN,TRIM4#
62333ATRIM, REAR DOOR OPENING, RH
main62333-12040-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main62333-12040-03i198308-198707
GRAY,GRAY,TRIM1#
main62333-12040-04i198308-198707
BLUE,BLUE,TRIM8#
main62333-12040-06i198408-198707
BROWN,BROWN,TRIM4#
62334ATRIM, REAR DOOR OPENING, LH
main62333-12040-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main62333-12040-03i198308-198707
GRAY,GRAY,TRIM1#
main62333-12040-04i198308-198707
BLUE,BLUE,TRIM8#
main62333-12040-06i198408-198707
BROWN,BROWN,TRIM4#
62411BGARNISH, CENTER PILLAR, UPPER RH
main62411-12290-02i198310-198408
MAROON,RED/MAROON,TRIM3#
main62411-12290-02i198308-198310
T=1.0,MAROON,RED/MAROON,TRIM3#
main62411-12290-03i198308-198310
T=1.0,GRAY,GRAY,TRIM1#
main62411-12290-03i198310-198707
GRAY,GRAY,TRIM1#
main62411-12290-04i198308-198310
T=1.0,BLUE,BLUE,TRIM8#
main62411-12290-04i198310-198707
BLUE,BLUE,TRIM8#
main62411-12290-06i198408-198707
BROWN,BROWN,TRIM4#
main62411-12310-02i198308-198310
T=0.9,MAROON,RED/MAROON,TRIM3#
sub62411-12290
main62411-12310-03i198308-198310
T=0.9,GRAY,GRAY,TRIM1#
sub62411-12290
main62411-12310-04i198308-198310
T=0.9,BLUE,BLUE,TRIM8#
sub62411-12290
62412BGARNISH, CENTER PILLAR, UPPER LH
main62412-12290-02i198310-198408
MAROON,RED/MAROON,TRIM3#
main62412-12290-02i198308-198310
T=1.0,MAROON,RED/MAROON,TRIM3#
main62412-12290-03i198310-198707
GRAY,GRAY,TRIM1#
main62412-12290-03i198308-198310
T=1.0,GRAY,GRAY,TRIM1#
main62412-12290-04i198310-198707
BLUE,BLUE,TRIM8#
main62412-12290-04i198308-198310
T=1.0,BLUE,BLUE,TRIM8#
main62412-12290-06i198408-198707
BROWN,BROWN,TRIM4#
main62412-12310-02i198308-198310
T=0.9,MAROON,RED/MAROON,TRIM3#
sub62412-12290
main62412-12310-03i198308-198310
T=0.9,GRAY,GRAY,TRIM1#
sub62412-12290
main62412-12310-04i198308-198310
T=0.9,BLUE,BLUE,TRIM8#
sub62412-12290
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-12150-02i198310-198408
MAROON,RED/MAROON,TRIM3#
main62413-12150-02i198308-198310
T=1.0,MAROON,RED/MAROON,TRIM3#
main62413-12150-03i198308-198310
T=1.0,GRAY,GRAY,TRIM1#
main62413-12150-03i198310-198707
GRAY,GRAY,TRIM1#
main62413-12150-04i198308-198310
T=1.0,BLUE,BLUE,TRIM8#
main62413-12150-04i198310-198707
BLUE,BLUE,TRIM8#
main62413-12150-06i198408-198707
BROWN,BROWN,TRIM4#
main62413-12160-02i198308-198310
T=1.2,MAROON,RED/MAROON,TRIM3#
sub62413-12150
main62413-12160-03i198308-198310
T=1.2,GRAY,GRAY,TRIM1#
sub62413-12150
main62413-12160-04i198308-198310
T=1.2,BLUE,BLUE,TRIM8#
sub62413-12150
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-12150-02i198310-198408
MAROON,RED/MAROON,TRIM3#
main62414-12150-02i198308-198310
T=1.0,MAROON,RED/MAROON,TRIM3#
main62414-12150-03i198308-198310
T=1.0,GRAY,GRAY,TRIM1#
main62414-12150-03i198310-198707
GRAY,GRAY,TRIM1#
main62414-12150-04i198308-198310
T=1.0,BLUE,BLUE,TRIM8#
main62414-12150-04i198310-198707
BLUE,BLUE,TRIM8#
main62414-12150-06i198408-198707
BROWN,BROWN,TRIM4#
main62414-12160-02i198308-198310
T=1.2,MAROON,RED/MAROON,TRIM3#
sub62414-12150
main62414-12160-03i198308-198310
T=1.2,GRAY,GRAY,TRIM1#
sub62414-12150
main62414-12160-04i198308-198310
T=1.2,BLUE,BLUE,TRIM8#
sub62414-12150
62461GARNISH, ROOF SIDE TRIM, RH
main62405-12040-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main62405-12040-03i198308-198707
GRAY,GRAY,TRIM1#
main62405-12040-04i198308-198707
BLUE,BLUE,TRIM8#
main62405-12040-06i198408-198707
BROWN,BROWN,TRIM4#
main62471-12190-02i198308-198408
MAROON,RED/MAROON,TRIM3#
sub62471-12190
main62471-12190-03i198308-198707
GRAY,GRAY,TRIM1#
sub62471-12190
main62471-12190-04i198308-198707
BLUE,BLUE,TRIM8#
sub62471-12190
main62471-12190-06i198408-198707
BROWN,BROWN,TRIM4#
sub62471-12190
62461FCLIP (FOR ROOF SIDE TRIM GARNISH)
main90467-06049-02i198308-198408
MAROON,RED/MAROON,TRIM3#
sub90467-06049
main90467-06049-03i198308-198707
GRAY,GRAY,TRIM1#
sub90467-06049
main90467-06049-04i198308-198707
BLUE,BLUE,TRIM8#
sub90467-06049
main90467-06049-06i198408-198707
BROWN,BROWN,TRIM4#
sub90467-06049
62462GARNISH, ROOF SIDE TRIM, LH
main62406-12040-02i198308-198408
MAROON,RED/MAROON,TRIM3#
main62406-12040-03i198308-198707
GRAY,GRAY,TRIM1#
main62406-12040-04i198308-198707
BLUE,BLUE,TRIM8#
main62406-12040-06i198408-198707
BROWN,BROWN,TRIM4#
main62472-12200-02i198308-198408
MAROON,RED/MAROON,TRIM3#
sub62472-12200
main62472-12200-03i198308-198707
GRAY,GRAY,TRIM1#
sub62472-12200
main62472-12200-04i198308-198707
BLUE,BLUE,TRIM8#
sub62472-12200
main62472-12200-06i198408-198707
BROWN,BROWN,TRIM4#
sub62472-12200
62531COVER, WHEEL HOUSE TRIM, RH
main62613-12130-03i198308-198707
GRAY,GRAY,TRIM1#
62532COVER, WHEEL HOUSE TRIM, LH
main62614-12100-03i198308-198707
GRAY,GRAY,TRIM1#
62561PROTECTOR, ROCKER PANEL, INNER FRONT
main62561-12030i198308-198707
RH
main62562-12010i198308-198707
LH
62562PROTECTOR, ROCKER PANEL, INNER REAR
main62563-12020i198308-198707
RH
main62564-12020i198308-198707
LH
9015950103
main90159-50103
9018905018
main90189-05018
9046305024
main90463-05024
9046710015
main90467-10015
9046805011
main90468-05011
9095901096
main90959-01096
9095901097
main90959-01097

27 parts on this diagram · 2 diagrams in section
