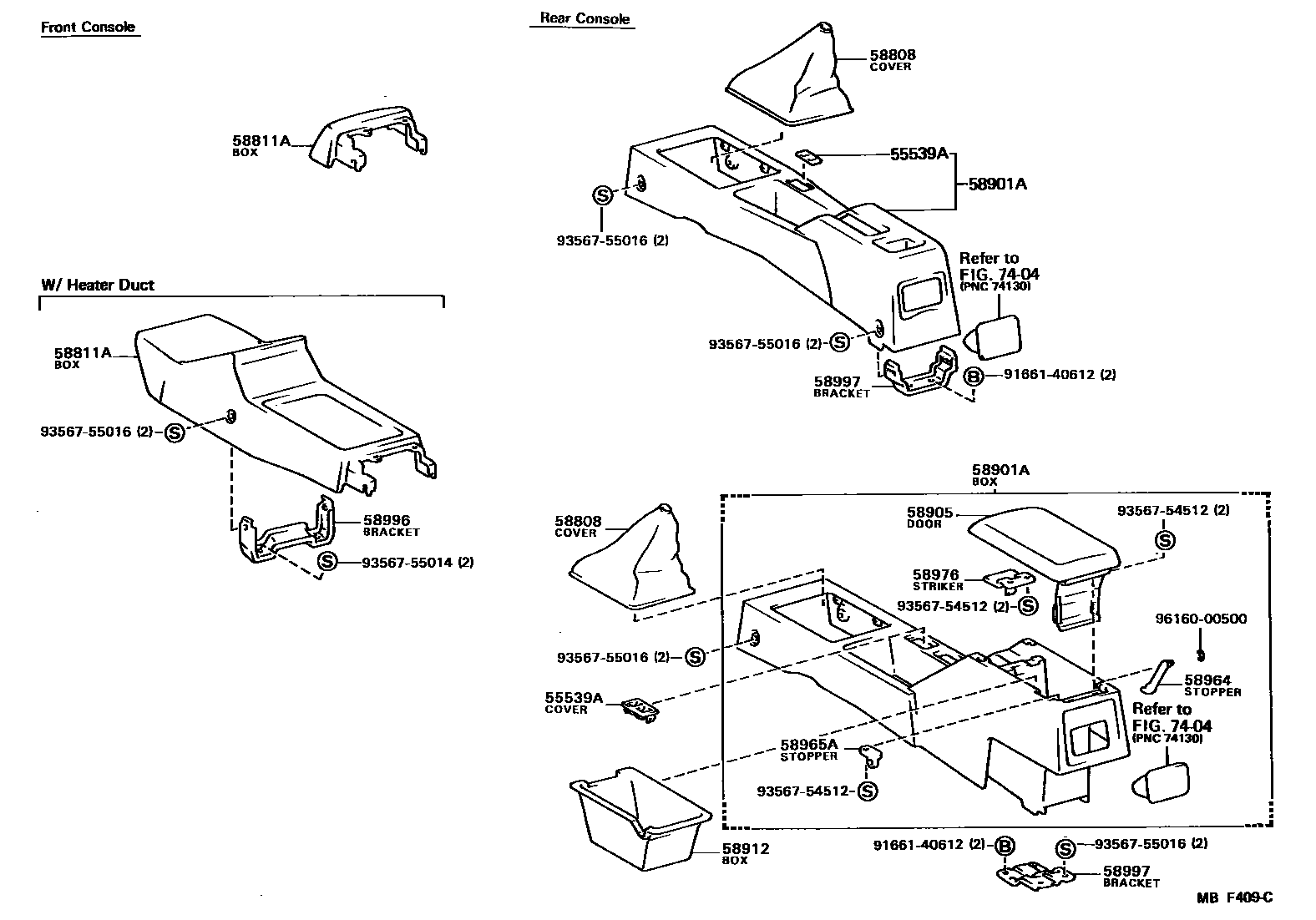

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
BLUE,BLUE,TRIM8#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
58811ABOX, CONSOLE, FRONT
MAROON,RED/MAROON,TRIM3#; W/HEATER REAR DUCT,MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#; W/HEATER REAR DUCT,GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#; W/HEATER REAR DUCT,BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#; W/HEATER REAR DUCT,BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#; W/HEATER DUCT,GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#; W/HEATER DUCT,BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#; W/HEATER DUCT,BROWN,BROWN,TRIM4#
W/O HEATER DUCT,GRAY,GRAY,TRIM1#
W/O HEATER DUCT,BLUE,BLUE,TRIM8#
W/O HEATER DUCT,BROWN,BROWN,TRIM4#
W/O HEATER REAR DUCT,MAROON,RED/MAROON,TRIM3#
W/O HEATER REAR DUCT,GRAY,GRAY,TRIM1#
W/O HEATER REAR DUCT,BLUE,BLUE,TRIM8#
W/O HEATER REAR DUCT,BROWN,BROWN,TRIM4#
58901ABOX SUB-ASSY, CONSOLE, REAR
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
58912BOX, REAR CONSOLE, NO.2
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58996BRACKET, CONSOLE BOX MOUNTING, NO.1
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
7404ASH RECEPTACLE
9166140612
main91661-40612
9356754512
main93567-54512
9356755014
main93567-55014
9356755016
main93567-55016
9616000500
main96160-00500
17 parts on this diagram · 2 diagrams in section
