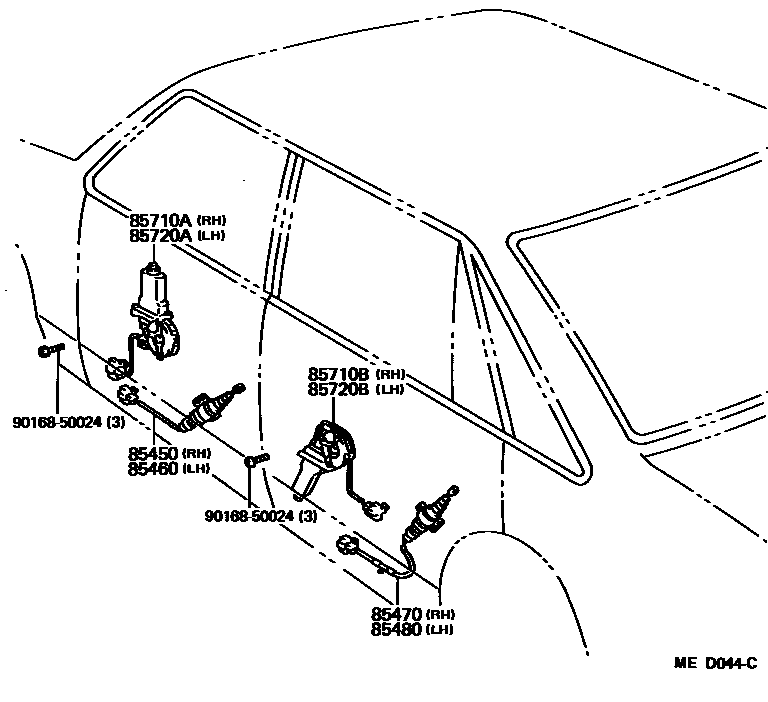

DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-12060iAE82..(GT,SE)..SA198605-198804

main85450-12101iAE82..RHD..EUG198608-198704

main85450-12140iAE82..LHD..GT..EUG198608-198704

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-12070iEE80..4DS..RHD..5F..GL..GEN198605-198804

main85450-12111iAE82..LHD..GT..EUG198608-198704

main85450-12150iAE82..RHD..EUG198608-198704

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85450-12080iEE80..4DS..RHD..5F..GL..GEN198605-198804

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85450-12090iAE82..(GT,SE)..SA198605-198804

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-12030iAE82..GT..EUG198605-198804

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85710-12040iEE80..4DS..RHD..5F..GL..GEN198605-198804

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-12030iAE82..GT..EUG198605-198804

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85720-12040iEE80..4DS..RHD..5F..GL..GEN198605-198804

9016850024

main90168-50024

9 parts on this diagram · 1 diagram in section
