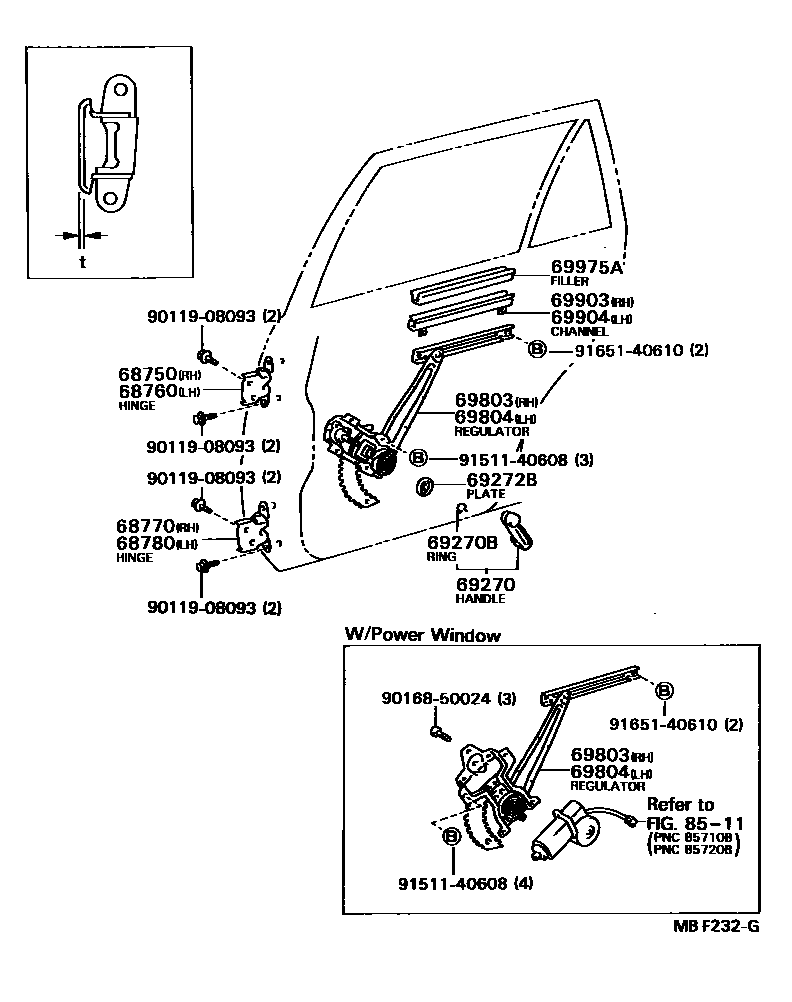

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20050iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

T=4.0

main68750-32010iAE8#,CE80198305-198807

T=5.0

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20040iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

T=4.0

main68760-32010iAE82,CE80198305-198807

T=5.0

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-12030iAE8#,CE80198305-198807

T=5.0

main68770-12040iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

T=4.0

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-12020iAE82,CE80198305-198807

T=5.0

main68780-12030iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

T=4.0

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-10040-10iAE8#,CE80,EE80..(4DS,5D,5DS)..(ARL,GEN,SAA)198505-198807

BROWN,SEPIA BROWN,TRIM4#

main69260-10040-33iAE8#,CE80,EE80..(4DS,5D,5DS)..(ARL,GEN,SAA)198505-198807

GRAY,SHADOW GRAY,TRIM1#

main69260-10040-44iAE82,CE80,EE80..(4DS,5D)..(GL,STD,XL)..(GEN,SAA)198505-198707

BLUE,BLUE,TRIM8#

main69260-12060-03iAE8#,CE80..GEN,SAA198305-198401

GRAY,GRAY,TRIM1#

main69260-12060-04iAE8#,CE80..GEN,SAA198305-198401

BLUE,BLUE,TRIM8#

main69260-12060-05iAE8#,CE80..GEN,SAA198305-198401

BEIGE,BEIGE,TRIM3#

main69260-12070-03iAE8#,CE80..EUR198305-198401

GRAY,GRAY,TRIM1#

main69260-12070-04iAE8#,CE80..EUR198305-198401

BLUE,BLUE,TRIM8#

main69260-12070-05iAE8#,CE80..EUR198305-198401

BEIGE,BEIGE,TRIM3#

main69260-14020-04iAE8#,CE80,EE80..(4DS,5D)..(ARL,GEN,SAA)198401-198505

BLUE,BLUE,TRIM8#

main69260-14020-12iAE8#,CE80..GEN,SAA198401-198408

MAROON,RED/MAROON,TRIM3#

main69260-14020-23iAE8#,CE80..GEN,SAA198305-198401

GRAY,GRAY,TRIM1#

main69260-14020-25iAE8#,CE80..GEN,SAA198305-198401

BEIGE,BEIGE,TRIM3#

main69260-14020-33iAE8#,CE80,EE80..(4DS,5D,5DS)..(ARL,GEN,SAA)198401-198505

GRAY,GRAY,TRIM1#

main69260-14020-34iAE8#,CE80..GEN,SAA198305-198401

BLUE,BLUE,TRIM8#

main69260-14020-36iAE8#,CE80,EE80..(4DS,5D)..(ARL,GEN,SAA)198408-198505

BROWN,BROWN,TRIM4#

main69260-14030-04iAE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD)..(EUR,SA)198401-198807

BLUE,BLUE,TRIM8#

main69260-14030-12iAE8#,CE80..EUR,SA198401-198408

MAROON,RED/MAROON,TRIM3#

main69260-14030-23iAE8#,CE80..EUR198305-198401

GRAY,GRAY,TRIM1#

main69260-14030-25iAE8#,CE80..EUR198305-198401

BEIGE,BEIGE,TRIM3#

main69260-14030-26iAE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,SA)198408-198807

BROWN,SEPIA BROWN,TRIM4#

main69260-14030-33iAE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,SA)198401-198807

GRAY,GRAY,TRIM1#

main69260-14030-34iAE8#,CE80..EUR198305-198401

BLUE,BLUE,TRIM8#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-16010iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12050iEE80..4DS..RHD..5F..GL..GEN198605-198807

W/*PW

main69830-12090iAE8#,CE80,EE80..4DS,5D,5DS198305-198606

main69830-12120iAE8#,CE80,EE80..4DS,5D,5DS198606-198807

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12050iAE82..(GT,SE)..SA198605-198807

W/*PW

main69840-12090iAE8#,CE80,EE80..4DS,5D,5DS198305-198606

main69840-12120iAE8#,CE80,EE80..4DS,5D,5DS198606-198807

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-12080iAE82,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA,SAA)198305-198807

W/GLASS,T=3.5

main69905-12090iAE8#,CE80,EE80..(4DS,5D,5DS)..(ARL,GEN)198305-198807

W/GLASS,T=4.0

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-12070iAE8#,CE80..EUR,GEN,SAA198305-198807

W/GLASS,T=3.5

main69906-12080iAE8#,CE80,EE80..(4DS,5D,5DS)..(ARL,GEN,SA)198305-198807

W/GLASS,T=4.0

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-22020iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9011908093

main90119-08093

9016850024

main90168-50024

9151140608

main91511-40608

9165140610

main91651-40610

17 parts on this diagram · 1 diagram in section
