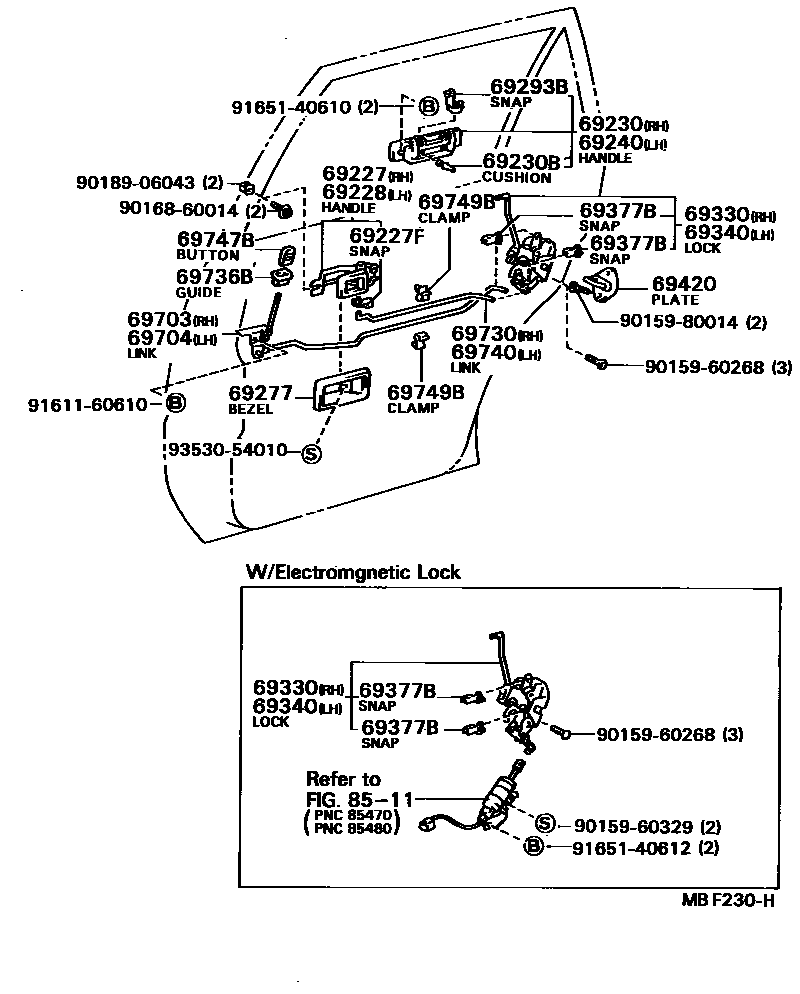

REAR DOOR LOCK & HANDLE

69227HANDLE, REAR DOOR INSIDE, RH

main69206-12070-02iAE8#,CE80..DX,GL,XL198305-198408

MAROON,RED/MAROON,TRIM3#

sub69206-16040

sub69206-12070

main69206-12070-03iAE8#,CE80..DX,GL,XL198305-198807

GRAY,GRAY,TRIM1#

sub69206-16040

sub69206-12070

main69206-12070-04iAE8#,CE80..DX,GL,XL198305-198807

BLUE,BLUE,TRIM8#

sub69206-16040

sub69206-12070

main69206-12070-13iAE80..STD198305-198401

GRAY,GRAY,TRIM1#

sub69206-16040

sub69206-12070

main69206-12070-14iAE80..STD198305-198401

BLUE,BLUE,TRIM8#

sub69206-16040

sub69206-12070

main69206-12070-15iAE80..STD198305-198401

BEIGE,BEIGE,TRIM3#

sub69206-16040

sub69206-12070

main69206-12070-16iAE8#,CE80,EE80..4DS,5D,5DS198408-198807

BROWN,SEPIA BROWN,TRIM4#

sub69206-16040

sub69206-12070

69227FSNAP(FOR REAR DOOR INSIDE HANDLE)

main69759-20060iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

LH

main69759-20070iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

RH

69228HANDLE, REAR DOOR INSIDE, LH

main69205-12070-02iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

sub69205-12070

main69205-12070-03iAE8#,CE80..DX,GL,XL198305-198807

GRAY,GRAY,TRIM1#

sub69205-12070

main69205-12070-04iAE8#,CE80..DX,GL,XL198305-198807

BLUE,BLUE,TRIM8#

sub69205-12070

main69205-12070-13iAE80..STD198305-198401

GRAY,GRAY,TRIM1#

sub69205-12070

main69205-12070-14iAE80..STD198305-198401

BLUE,BLUE,TRIM8#

sub69205-12070

main69205-12070-15iAE80..STD198305-198401

BEIGE,BEIGE,TRIM3#

sub69205-12070

main69205-12070-16iAE8#,CE80,EE80..4DS,5D,5DS198408-198807

BROWN,SEPIA BROWN,TRIM4#

sub69205-12070

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-12070iAE8#..ARL198305-198807

main69230-12080iAE82,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA,SAA)198505-198807

main69230-12090iEE80..4DS..RHD..5F..GL..GEN198508-198704

INDONESIA SPEC

main69230-12090iEE80..4DS..RHD..5F..XL198611-198704

MALAYSIA SPEC

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-12070iAE8#..ARL198305-198807

main69240-12080iAE82,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA,SAA)198505-198807

main69240-12090iEE80..4DS..RHD..5F..XL198611-198704

MALAYSIA SPEC

main69240-12090iEE80..4DS..RHD..5F..GL..GEN198508-198704

INDONESIA SPEC

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-32020-04iAE82..4DS..4FC..ARL;AE8#,CE80,EE80..(4DS,5D)..(DX,GL,SE,STD,XL)198305-198807

BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

main69277-32020-12iAE8#,CE80198305-198408

MAROON,RED/MAROON,TRIM3#

sub69277-32020

sub69277-89104

main69277-32020-23iAE80..STD198305-198401

GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

main69277-32020-24iAE80..STD198305-198401

BLUE,BLUE,TRIM8#

sub69277-32020

sub69277-89104

main69277-32020-25iAE80..STD198305-198401

BEIGE,BEIGE,TRIM3#

sub69277-32020

sub69277-89104

main69277-32020-26iAE8#,CE80,EE80..4DS,5D,5DS198408-198807

BROWN,BROWN,TRIM4#

sub69277-32020

sub69277-89104

main69277-32020-33iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

GRAY,GRAY,TRIM1#

sub69277-32020

sub69277-89104

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12030iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

LH

main69293-12040iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

RH

69330LOCK ASSY, REAR DOOR, RH

main69330-12080iAE82,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA)198505-198807

main69330-12090iEE80..SAA198505-198707

main69330-12100iAE8#,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA)198305-198605

main69330-12110iAE8#..ARL198308-198807

main69330-12150iEE80..4DS..RHD..5F..GL..GEN198605-198807

W/*EL

69340LOCK ASSY, REAR DOOR, LH

main69340-12080iAE82,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SA)198505-198807

main69340-12090iEE80..SAA198505-198707

main69340-12100iAE82,EE80..SA198305-198605

main69340-12110iAE8#,EE80..ARL,SAA198308-198807

main69340-12150iEE80..4DS..RHD..5F..GL..GEN198605-198807

W/*EL

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69759-20040iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

LH

main69759-20050iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

RH

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-12020iAE8#,CE80198305-198410

sub69770-12030

main69770-12030iAE8#,CE80,EE80..4DS,5D,5DS198410-198807

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-12020iAE8#,CE80198305-198410

sub69780-12030

main69780-12030iAE8#,CE80,EE80..4DS,5D,5DS198410-198807

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-12030iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

69736BGUIDE, REAR DOOR LOCK LINK

main69736-12030iAE8#..ARL198408-198807

main69736-22021iAE8#,CE80..DX,GL,XL198305-198408

main69751-20031-01iEE80..4DS..STD..SA198305-198807

BLACK

sub69751-20031

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-12040iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-32010-01iAE8#,CE80,EE80..4DS,5D,5DS198305-198605

BLACK,BLACK

sub69741-32010

sub69741-90K00

main69741-90K00-01iAE82,CE80,EE80..(4DS,5D,5DS)..(EUR,GEN,SAA)198505-198807

BLACK,BLACK

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749BCLAMP, REAR DOOR LOCK LINK

main69749-20010iAE8#,CE80,EE80..4DS,5D,5DS198305-198807

8511

9015960268

main90159-60268

9015960329

main90159-60329

9015980014

main90159-80014

9016860014

main90168-60014

9018906043

main90189-06043

9161160610

main91611-60610

9165140610

main91651-40610

9165140612

main91651-40612

9353054010

main93530-54010

29 parts on this diagram · 1 diagram in section
