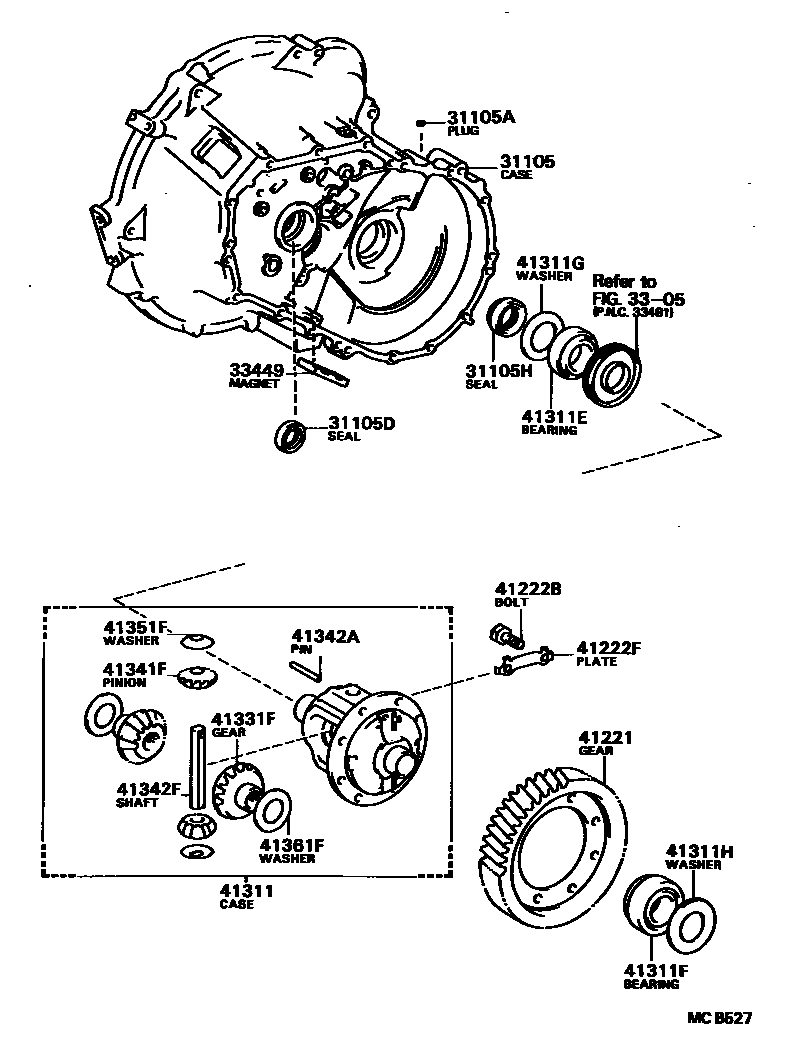

FRONT AXLE HOUSING & DIFFERENTIAL
31105CASE SUB-ASSY, TRANSAXLE(MTM)
sub31105-32013
sub31115-12020
sub31115-12040
sub11355-15060
sub11355-55012
sub11361-16020
sub16264-16011
sub16268-15050
sub16268-15060
sub16268-16070
sub16278-16060
sub16322-15030
sub16322-16011
sub90105-10051
sub91611-61025
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
3305
41221GEAR, FRONT DIFFERENTIAL RING
INDONESIA SPEC
sub41221-12310
sub41221-12320
sub41221-12330
sub41221-12360
sub41221-12340
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41311CASE, FRONT DIFFERENTIAL
sub41301-12051
sub41301-12090
sub41301-12100
sub41301-17020
sub41301-12101
sub41301-17021
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
sub90366-40064
sub90368-38002
sub90368-40002
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.60,T=1.60
T=1.65,T=1.65
T=1.70,T=1.70
T=1.75,T=1.75
T=1.80,T=1.80
T=1.85,T=1.85
T=1.90,T=1.90
T=1.95,T=1.95
T=2.00,T=2.00
T=2.00
T=2.05,T=2.05
T=2.10,T=2.10
T=2.15,T=2.15
T=2.20,T=2.20
T=2.25,T=2.25
T=2.30,T=2.30
T=2.35,T=2.35
T=2.40,T=2.40
T=2.45,T=2.45
T=2.50,T=2.50
T=2.55,T=2.55
T=2.60,T=2.60
T=2.65,T=2.65
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.10
T=2.00,MARK V,T=2.00
T=2.35,MARK A,T=2.35
T=2.40,MARK B,T=2.40
T=2.45,MARK C,T=2.45
T=2.50,MARK D,T=2.50
T=2.55,MARK E,T=2.55
T=2.60,MARK F,T=2.60
T=2.65,MARK G,T=2.65
T=2.70,MARK H,T=2.70
T=2.75,MARK J,T=2.75
T=2.80,MARK K,T=2.80
T=2.85,MARK L,T=2.85
T=2.90,MARK M,T=2.90
T=2.95,MARK N,T=2.95
T=3.00,MARK P,T=3.00
T=2.10,MARK Q,T=2.10
T=2.15,MARK R,T=2.15
T=2.20,MARK S,T=2.20
T=2.25,MARK T,T=2.25
T=2.30,MARK U,T=2.30
T=2.05,MARK W,T=2.05
41331FGEAR, FRONT DIFFERENTIAL SIDE
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.95,T=0.95
T=1.00,T=1.00
T=1.05,T=1.05
T=1.10,T=1.10
T=1.15,T=1.15
T=1.20,T=1.20
T=1.00,MARK 02,T=1.0
T=1.10,MARK 03,T=1.1
T=1.20,MARK 04,T=1.2
T=0.95,MARK 14,T=0.95
T=1.05,MARK 15,T=1.05
T=1.15,MARK 16,T=1.15
20 parts on this diagram · 6 diagrams in section
