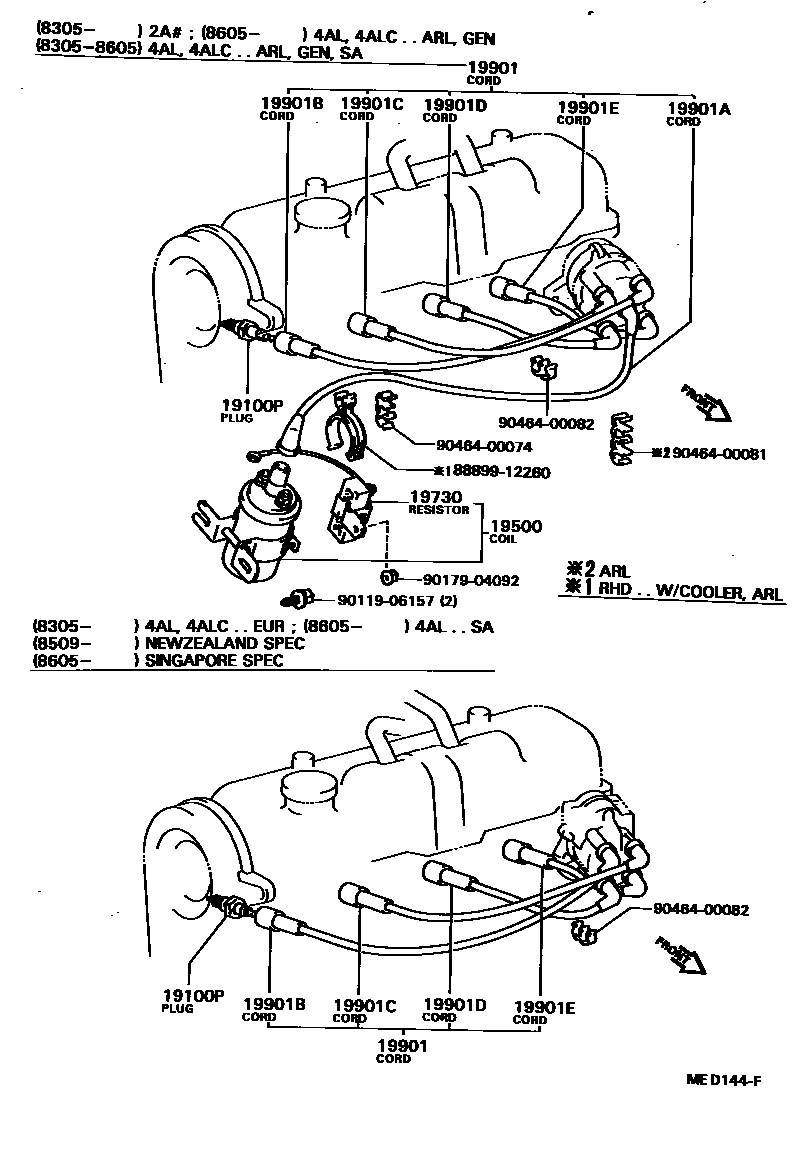

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19100PPLUG, SPARK

main90919-01059i2AL,4AL..AE8#..GEN,SA,SAA198305-198507

W16EX-U,W16EX-U

sub90919-01064

main90919-01064i4ALC..AE82..SDZ;4AL..AE82..EUR,GEN198305-198807

W16EXR-U,W16EXR-U

main90919-01083i2EL..EE80..GEN,SAA198503-198505

W20EX-U,W20EX-U

main90919-01084i2EL..EE80..SA198502-198807

W20EXR-U,W20EXR-U

main90919-01091i4AL..AE82..4DS..5F..GL..EUG198504-198505

W16EXR-U11,W16EXR-U11,FRG SPEC

main90919-01091i4ALC..AE82..FRG198508-198704

W16EXR-U11,W16EXR-U11

main90919-01094i2ALC,4ALC..AE8#..ARL198411-198807

W16EX-U11,W16EX-U11

main90919-01121i4AGELC..AE82198511-198807

PQ16R,PQ16R

main90919-01125i2EL#..EE80..EUR198410-198704

W20EXR-U11,W20EXR-U11

main90919-01131i4AGEL..AE82198410-198807

Q20R-U11,Q20R-U11

main90919-01137i2EL..EE80..GEN,SAA198410-198503

W20EX-U

sub90919-01083

19500COIL ASSY, IGNITION

main90919-02113i4AG#..AE82198410-198807

main90919-02148i4AL..AE82..GEN,SA198305-198807

19730RESISTOR, IGNITION COIL

main90919-04040i2EL..EE80..GEN,SAA198305-198707

sub90919-04041

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21327i4AL#..AE82..ARL,GEN198305-198807

sub90919-29035

main90919-21350i4AGEL..AE82..EUR,GEN198410-198704

sub90919-29195

main90919-21365i4AG#..AE82..ARL,SA198410-198708

main90919-21366i2EL..EE80..GEN,SAA198410-198707

main90919-21418i4AG#..AE82198708-198807

main90919-22105i4AL..AE82..5D..RHD..5F..GEN198605-198704

SINGAPORE SPEC

main90919-22105i4AL#..AE82..EUG,SDZ198305-198807

main90919-22105i4AL..AE82..RHD..GEN198509-198704

NEW ZEALAND SPEC

main90919-22147i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main90919-22147i4ALC..AE82..FRG198508-198704

main90919-22168i2EL#..EE80..EUR198410-198704

sub90919-22167

19901ACORD, COIL RESISTIVE

main90919-13214i2AL#..AE80198305-198807

sub90919-13483

main90919-13239i4AGEL..AE82..EUR,GEN198410-198807

sub90919-13496

main90919-13240i2EL..EE80..GEN,SA,SAA198410-198707

main90919-13245i4AG#..AE82..ARL,SA198410-198708

sub90919-13479

main90919-13245i4AGEL..AE82..5D..GEN198509-198704

NEW ZEALAND SPEC

sub90919-13479

main90919-13280i4AG#..AE82198708-198807

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12356i4AL..AE82..SA198305-198807

main90919-12356i4AL..AE82..RHD..GEN198509-198704

NEW ZEALAND SPEC

main90919-12356i4AL..AE82..5D..RHD..5F..GEN198605-198704

SINGAPORE SPEC

main90919-12506i2AL#..AE80198305-198807

main90919-12514i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main90919-12514i4ALC..AE82..FRG198508-198704

main90919-12550i4AG#..AE82198410-198708

main90919-12606i2EL#..EE80198410-198807

SUMITOMO

sub90919-12912

main90919-12607i2EL#..EE80198410-198807

YAZAKI

sub90919-12606

main90919-12733i4AG#..AE82198708-198807

sub90919-12737

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12357i4AL..AE82..SA198305-198807

main90919-12357i4AL..AE82..RHD..GEN198509-198704

NEW ZEALAND SPEC

main90919-12357i4AL..AE82..5D..RHD..5F..GEN198605-198704

SINGAPORE SPEC

main90919-12507i4AL#..AE82..ARL,GEN,SA198305-198807

main90919-12515i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main90919-12515i4ALC..AE82..FRG198508-198704

main90919-12551i4AG#..AE82198410-198708

main90919-12569i2EL#..EE80198410-198801

SUMITOMO

sub90919-12775

main90919-12569i2EL..EE80198801-198807

sub90919-12775

main90919-12573i2EL#..EE80198410-198801

YAZAKI

sub90919-12569

main90919-12734i4AG#..AE82198708-198807

sub90919-12738

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12358i4AL..AE82..5D..RHD..5F..GEN198605-198704

SINGAPORE SPEC

main90919-12358i4AL..AE82..RHD..GEN198509-198704

NEW ZEALAND SPEC

main90919-12358i4AL..AE82..SA198305-198807

main90919-12475i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main90919-12475i4ALC..AE82..FRG198508-198704

main90919-12508i4AL#..AE82..ARL,GEN,SA198305-198807

main90919-12552i4AG#..AE82198410-198708

main90919-12570i2EL#..EE80198410-198807

SUMITOMO

sub90919-12776

main90919-12574i2EL#..EE80198410-198807

YAZAKI

sub90919-12570

main90919-12735i4AG#..AE82198708-198807

sub90919-12739

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12359i4AL..AE82..SA198305-198807

main90919-12359i4AL..AE82..RHD..GEN198509-198704

NEW ZEALAND SPEC

main90919-12359i4AL..AE82..5D..RHD..5F..GEN198605-198704

SINGAPORE SPEC

main90919-12476i4AL..AE82..4DS..5F..GL..EUG198504-198505

FRG SPEC

main90919-12476i4ALC..AE82..FRG198508-198704

main90919-12509i4AL#..AE82..ARL,GEN198305-198807

main90919-12553i4AG#..AE82198410-198708

main90919-12571i2EL#..EE80198410-198807

SUMITOMO

sub90919-12777

main90919-12575i2EL#..EE80198410-198807

YAZAKI

sub90919-12571

main90919-12736i4AG#..AE82198708-198807

sub90919-12740

8889912260COVER, EVAPORATOR

main88899-12260

9011906157

main90119-06157

9017904092

main90179-04092

9046400074

main90464-00074

9046400081

main90464-00081

9046400082

main90464-00082

15 parts on this diagram · 4 diagrams in section
