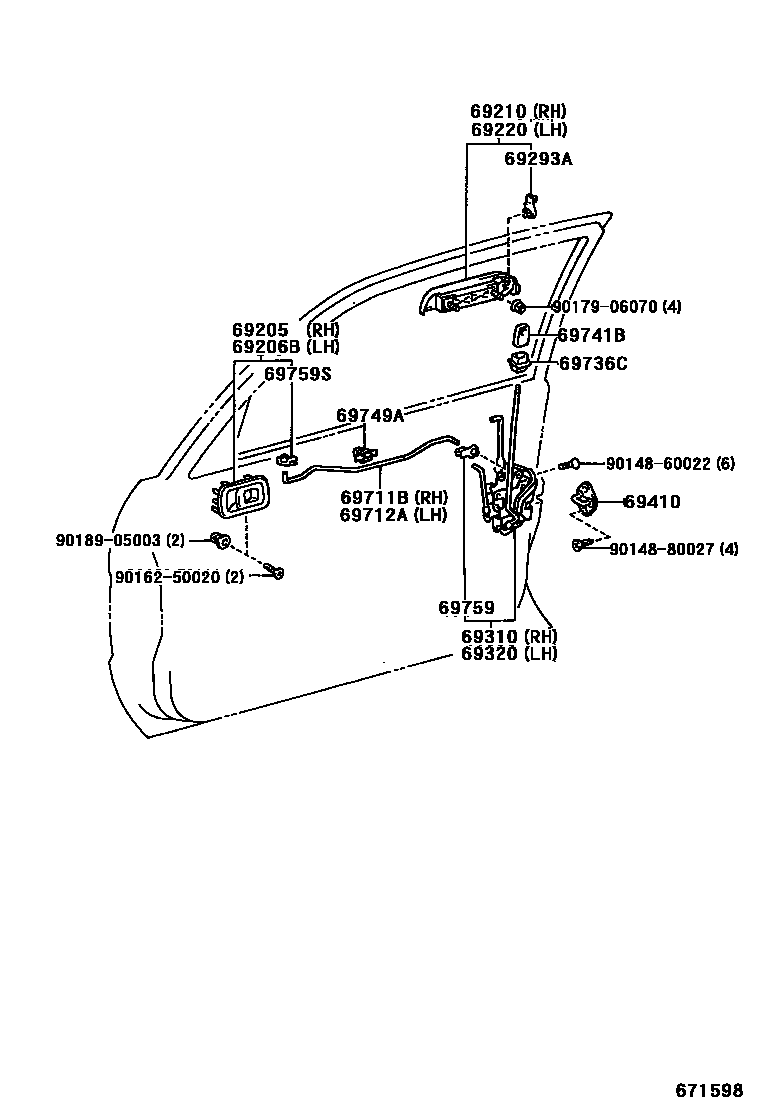

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
sub69210-16120
SUPER WHITE 2,040
BLACK ME,205
SUPER RED II,3E5
TURQUOISE M.M.,756
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
sub69220-16120
SUPER WHITE 2,040
BLACK ME,205
SUPER RED II,3E5
TURQUOISE M.M.,756
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
BROWN
PINK
69310LOCK ASSY, FRONT DOOR, RH
W(POWER WINDOW)
PUERTORICO SPEC & W(POWER WINDOW)
PUERTORICO SPEC
69320LOCK ASSY, FRONT DOOR, LH
W(POWER WINDOW)
PUERTORICO SPEC & W(POWER WINDOW)
PUERTORICO SPEC
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69736CGUIDE, FRONT DOOR LOCKING LINK
69741BKNOB, FRONT DOOR LOCK CONTROL
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
ORANGE
PINK
9014860022
main90148-60022
9014880027
main90148-80027
9016250020
main90162-50020
9017906070
main90179-06070
9018905003
main90189-05003
20 parts on this diagram · 1 diagram in section
