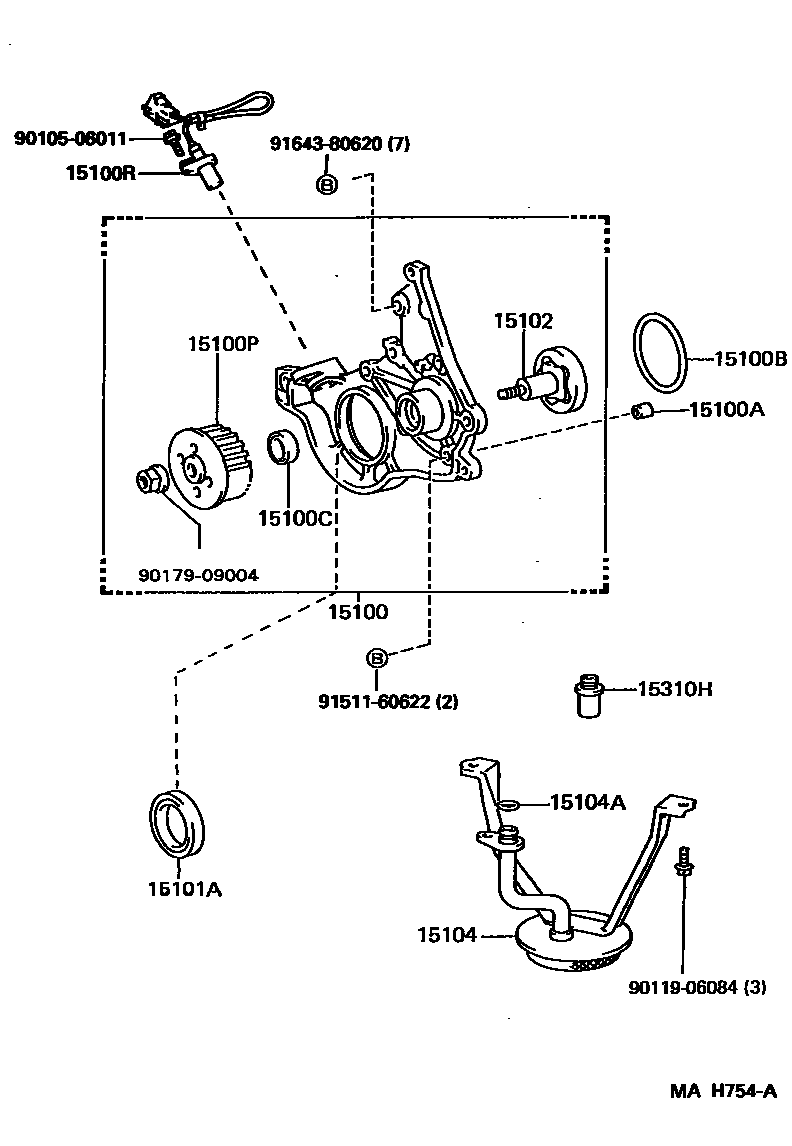

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-11110i5EFE..EL54199508

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001×2i5EFE..EL54199508

15100BRING, O(FOR OIL PUMP)

main90301-62006i5EFE..EL54199508

15100CSEAL(FOR OIL PUMP)

main90029-21020i5EFE..EL54199508

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-11020i5EFE..EL54199508

15100RSENSOR, CRANK POSITION

main90919-05018i5EFE..EL54199508

15101ASEAL(FOR CRANKSHAFT)

main90311-35035i5EFE..EL54199508-199604

main90311-35040i5EFE..EL54199604

15102ROTOR SET, OIL PUMP

main15102-11080i5EFE..EL54199508

15104STRAINER SUB-ASSY, OIL

main15104-11180i5EFE..EL54199508

15104ARING, O(FOR OIL STRAINER)

main96721-24015i5EFE..EL54199508

15310HREGULATOR ASSY, OIL

main15310-10010i5EFE..EL54199508

9010506011

main90105-06011

9011906084

main90119-06084

9017909004

main90179-09004

9151160622

main91511-60622

9164380620

main91643-80620

16 parts on this diagram · 1 diagram in section
