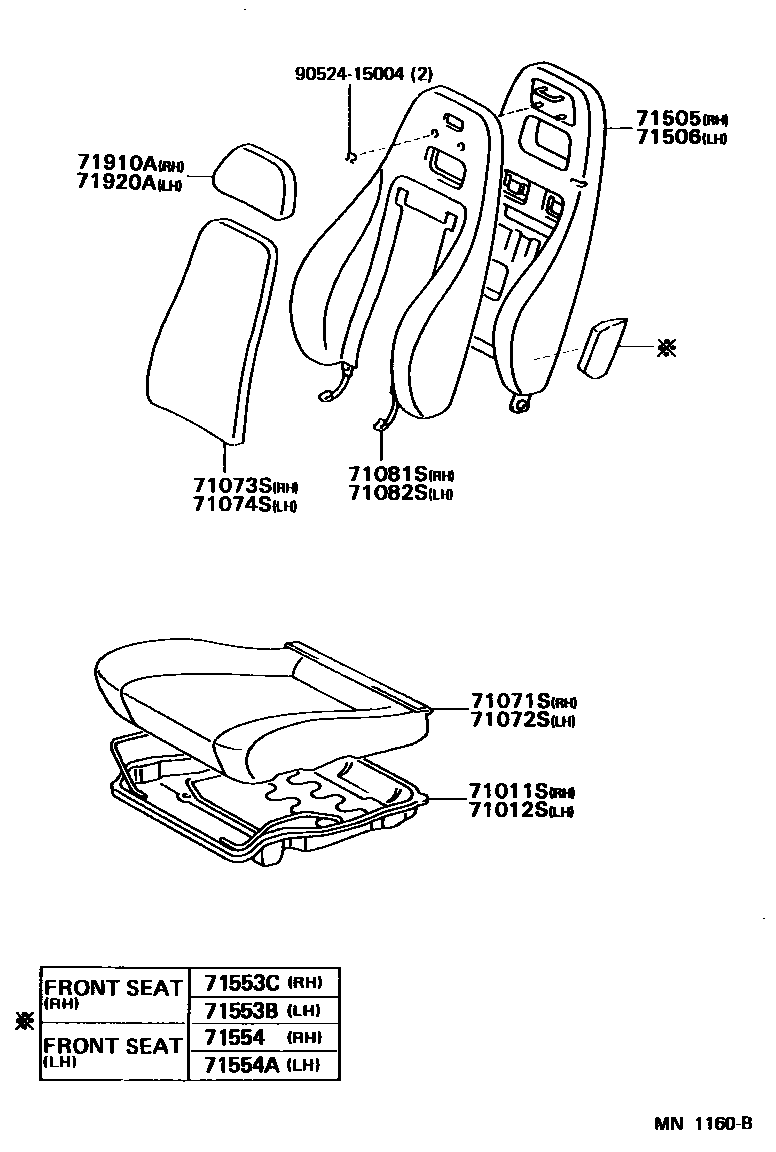

FRONT SEAT & SEAT TRACK
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
GRAY,TRIM2#
GRAYISH BLUE,TRIM8#
GRAY,TRIM2#
EISEN BLUE,TRIM8#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
GRAY,TRIM2#
GRAYISH BLUE,TRIM8#
GRAY,TRIM2#
EISEN BLUE,TRIM8#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
GRAY,TRIM2#
GRAYISH BLUE,TRIM8#
GRAY,TRIM2#
GRAY,TRIM2#
EISEN BLUE,TRIM8#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
GRAY,TRIM2#
GRAYISH BLUE,TRIM8#
GRAY,TRIM2#
GRAY,TRIM2#
EISEN BLUE,TRIM8#
71081SCOVER SUB-ASSY, FRONT SEATBACK SIDE, RH
BLACK,TRIM2#
GRAYISHS BLUE,TRIM8#
GRAY,TRIM2#
EISEN BLUE,TRIM8#
71082SCOVER SUB-ASSY, FRONT SEATBACK SIDE, LH
BLACK,TRIM2#
GRAYISH BLUE,TRIM8#
GRAY,TRIM2#
EISEN BLUE,TRIM8#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
71553BPAD, FRONT SEATBACK, B
71553CPAD, FRONT SEATBACK, C
71554PAD, FRONT SEATBACK, C
71554APAD, FRONT SEATBACK, CENTER
71910AHEADREST ASSY, FRONT SEAT
BLACK,TRIM2#
GRAYISH BLUE,TRIM8#
BLACK,TRIM2#
EISEN BLUE,TRIM8#
71920AHEADREST ASSY, FRONT SEAT, LH
BLACK,TRIM2#
GRAYISH BLUE,TRIM8#
BLACK,TRIM2#
EISEN BLUE,TRIM8#
9052415004
main90524-15004
17 parts on this diagram · 2 diagrams in section
