ENGINE OVERHAUL GASKET KIT

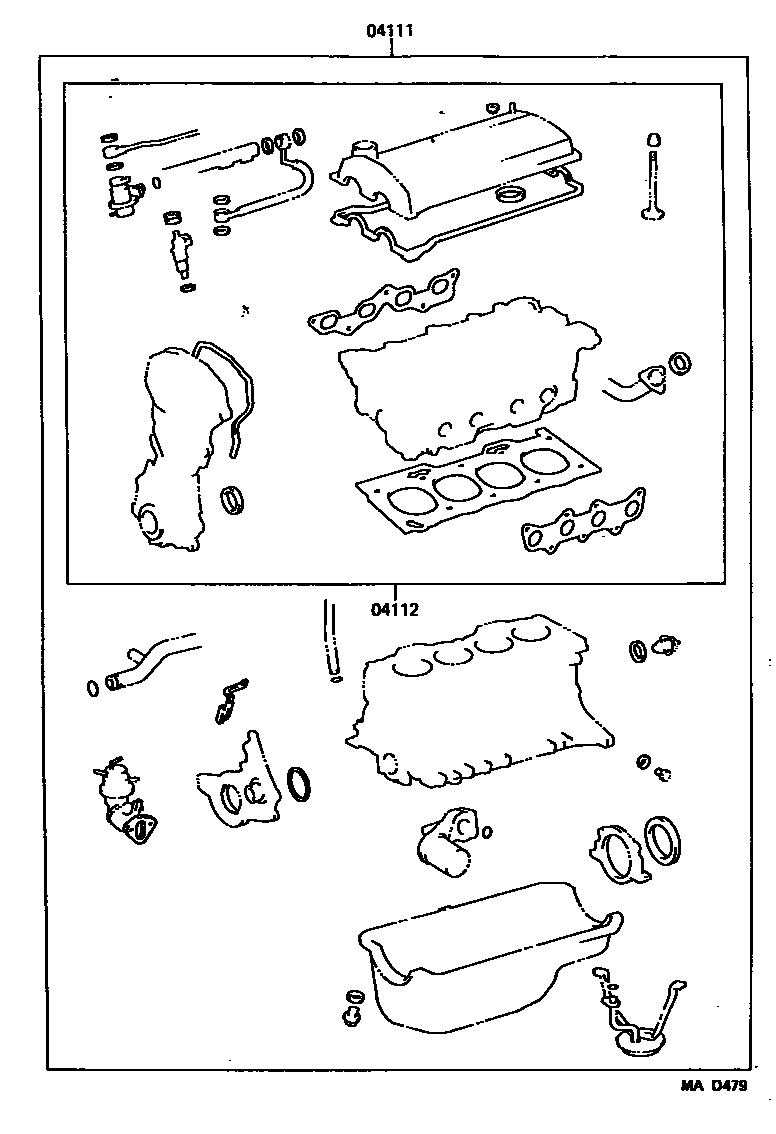

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-11130i199104-199307
sub04111-11131
main04111-11131i199307-199309
sub04111-11132
main04111-11132i199309-199508
sub04111-11150
main04111-11160i199409-199508
CALIFORNIA SPEC
04112GASKET KIT, ENGINE VALVE GRIND
main04112-11100i199104-199307
sub04112-11101
main04112-11101i199307-199508
sub04112-11130
main04112-11140i199409-199508
CALIFORNIA SPEC

2 parts on this diagram · 1 diagram in section
