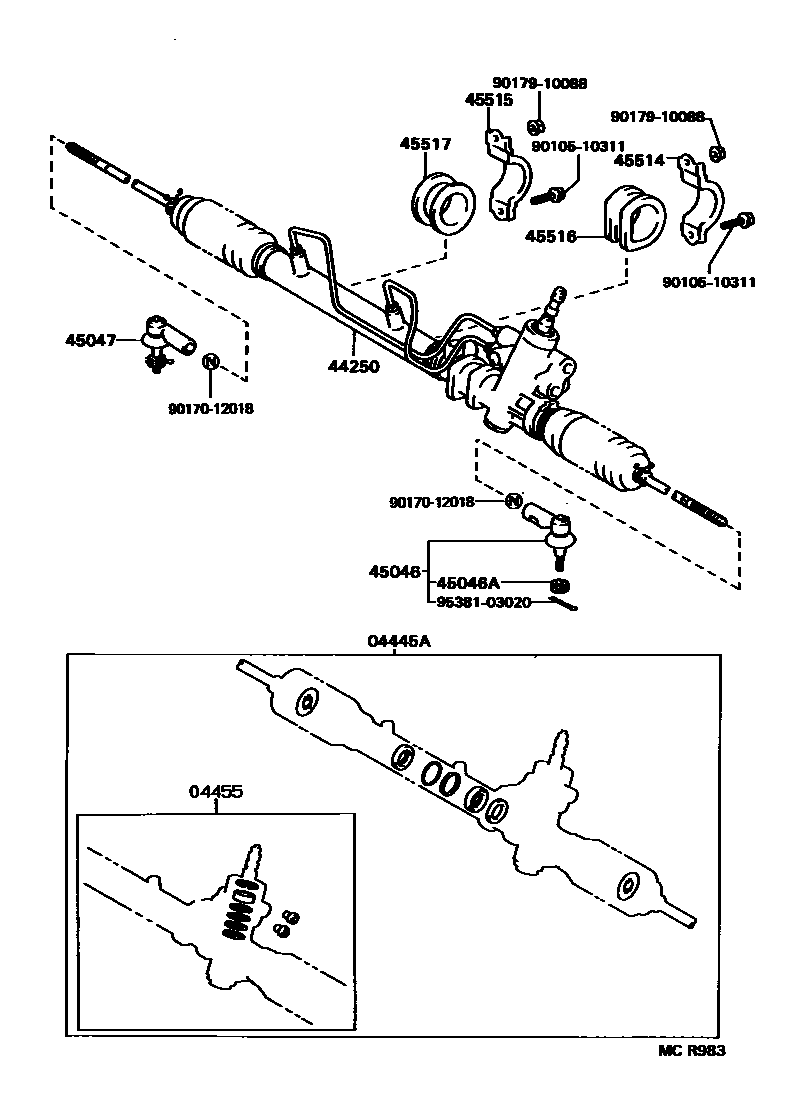

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-16080iEL54..LHD199508-199907

main04445-16110iEL54..RHD199508-199907

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-10030iEL54..RHD199508-199907

main04455-16080iEL54..LHD199508-199907

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-16291iEL54..RHD..CVT199508-199802

sub44250-16292

main44250-16292iEL54..RHD199712-199907

main44250-16300iEL54..GEN199508-199608

main44250-16310iEL54..LHD..EUR199512-199907

main44250-16330iEL54..GEN199610-199702

main44250-16340iEL54..GEN199608-199610

45046END SUB-ASSY, TIE ROD, RH

main45046-19206iEL54199508-199802

main45046-19216iEL54..CP199712-199907

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iEL54199508

45047END SUB-ASSY, TIE ROD, LH

main45046-19206iEL54199508-199802

main45046-19216iEL54..CP199712-199907

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-16060iEL54199508-199707

sub45514-16061

main45514-16061iEL54199707

45515BRACKET, STEERING RACK HOUSING, NO.2

main45514-16060iEL54199508-199707

sub45514-16061

main45514-16061iEL54199707

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-16060iEL54199508

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-10070iEL54199508

9010510311

main90105-10311

9017012018

main90170-12018

9017910088

main90179-10088

9538103020

main95381-03020

14 parts on this diagram · 4 diagrams in section
