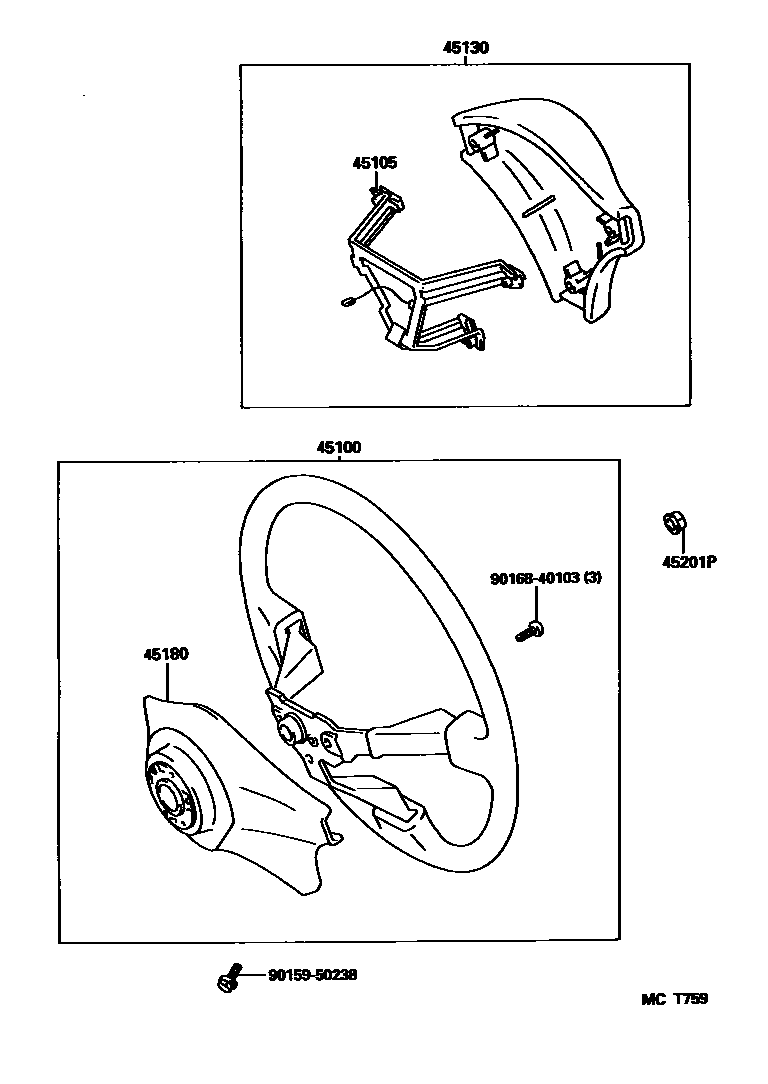

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-10431-B1i199604-199608

4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

sub45100-10431

main45100-10440-B1i199512-199608

4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

sub45100-10440

main45100-16450-B0i199508-199712

3-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

sub45100-16450

main45100-16470-B0i199508-199604

4-SPOKE,URETHANE,SHADOW GRAY,TRIM1#

sub45100-10431

sub45100-10430

main45100-16500-B0i199608-199712

4-SPOKE,URETHANE,W(*80,DRIVER SIDE),SHADOW GRAY,TRIM1#

sub45100-16500

main45100-16510-B0i199608-199802

4-SPOKE,URETHANE,W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

sub45100-16510

main45100-16580-B0i199712-199802

3-SPOKE,LEATHER,SHADOW GRAY,TRIM1#

sub45100-16580

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-16200i199508-199712

45130BUTTON ASSY, HORN

main45130-14360-B0i199712-199802

SHADOW GRAY,TRIM1#

sub45130-14360

main45130-16300-B1i199508-199712

W(*80,DRIVER SIDE),SHADOW GRAY,TRIM1#

sub45130-16371

main45130-16350-B0i199512-199608

SHADOW GRAY,TRIM1#

sub45130-16350

main45130-16360-B0i199508-199712

SHADOW GRAY,TRIM1#

sub45130-16360

main45130-16400-B0i199608-199802

W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1#

sub45130-16400

main45130-16420-B0i199608-199712

W(*80),SHADOW GRAY,TRIM1#

sub45130-16391

45180COVER SUB-ASSY, STEERING WHEEL

main45180-16190-B0i199508-199712

SHADOW GRAY,TRIM1#

sub45180-16190

45201PNUT, STEERING WHEEL SET

main90179-12071i199508

9015950238

main90159-50238

9016840103

main90168-40103

7 parts on this diagram · 3 diagrams in section
