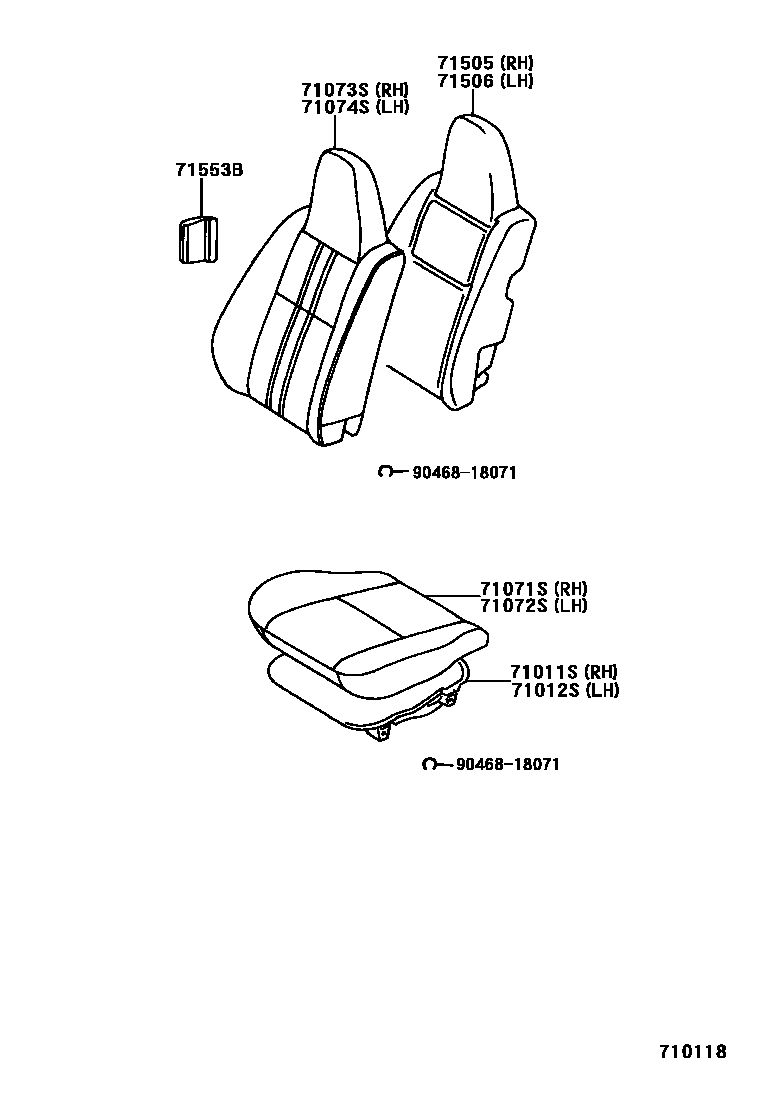

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-10220iEL53199608

main71011-16160iEL53199409-199608

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71011-10220iEL53199608

main71012-16090iEL53199409-199608

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71518-16170-B0iEL53..STD..CND199409-199508

STD PACKAGE,BLUISH GRAY,TRIM1#

main71518-16170-E0iEL53..DX199409-199608

OAK,TRIM4#

main71518-16180-B0iEL53..STD199409-199608

BLUISH GRAY,TRIM1#

main71518-16310-B0iEL53199608-199712

BLUISH GRAY,TRIM1#

main71518-16310-B8iEL53..CND199712

W(SPLIT TYPE REAR SEAT),GRAY,TRIM1#

main71518-16310-E0iEL53199608-199712

OAK,TRIM4#

main71518-16310-E7iEL53..CND199712

W(SPLIT TYPE REAR SEAT),OAK,TRIM4#

main71518-16590-B0iEL53199712

GRAY,TRIM1#

main71518-16590-E0iEL53199712

OAK,TRIM4#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71518-16170-B0iEL53..DX199409-199608

BLUISH GRAY,TRIM1#

main71518-16170-E0iEL53..DX199409-199608

OAK,TRIM4#

main71518-16180-B0iEL53..STD199409-199608

BLUISH GRAY,TRIM1#

main71518-16410-B0iEL53199608-199712

BLUISH GRAY,TRIM1#

main71518-16410-B8iEL53199712

GRAY,TRIM1#

main71518-16410-E0iEL53199608-199712

OAK,TRIM4#

main71518-16410-E7iEL53199712

OAK,TRIM4#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1G230-B0iEL53..STD..USA199409-199608

BLUISH GRAY,TRIM1#

main71073-1G270-B0iEL53..DX;EL53..STD..CND199409-199508

BLUISH GRAY,TRIM1#

main71073-1G270-E0iEL53..STD..USA199512-199602

BLACK HAWK,OAK,TRIM4#

main71073-1G460-B0iEL53199608-199712

BLUISH GRAY,TRIM1#

main71073-1G460-B4iEL53199712

GRAY,TRIM1#

main71073-1G460-E0iEL53199608-199712

OAK,TRIM4#

main71073-1G460-E4iEL53199712

OAK,TRIM4#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-1G030-B0iEL53..STD..USA199409-199608

BLUISH GRAY,TRIM1#

main71074-1G070-B0iEL53..DX;EL53..STD..CND199409-199508

BLUISH GRAY,TRIM1#

main71074-1G070-E0iEL53..DX199409-199508

OAK,TRIM4#

main71074-1G180-B0iEL53199608-199712

BLUISH GRAY,TRIM1#

main71074-1G180-B4iEL53199712

GRAY,TRIM1#

main71074-1G180-E0iEL53199608-199712

OAK,TRIM4#

main71074-1G180-E4iEL53199712

OAK,TRIM4#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-16140iEL53199409-199608

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71505-16140iEL53199409-199608

71553BPAD, FRONT SEATBACK, B

main71553-16070×4iEL53199409-199608

9046818071

main90468-18071

10 parts on this diagram · 4 diagrams in section
