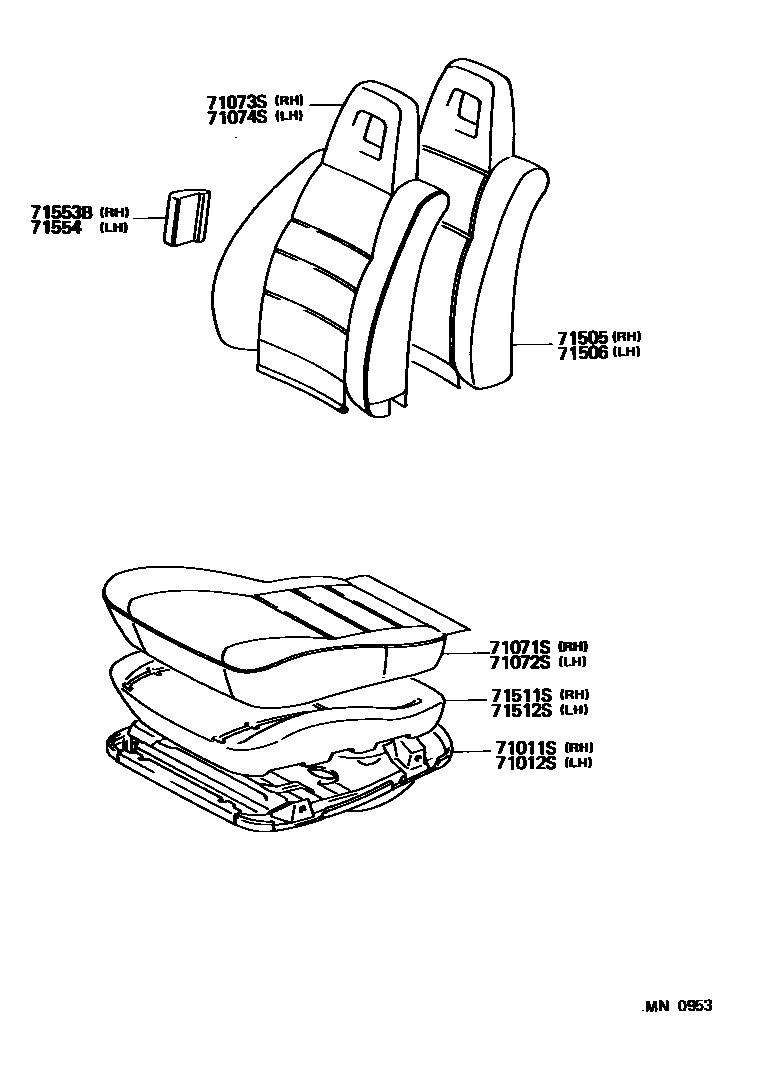

FRONT SEAT & SEAT TRACK

0001 1 0002 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-16080iEL42199009-199409

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71012-16040iEL42199009-199409

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-16810-03iEL42..STD199009-199208

GRAY,TRIM2#

main71071-16810-C0iEL42..STD199208-199409

MI.GRAY,TRIM2#

main71071-16820-03iEL42..DLX199009-199208

GRAY,TRIM2#

main71071-16820-04iEL42..DLX199009-199208

GRAYISH BLUE,TRIM8#

main71071-16830-03iEL42..LE199009-199208

GRAY,TRIM2#

main71071-16830-04iEL42..LE199009-199208

GRAYISH BLUE,TRIM8#

main71071-16830-C0iEL42..LE199208-199409

GRAY,TRIM2#

main71071-16830-J0iEL42..LE199208-199409

EISEN BLUE,TRIM8#

main71071-1G070-C0iEL42..DLX199208-199409

GRAY,TRIM2#

main71071-1G070-J0iEL42..DLX199208-199409

EISEN BLUE,TRIM8#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-16810-03iEL42..STD199009-199012

GRAY,TRIM2#

main71071-16820-03iEL42..DLX199009-199012

GRAY,TRIM2#

main71071-16820-04iEL42..DLX199009-199012

GRAYISH BLUE,TRIM8#

main71071-16830-03iEL42..LE199009-199012

GRAY,TRIM2#

main71071-16830-04iEL42..LE199009-199012

GRAYISH BLUE,TRIM8#

main71072-16300-C0iEL42..DLX199208-199409

GRAY,TRIM2#

main71072-16300-J0iEL42..DLX199208-199409

EISEN BLUE,TRIM8#

main71072-16420-03iEL42..STD199012-199208

GRAY,TRIM2#

main71072-16420-C0iEL42..STD199208-199409

MI.GRAY,TRIM2#

main71072-16430-03iEL42..DLX199012-199208

GRAY,TRIM2#

main71072-16430-04iEL42..DLX199012-199208

GRAYISH BLUE,TRIM8#

main71072-16440-03iEL42..LE199012-199208

GRAY,TRIM2#

main71072-16440-04iEL42..LE199012-199208

GRAYISH BLUE,TRIM8#

main71072-16440-C0iEL42..LE199208-199409

GRAY,TRIM2#

main71072-16440-J0iEL42..LE199208-199409

EISEN BLUE,TRIM8#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-1G060-03iEL42..STD199009-199208

GRAY,TRIM2#

main71073-1G060-C0iEL42..STD199208-199409

MI.GRAY,TRIM2#

main71073-1G070-03iEL42..DLX..USA;EL42..2DS..DLX..CND199009-199208

GRAY,TRIM2#

main71073-1G070-04iEL42..DLX..USA;EL42..2DS..DLX..CND199009-199208

GRAYISH BLUE,TRIM8#

main71073-1G080-03iEL42..LE199009-199208

GRAY,TRIM2#

main71073-1G080-04iEL42..LE199009-199208

GRAYISH BLUE,TRIM8#

main71073-1G081-C0iEL42..LE199208-199409

GRAY,TRIM2#

main71073-1G081-J0iEL42..LE199208-199409

EISEN BLUE,TRIM8#

main71073-1G200-C0iEL42..DLX199208-199405

GRAY,TRIM2#

main71073-1G200-C1iEL42..DLX199208-199409

GRAY,TRIM2#

main71073-1G200-J0iEL42..DLX199208-199405

EISEN BLUE,TRIM8#

main71073-1G200-J1iEL42..DLX199208-199409

EISEN BLUE,TRIM8#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-16740-03iEL42..STD199009-199208

GRAY,TRIM2#

main71074-16740-C0iEL42..STD199208-199409

MI.GRAY,TRIM2#

main71074-16750-03iEL42..DLX199009-199208

GRAY,TRIM2#

main71074-16750-04iEL42..DLX199009-199208

GRAYISH BLUE,TRIM8#

main71074-16760-03iEL42..LE199009-199208

GRAY,TRIM2#

main71074-16760-04iEL42..LE199009-199208

GRAYISH BLUE,TRIM8#

main71074-16761-C0iEL42..LE199208-199409

GRAY,TRIM2#

main71074-16761-J0iEL42..LE199208-199409

EISEN BLUE,TRIM8#

main71074-16880-C0iEL42..DLX199208-199405

GRAY,TRIM2#

main71074-16880-C1iEL42..DLX199208-199409

GRAY,TRIM2#

main71074-16880-J0iEL42..DLX199208-199405

EISEN BLUE,TRIM8#

main71074-16880-J1iEL42..DLX199208-199409

EISEN BLUE,TRIM8#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-16080iEL42..DLX,LE199009-199409

main71505-16090iEL42..STD199009-199409

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71505-16080iEL42..DLX,LE199009-199409

main71505-16090iEL42..STD199009-199409

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-16130iEL42199009-199409

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-16130iEL42199009-199409

71553BPAD, FRONT SEATBACK, B

main71553-16050×2iEL42199009-199409

71554PAD, FRONT SEATBACK, C

main71553-16050×2iEL42199009-199409

12 parts on this diagram · 2 diagrams in section
