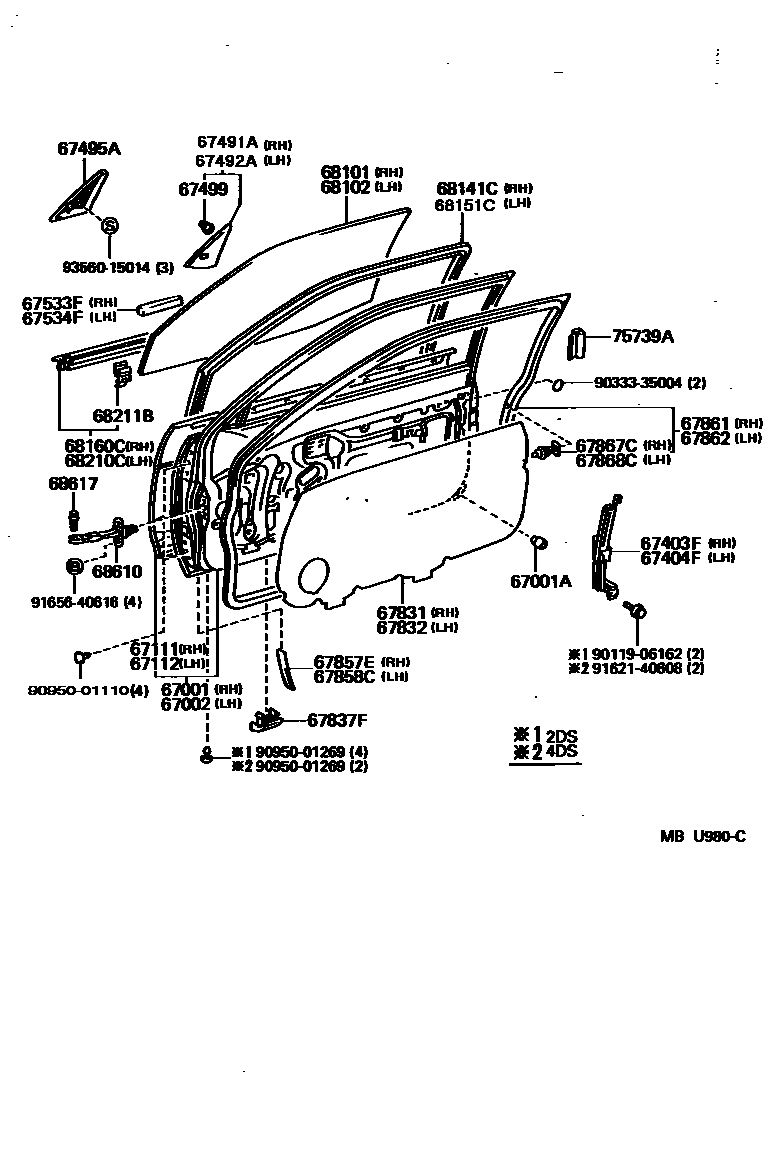

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-16370iEL42..2DS..USA199009-199205

main67001-16371iEL42..2DS..USA199205-199209

main67001-16380iEL42..2DS..CND199009-199205

main67001-16381iEL42..2DS..CND199205-199209

main67001-16420iEL42..2DS..CND199209-199409

main67001-16430iEL42..2DS..USA199209-199409

main67001-16510iEL42..4DS..USA199009-199205

main67001-16511iEL42..4DS..USA199205-199208

main67001-16530iEL42..4DS..CND199009-199205

main67001-16531iEL42..4DS..CND199205-199208

main67001-16561iEL42..4DS..CND199208-199409

main67001-16591iEL42..4DS..USA199208-199409

67001ACUSHION, FRONT DOOR PANEL

main90541-09031×2iEL42..2DS199009-199409

main90541-09079×4iEL42..4DS199009-199409

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-16330iEL42..2DS..USA199009-199205

main67002-16331iEL42..2DS..USA199205-199208

sub67002-16332

main67002-16340iEL42..2DS..CND199009-199205

main67002-16341iEL42..2DS199208-199209

main67002-16390iEL42..2DS199209-199409

main67002-16450iEL42..4DS..USA199009-199205

main67002-16451iEL42..4DS..USA199205-199208

main67002-16470iEL42..4DS..CND199009-199205

main67002-16471iEL42..4DS..CND199205-199208

main67002-16501iEL42..4DS199208-199409

67111PANEL, FRONT DOOR, OUTER RH

main67111-16210iEL42..2DS199009-199409

main67111-16250iEL42..4DS199009-199409

67112PANEL, FRONT DOOR, OUTER LH

main67112-16190iEL42..2DS199009-199409

main67112-16210iEL42..4DS199009-199409

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-16090iEL42..2DS199009-199110

main67403-16091iEL42..2DS199110-199204

main67403-16092iEL42..2DS199204-199409

main67403-16110iEL42..4DS199009-199203

main67403-16111iEL42..4DS199203-199206

main67403-16112iEL42..4DS199206-199409

sub67403-16100

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-16090iEL42..2DS199009-199110

main67404-16091iEL42..2DS199110-199204

main67404-16092iEL42..2DS199204-199409

main67404-16110iEL42..4DS199009-199203

main67404-16111iEL42..4DS199203-199206

main67404-16112iEL42..4DS199206-199409

sub67404-16100

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-16090iEL42..2DS..DLX..USA199009-199108

W(OUTER RR VIEW MIRROR)

main67491-16120iEL42..2DS..(DLX,STD)199009-199409

main67491-16130iEL42..4DS..DLX199009-199409

main67491-16140iEL42..4DS..LE199009-199409

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-16090iEL42..2DS..DLX..USA199009-199108

W(OUTER RR VIEW MIRROR)

main67492-16120iEL42..2DS..(DLX,STD)199009-199409

main67492-16130iEL42..4DS..DLX199009-199409

main67492-16140iEL42..4DS..LE199009-199409

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-16070iEL42..STD..USA;EL42..2DS..(DLX,STD)..CND199009-199208

main67495-16080iEL42..4DS..DLX..CND199009-199208

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-16010×2iEL42..2DS199009-199212

main67499-32010×2iEL42..4DS199009-199212

67533FPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main67533-16050iEL42..2DS199009-199409

67534FPAD, FRONT DOOR LOWER FRAME GARNISH, LH

main67533-16050iEL42..2DS199009-199409

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-16260iEL42..4DS..DLX..USA199208-199409

PUERTORICO SPEC & W(POWER WINDOW)

main67831-16270iEL42..4DS199009-199011

main67831-16280iEL42..4DS199009-199011

W(SPEAKER)

main67831-16310iEL42..2DS199009-199409

main67831-16320iEL42..STD..CND;EL42..2DS..(DLX,LE)199009-199409

main67831-16330iEL42..4DS..LE199108-199409

W/O(RADIO)

main67831-16340iEL42..4DS..LE199108-199409

W(SPEAKER)

main67831-16350iEL42..4DS..DLX..USA199208-199409

PUERTORICO SPEC & W(POWER WINDOW)

main67831-16370iEL42..STD..CND;EL42..2DS..(DLX,LE)199009-199208

W(SPEAKER)

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-16140iEL42..4DS199009-199011

main67832-16150iEL42..4DS199009-199011

W(SPEAKER)

main67832-16180iEL42..2DS199009-199409

main67832-16190iEL42..STD..CND;EL42..2DS..(DLX,LE)199009-199409

main67832-16200iEL42..4DS..LE199108-199409

W/O(RADIO)

main67832-16210iEL42..4DS..DLX..USA199208-199409

PUERTORICO SPEC & W(POWER WINDOW)

main67832-16220iEL42..4DS..LE199108-199409

W(SPEAKER)

main67832-16230iEL42..4DS..DLX..USA199208-199409

PUERTORICO SPEC & W(POWER WINDOW)

main67832-16240iEL42..STD..CND;EL42..2DS..(DLX,LE)199104-199208

W(SPEAKER)

67837FSEAL, DOOR DUST PROOF

main67837-16030×4iEL42..CND199009-199409

67857EPROTECTOR, REAR DOOR PANEL, RH

main67857-16010iEL42199009-199409

67858CPROTECTOR, REAR DOOR PANEL, LH

main67858-16010iEL42199009-199409

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-16250iEL42..2DS199009-199409

main67861-16270iEL42..4DS199009-199409

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-16250iEL42..2DS199009-199409

main67862-16270iEL42..4DS199009-199409

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-12050×20iEL42..2DS199009-199011

main67868-16010×20iEL42..2DS199011-199409

main67868-20130×16iEL42..4DS199010-199409

main67868-30050×16iEL42..4DS199009-199010

sub67867-12150

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-12050×20iEL42..2DS199009-199011

main67868-16010×20iEL42..2DS199011-199409

main67868-20130×16iEL42..4DS199010-199409

main67868-30050×16iEL42..4DS199009-199010

sub67867-12150

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-16010iEL42..2DS..(DLX,STD)199009-199409

*TEM,T=3.5,CLEAR

sub68110-16011

main68110-16020iEL42..2DS..DLX..USA199108-199409

*TT,T=3.5,BLUE

sub68110-16021

main68110-16040iEL42..4DS..DLX199009-199409

*TEM,T=3.5,CLEAR

sub68110-16041

main68110-16050iEL42..4DS..DLX..USA199108-199409

*TT,T=3.5,BLUE

sub68110-16051

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-16010iEL42..2DS..(DLX,STD)199009-199409

*TEM,T=3.5,CLEAR

sub68120-16011

main68120-16020iEL42..2DS..LE199009-199208

*TT,T=3.5,BLUE

sub68120-16021

main68120-16040iEL42..4DS..DLX199009-199409

*TEM,T=3.5,CLEAR

sub68120-16041

main68120-16050iEL42..4DS..LE199009-199409

*TT,T=3.5,BLUE

sub68120-16051

68141CRUN, FRONT DOOR GLASS, RH

main68141-16180iEL42..2DS199009-199409

main68141-16190iEL42..4DS199009-199409

68151CRUN, FRONT DOOR GLASS, LH

main68151-16010iEL42..2DS199009-199409

main68151-16020iEL42..4DS199009-199409

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-16090iEL42..STD..USA;EL42..2DS..(DLX,STD)..CND199009-199208

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-16080iEL42..STD..USA;EL42..2DS..(DLX,STD)..CND199009-199208

68211BCLIP(FOR FRONT DOOR GLASS WEATHERSTRIP)

main68212-16030×14iEL42..STD..USA;EL42..2DS..(DLX,STD)..CND199009-199208

68610CHECK ASSY, FRONT DOOR

main68610-16050×2iEL42..4DS199009-199208

main68610-16060×2iEL42..2DS199009-199208

main68610-16070×2iEL42..4DS199208-199409

main68610-16080×2iEL42..2DS199208-199409

68617PIN, FRONT DOOR CHECK

main68617-12030×2iEL42..4DS199212-199409

75739AMOULDING DOOR EDGE

main75739-30030iEL42199009-199208

sub75739-12011

9011906162

main90119-06162

9033335004

main90333-35004

9095001110

main90950-01110

9095001269

main90950-01269

9162140608

main91621-40608

9165640616

main91656-40616

9356015014

main93560-15014

39 parts on this diagram · 3 diagrams in section
