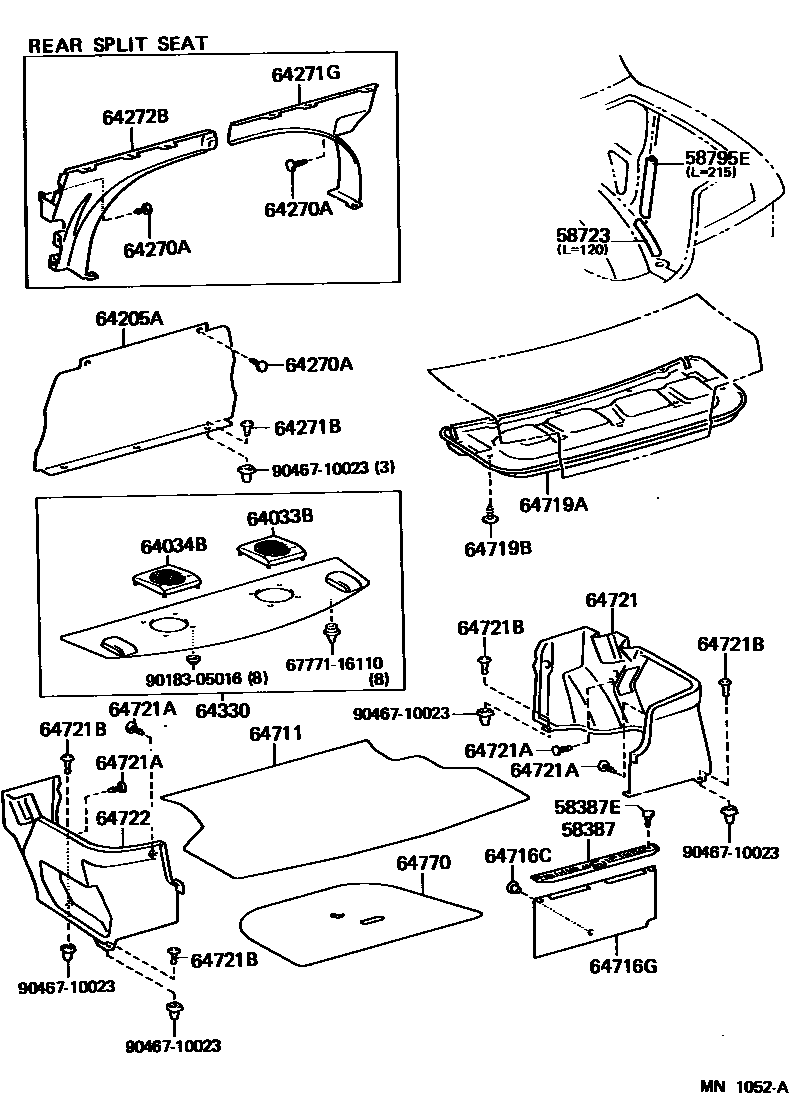

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-16020-01iEL42..LE..USA;EL42..(DLX,LE)..CND;EL42..2DS..DLX..USA199009-199208

BLACK,TRIM2#,8#

sub58387-16020

sub58387-16040

main58387-16020-22iEL42..DLX,LE199208-199210

BLACK,TRIM2#,8#

sub58387-16020

sub58387-16040

main58387-16040-C0iEL42..DLX,LE199210-199409

BLACK,TRIM2#,8#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-05096-22iEL42..DLX,LE199311-199312

BLACK,TRIM2#,8#

sub90467-05096

main90467-05096-J0iEL42..DLX,LE199311-199312

EISEN BLUE,TRIM8#

sub90467-05096

main90467-05098-01iEL42..LE..USA;EL42..(DLX,LE)..CND;EL42..2DS..DLX..USA199009-199208

BLACK,TRIM2#,8#

sub90467-05098

main90467-05098-22iEL42..DLX,LE199208-199311

BLACK,TRIM2#,8#

sub90467-05098

main90467-06055-22iEL42..DLX,LE199312-199409

BLACK,TRIM2#,8#

sub90467-06055

main90467-06055-W4iEL42..DLX,LE199312-199409

EISEN BLUE,EISEN BLUE,TRIM8#

sub90467-06055

58723PROTECTOR, LUGGAGE COMPARTMENT SERVICE COVER, NO.1

main58723-16010iEL42..STD..CND;EL42..(DLX,STD)..USA199009-199409

sub58795-16020

58795ETRIM, JACK HOUSE OPENING

main58795-16020iEL42..STD..CND;EL42..(DLX,STD)..USA199009-199409

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-22070-01iEL42..DLX,LE;EL42..STD..CND199009-199208

BLACK,TRIM2#

sub64033-22070

main64033-22070-14iEL42..DLX,LE199009-199208

GRAYISH BLUE,TRIM8#

sub64033-22070

main64033-22070-C0iEL42..DLX,LE;EL42..STD..CND199208-199409

BLACK,TRIM2#

sub64033-22070

main64033-22070-J0iEL42..DLX,LE199208-199409

EISEN BLUE,TRIM8#

sub64033-22070

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-22070-01iEL42..DLX,LE;EL42..STD..CND199009-199208

BLACK,TRIM2#

sub64033-22070

main64033-22070-14iEL42..DLX,LE199009-199208

GRAYISH BLUE,TRIM8#

sub64033-22070

main64033-22070-C0iEL42..DLX,LE;EL42..STD..CND199208-199409

BLACK,TRIM2#

sub64033-22070

main64033-22070-J0iEL42..DLX,LE199208-199409

EISEN BLUE,TRIM8#

sub64033-22070

64205ACOVER SUB-ASSY, ROOM PARTITION

main64275-16010-01iEL42..STD199009-199208

BLACK,TRIM2#

sub64275-16010

main64275-16010-01iEL42..STD199009-199208

BLACK,TRIM2#,8#

sub64275-16010

main64275-16010-20iEL42..STD199208-199409

BLACK,TRIM2#,8#

sub64275-16010

main64275-16010-20iEL42..STD199208-199409

BLACK,TRIM2#

sub64275-16010

64270ACLIP(FOR ROOM PARTITION BOARD SETTING)

main90467-05096-01iEL42..STD199009-199208

BLACK,TRIM2#,8#

sub90467-05096

main90467-05096-01iEL42..STD199009-199208

W(SPLIT REAR SEAT),BLACK,TRIM2#,8#

sub90467-05096

main90467-05096-01iEL42..DLX..USA199009-199208

BLACK,TRIM2#

sub90467-05096

main90467-05096-22iEL42..LE..USA;EL42..(DLX,LE)..CND199208-199409

W(SPLIT REAR SEAT),BLACK,TRIM2#,8#

sub90467-05096

main90467-05096-22iEL42..STD199208-199409

BLACK,TRIM2#

sub90467-05096

main90467-05096-22iEL42..STD199208-199409

BLACK,TRIM2#,8#

sub90467-05096

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-07115-03iEL42..DLX..USA199009-199208

GRAY,TRIM2#

sub90467-07115

main90467-07115-03iEL42..DLX..USA199009-199208

GRAY,TRIM2#,8#

sub90467-07115

main90467-07115-C0iEL42..DLX..USA199208-199409

BLACK,TRIM2#

sub90467-07115

main90467-07115-C0iEL42..STD199208-199409

BLACK,TRIM2#,8#

sub90467-07115

64271GBOARD, ROOM PARTITION, RH

main64271-16040-01iEL42..LE..USA;EL42..(DLX,LE)..CND;EL42..2DS..DLX..USA199009-199208

BLACK,TRIM2#,8#

sub64271-16040

main64271-16040-22iEL42..DLX,LE199208-199409

BLACK,TRIM2#,8#

sub64271-16040

64272BBOARD, ROOM PARTITION, LH

main64272-16040-01iEL42..LE..USA;EL42..(DLX,LE)..CND;EL42..2DS..DLX..USA199009-199208

BLACK,TRIM2#,8#

sub64272-16040

main64272-16040-22iEL42..DLX,LE199208-199409

BLACK,TRIM2#,8#

sub64272-16040

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-16270-01iEL42199009-199208

BLACK,TRIM2#

sub64330-16270

main64330-16270-04iEL42..DLX,LE199009-199208

GRAYISH BLUE,TRIM8#

sub64330-16270

main64330-16270-22iEL42199208-199409

BLACK,TRIM2#

sub64330-16270

main64330-16270-W4iEL42..DLX,LE199208-199409

EISEN BLUE,TRIM8#

sub64330-16270

main64330-16290-01iEL42..DLX,LE;EL42..STD..CND199009-199208

W(SPEAKER),BLACK,TRIM2#

sub64330-16290

main64330-16290-04iEL42..DLX,LE199009-199208

W(SPEAKER),GRAYISH BLUE,TRIM8#

sub64330-16290

main64330-16290-22iEL42..DLX,LE;EL42..STD..CND199208-199409

W(SPEAKER),BLACK,TRIM2#

sub64330-16290

main64330-16290-W4iEL42..DLX,LE199208-199409

W(SPEAKER),EISEN BLUE,TRIM8#

sub64330-16290

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-16050-01iEL42..STD199009-199208

BLACK,TRIM2#

sub64711-16050

main64711-16050-01iEL42..STD199009-199208

BLACK,TRIM2#,8#

sub64711-16050

main64711-16050-20iEL42..STD199208-199409

BLACK,TRIM2#

sub64711-16050

main64711-16050-20iEL42..DLX..USA199208-199409

BLACK,TRIM2#,8#

sub64711-16050

main64711-16050-C0iEL42..DLX..USA199208-199409

BLACK,TRIM2#,8#

sub64711-16050

main64711-16070-01iEL42..LE..USA;EL42..(DLX,LE)..CND199009-199208

BLACK,TRIM2#,8#

sub64711-16070

main64711-16070-01iEL42..LE..USA;EL42..(DLX,LE)..CND199009-199208

W(SPLIT REAR SEAT),BLACK,TRIM2#,8#

sub64711-16070

main64711-16070-20iEL42..LE..USA;EL42..(DLX,LE)..CND199208-199409

BLACK,TRIM2#,8#

sub64711-16070

main64711-16070-20iEL42..LE..USA;EL42..(DLX,LE)..CND199208-199409

W(SPLIT REAR SEAT),BLACK,TRIM2#,8#

sub64711-16070

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05091-01iEL42..LE..USA;EL42..(DLX,LE)..CND;EL42..2DS..DLX..USA199009-199208

BLACK,TRIM2#,8#

sub90467-05091

main90467-05091-22iEL42..DLX,LE199208-199409

BLACK,TRIM2#,8#

sub90467-05091

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-16070-01iEL42..LE..USA;EL42..(DLX,LE)..CND;EL42..2DS..DLX..USA199009-199208

BLACK,TRIM2#,8#

sub64716-16070

main64716-16070-20iEL42..DLX,LE199208-199409

BLACK,TRIM2#,8#

sub64716-16070

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-16010-01iEL42..(DLX,LE)..CND199009-199208

BLACK,TRIM2#

sub64719-16010

main64719-16010-01iEL42..STD..CND199009-199208

BLACK,TRIM2#,8#

sub64719-16010

main64719-16010-01iEL42..STD..CND199009-199208

C0LD AREA PACKAGE,BLACK,TRIM2#

sub64719-16010

main64719-16010-01iEL42..STD..CND199009-199208

C0LD AREA PACKAGE,BLACK,TRIM2#,8#

sub64719-16010

main64719-16010-20iEL42..STD..CND199208-199409

BLACK,TRIM2#,8#

sub64719-16010

main64719-16010-20iEL42..STD..CND199208-199409

C0LD AREA PACKAGE,BLACK,TRIM2#

sub64719-16010

main64719-16010-20iEL42..STD..CND199208-199409

C0LD AREA PACKAGE,BLACK,TRIM2#,8#

sub64719-16010

main64719-16010-20iEL42..(DLX,LE)..CND199208-199409

BLACK,TRIM2#

sub64719-16010

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-05096-01iEL42..(DLX,LE)..USA199009-199208

C0LD AREA PACKAGE,BLACK,TRIM2#,8#

sub90467-05096

main90467-05096-01iEL42..STD..CND199009-199208

BLACK,TRIM2#

sub90467-05096

main90467-05096-01iEL42..STD..CND199009-199208

BLACK,TRIM2#,8#

sub90467-05096

main90467-05096-01iEL42..STD..CND199009-199208

C0LD AREA PACKAGE,BLACK,TRIM2#

sub90467-05096

main90467-05096-22iEL42..STD..CND199208-199409

C0LD AREA PACKAGE,BLACK,TRIM2#

sub90467-05096

main90467-05096-22iEL42..STD..CND199208-199409

BLACK,TRIM2#,8#

sub90467-05096

main90467-05096-22iEL42..STD..CND199208-199409

C0LD AREA PACKAGE,BLACK,TRIM2#,8#

sub90467-05096

main90467-05096-22iEL42..(DLX,LE)..CND199208-199409

BLACK,TRIM2#

sub90467-05096

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-16030-01iEL42..LE..USA;EL42..(DLX,LE)..CND;EL42..2DS..DLX..USA199009-199208

BLACK,TRIM2#,8#

sub64721-16030

main64721-16030-20iEL42..DLX,LE199208-199409

BLACK,TRIM2#,8#

sub64721-16030

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05096-01iEL42..LE..USA;EL42..(DLX,LE)..CND;EL42..2DS..DLX..USA199009-199208

BLACK,TRIM2#,8#

sub90467-05096

main90467-05096-22iEL42..DLX,LE199208-199409

BLACK,TRIM2#,8#

sub90467-05096

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main90467-07115-03iEL42..LE..USA;EL42..(DLX,LE)..CND;EL42..2DS..DLX..USA199009-199208

GRAY,TRIM2#,8#

sub90467-07115

main90467-07115-C0iEL42..DLX,LE199208-199409

BLACK,TRIM2#,8#

sub90467-07115

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-16030-01iEL42..LE..USA;EL42..(DLX,LE)..CND;EL42..2DS..DLX..USA199009-199208

BLACK,TRIM2#,8#

sub64722-16030

main64722-16030-20iEL42..DLX,LE199208-199409

BLACK,TRIM2#,8#

sub64722-16030

64770COVER ASSY, SPARE WHEEL

main64770-16110iEL42199009-199010

main64770-16111iEL42199010-199409

main64770-16180iEL42..4DS..CND199208-199409

CHILE SPEC

6777116110WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16110

9018305016

main90183-05016

9046710023

main90467-10023

25 parts on this diagram · 1 diagram in section
