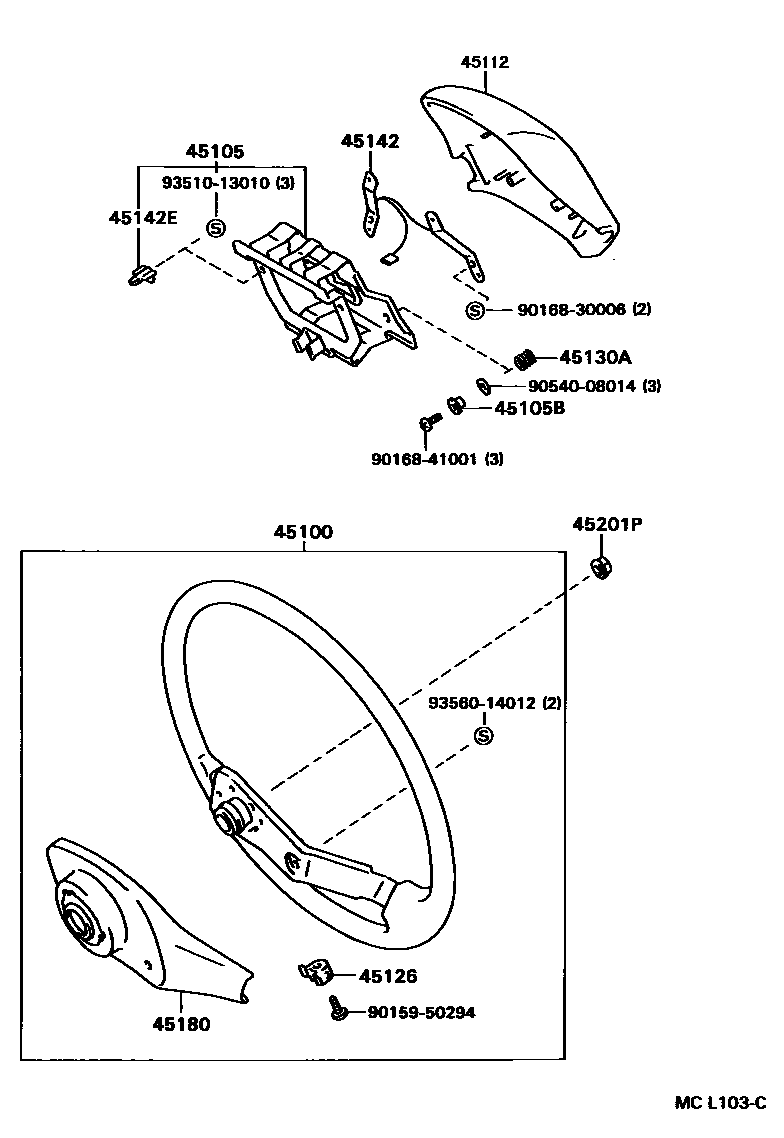

STEERING WHEEL
45100WHEEL ASSY, STEERING
W(CRUISE CONTROL),BLACK,TRIM2#
W(CRUISE CONTROL),GRAYISH BLUE,TRIM8#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105BSPACER(FOR HORN BUTTON CONTACT PLATE)
45112PAD, STEERING WHEEL
45126PLATE, STEERING WHEEL PAD SET
45130BUTTON ASSY, HORN
BLACK,TRIM2#
EISEN BLUE,TRIM8#
45130ASPRING, COMPRESSION(FOR HORN BUTTON)
45142SEAT, HORN BUTTON CONTACT, NO.1
45142EPIECE, HORN CONTACT
45180COVER SUB-ASSY, STEERING WHEEL
W(CRUISE CONTROL),BLACK,TRIM2#
W(CRUISE CONTROL),GRAYISH BLUE,TRIM8#
9015950294
main90159-50294
9016830006
main90168-30006
9016841001
main90168-41001
9054008014
main90540-08014
9351013010
main93510-13010
9356014012
main93560-14012
17 parts on this diagram · 3 diagrams in section
