ENGINE OVERHAUL GASKET KIT

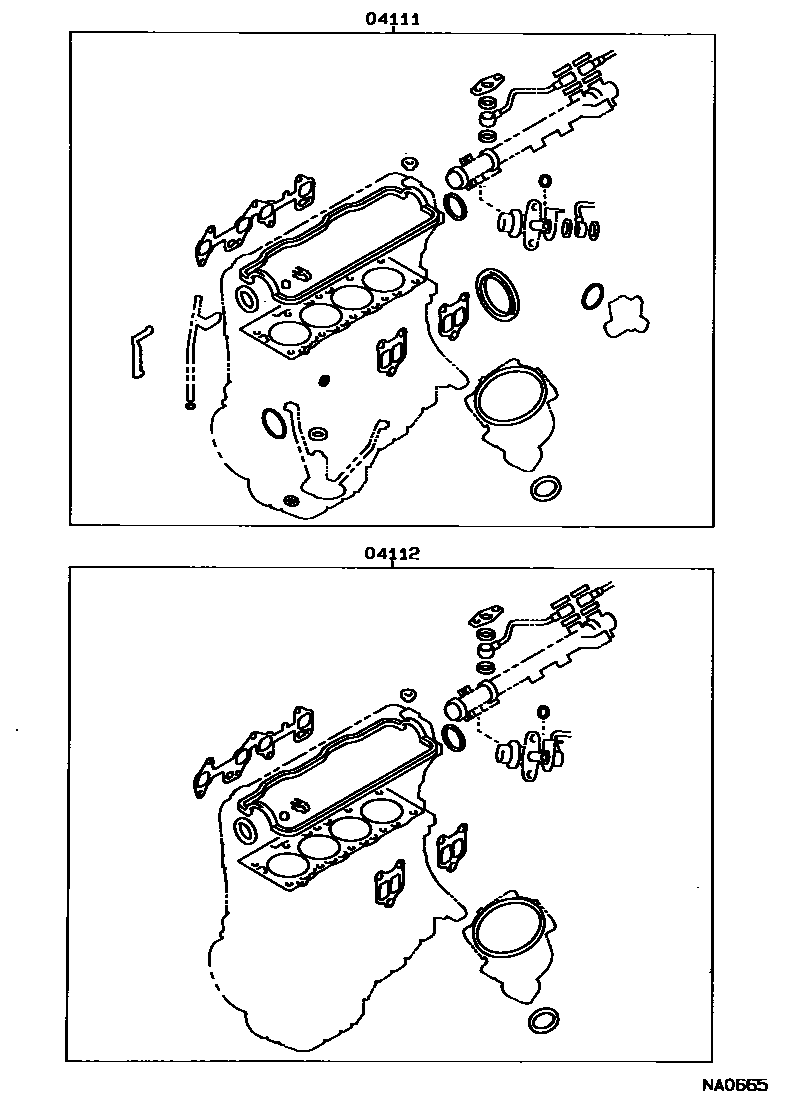

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-11072i199009-199010
sub04111-11073
main04111-11073i199010-199104
sub04111-11074
main04111-11074i199104-199309
sub04111-11075
main04111-11075i199309-199409
04112GASKET KIT, ENGINE VALVE GRIND
main04112-11060i199009-199010
sub04112-11061
main04112-11061i199010-199104
sub04112-11062
main04112-11062i199104-199409

2 parts on this diagram · 1 diagram in section
