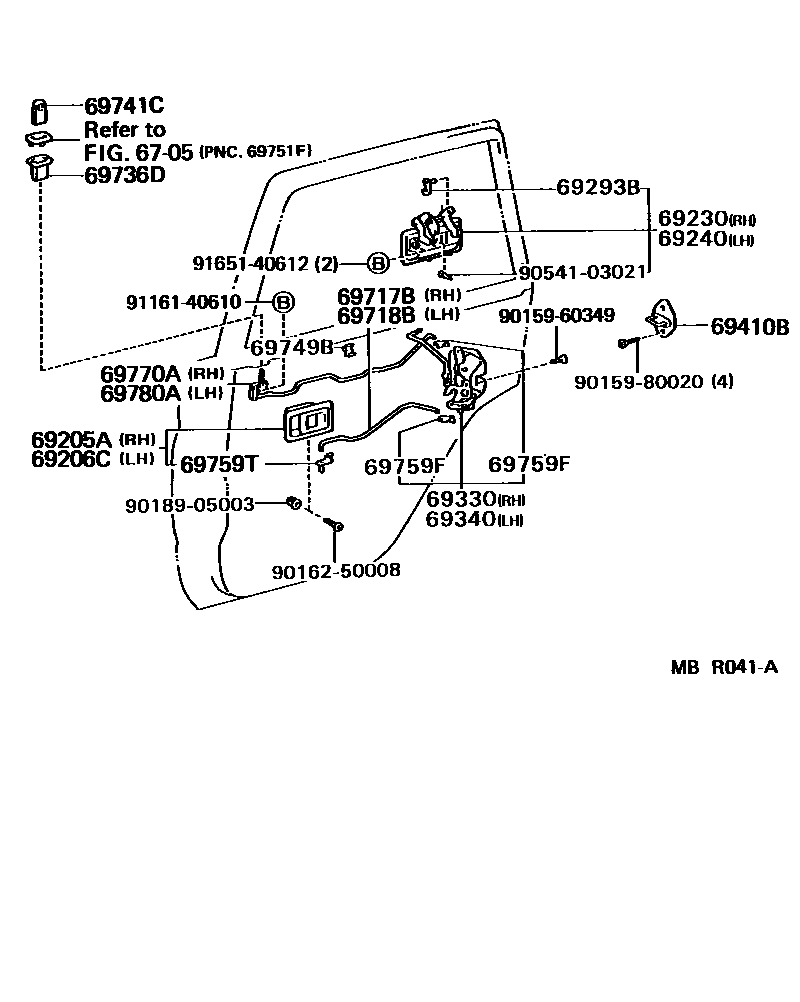

REAR DOOR LOCK & HANDLE
6705
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
LH
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69741CKNOB, REAR DOOR LOCK CONTROL
69749BCLAMP, REAR DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
LH
RH
69759TSNAP, REAR DOOR INSIDE HANDLE
RH
LH
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
9015960349
main90159-60349
9015980020
main90159-80020
9016250008
main90162-50008
9018905003
main90189-05003
9054103021
main90541-03021
9116140610
main91161-40610
9165140612
main91651-40612
25 parts on this diagram · 1 diagram in section
