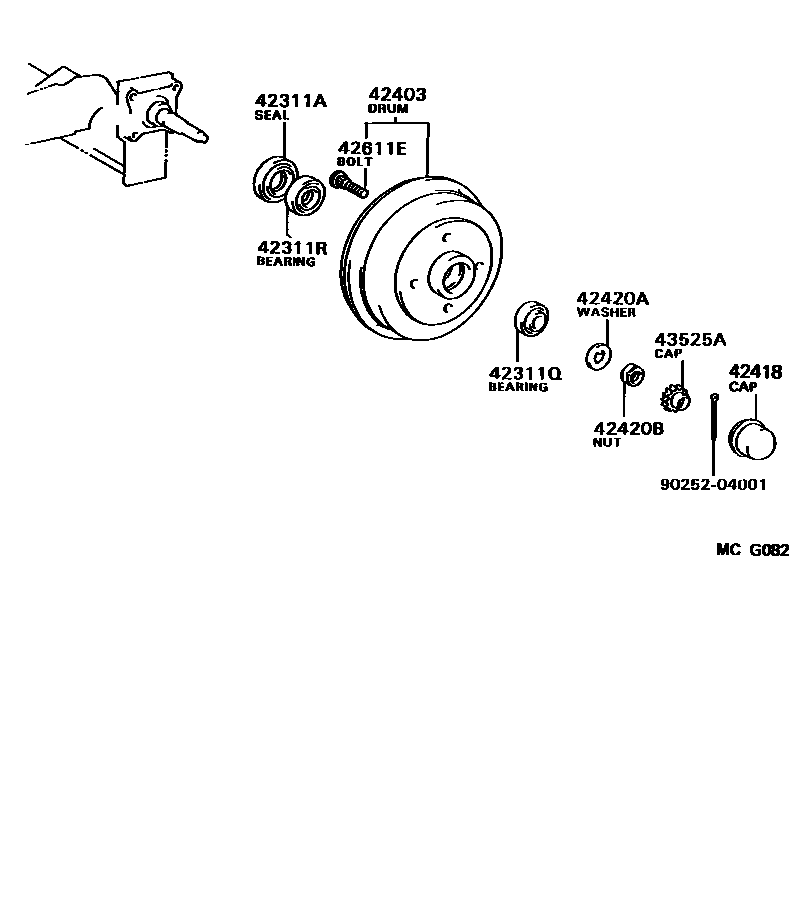

REAR AXLE SHAFT & HUB

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-36001×2iEL31198808-199009

42311QBEARING(FOR REAR AXLE SHAFT OUTER)

main90368-17017×2iEL31198808-199009

42311RBEARING(FOR REAR AXLE SHAFT INNER)

main90366-25003×2iEL31198808-199009

42403DRUM SUB-ASSY, REAR BRAKE

main42403-16020×2iEL31198808-199009

42418CAP, REAR HUB GREASE

main43514-10030×2iEL31198808-199009

42420AWASHER, CLAW (FOR REAR AXLE SHAFT)

main90214-16010×2iEL31198808-199009

42420BNUT (FOR REAR AXLE SHAFT)

main90170-16137×2iEL31198808-199009

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×8iEL31198808-199009

43525ACAP, REAR WHEEL ADJUSTING LOCK

main43525-20011×2iEL31198808-199009

9025204001

main90252-04001

10 parts on this diagram · 1 diagram in section
