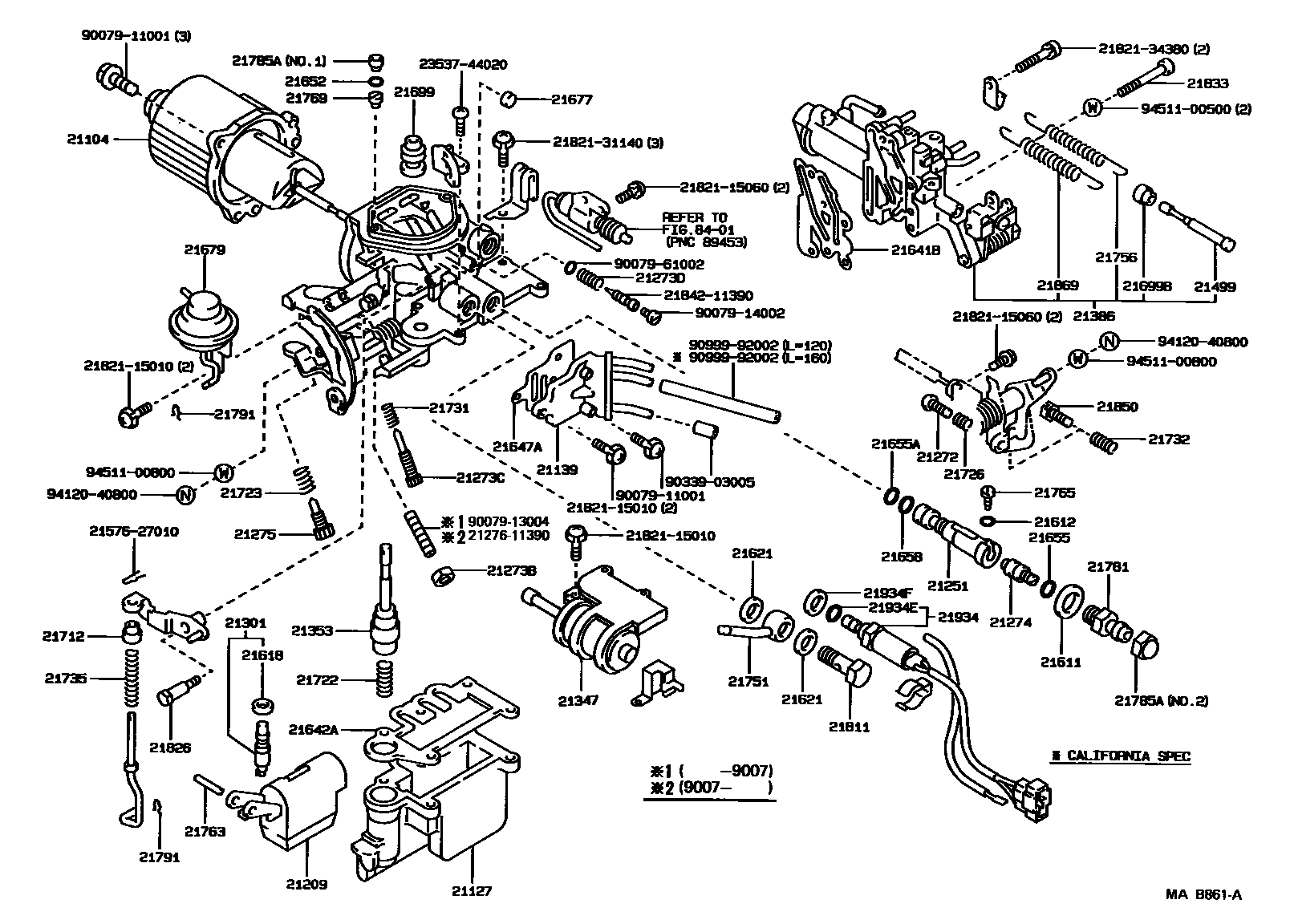

CARBURETOR
21104CHAMBER SUB-ASSY, SUCTION
21127BOWL, FLOAT
21139ADAPTER(FOR CARBURETOR CONNECTING PIPE)
21209FLOAT SUB-ASSY
21251JET, 1ST MAIN
21272SCREW, 1ST IDLE ADJUSTING
21273BNUT
21273CSCREW, THROTTLE ADJUST
21273DSPRING, IDLE ADJUSTING
21274SCREW, 1ST THROTTLE ADJUSTING
21275SCREW, ADJUSTING
21301VALVE SUB-ASSY, NEEDLE
21347VALVE, SOLENOID
21386COMPENSATOR
21499ROD, PUSH(FOR CARBURETOR)
21611GASKET, MAIN JET
21612GASKET, POWER VALVE
21618GASKET, NEEDLE VALVE SEAT
21621GASKET, UNION NIPPLE
21641BGASKET, COMPENSATOR
21642AGASKET, FLOAT BOWL
sub21642-11590
21647AGASKET, ADAPTER
sub21647-11590
21652RING, O(FOR SUCTION CHANBER ADJUSTING)
21655RING, O(FOR LIFTER ROD)
21655ARING, O(FOR SLOW JET)
21658RING, O(FOR MAIN GUIDE UPPER)
21677PLUG
21679POSITIONER
21699BOOT(FOR PUMP PLUNGER)
21699BBOOT(FOR COMPENSATOR)
21712BUSH, SLIDING ROD
sub21712-61020
21722SPRING, PUMP DAMPING
21723SPRING, IDLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
21731SPRING, DASH POT OR POSITIONER ADJUSTING
21732SPRING, THROTTLE ADJUSTING
21735SPRING, PUMP ARM
21751UNION, NIPPLE
21756SPRING, BACK(FOR THROTTLE SHAFT)
sub21756-15251
21763PIN, FLOAT LEVER
21765PIN(FOR PUMP PLUNGER)
21769PIN(FOR SUCTION CHANBER ADJUSTING)
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21785APLUG, PLATE(FOR SUCTION CHANBER ADJUSTING)
NO.1
NO.2
21791RING, SNAP, NO.1(FOR CARBURETOR LINK)
sub21791-13011
21811BOLT, UNION NIPPLE
21826SCREW, PUMP ARM SET
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21850SCREW, THROTTLE SWITCH ADJUSTING
21869SPRING(FOR MAIN JET)
sub21756-15251
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
8401
2127611390SCREW, MAIN JET ADJUSTING
main21276-11390
2157627010CLIP, PUMP STRAINER
main21576-27010
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182115060SCREW, 2ND THROTTLE VALVE SET
main21821-15060
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182134380SCREW, 2ND THROTTLE VALVE SET
main21821-34380
2184211390SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-11390
2353744020SCREW(FOR 2ND REGULATOR COVER SET)
main23537-44020
9007911001
main90079-11001
9007913004
main90079-13004
9007914002
main90079-14002
9007961002
main90079-61002
9033903005
main90339-03005
9099992002
main90999-92002
9412040800
main94120-40800
9451100500
main94511-00500
9451100800
main94511-00800
72 parts on this diagram · 1 diagram in section
