ENGINE OVERHAUL GASKET KIT

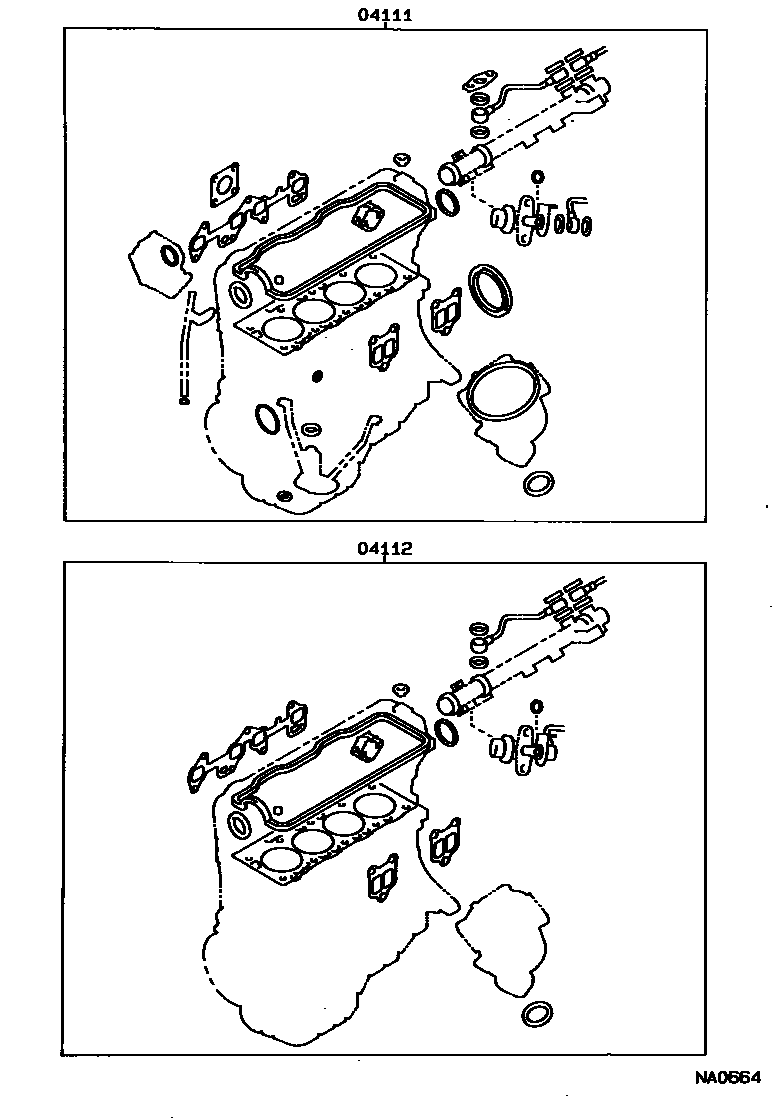

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-11051i198808-199001
sub04111-11052
main04111-11052i199001-199009
sub04111-11053
main04111-11070i198908-199001
sub04111-11071
main04111-11071i199001-199009
sub04111-11072
04112GASKET KIT, ENGINE VALVE GRIND
main04112-11040i198808-199001
sub04112-11041
main04112-11041i199001-199009
sub04112-11042
main04112-11060i198908-199009
sub04112-11061

2 parts on this diagram · 2 diagrams in section
