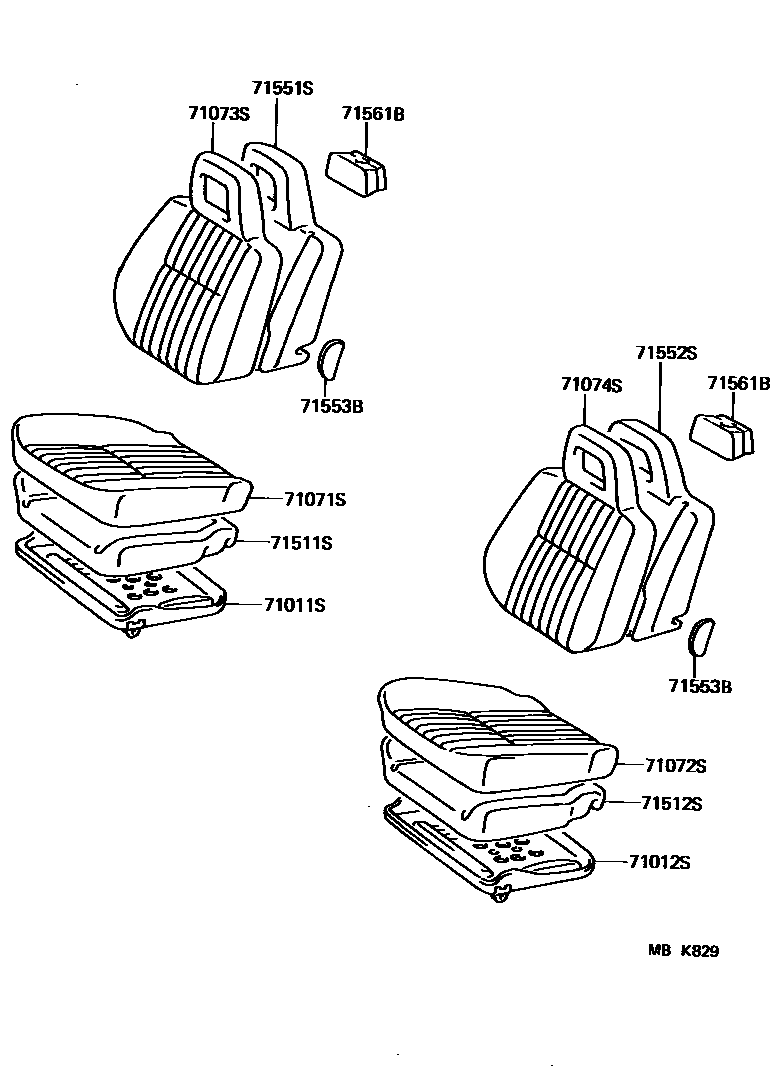

FRONT SEAT & SEAT TRACK

0001 1 0002 1

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71011-12190iEL31198608-198808

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71011-12190iEL31198608-198808

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-16620-03iEL31198608-198708

PF,GRAY,GRAY,TRIM2#

main71071-16620-04iEL31198608-198708

PF,BLUE,BLUE,TRIM8#

main71071-16620-05iEL31198608-198708

PF,BEIGE,BEIGE,TRIM4#

main71071-16621-03iEL31..STD;EL31..B..CND198708-198808

SEMI-FB,GRAY,GRAY,TRIM2#

main71071-16621-04iEL31..STD;EL31..B..CND198708-198808

SEMI-FB,BLUE,BLUE,TRIM8#

main71071-16621-05iEL31..STD;EL31..B..CND198708-198808

SEMI-FB,BEIGE,BEIGE,TRIM4#

main71071-16630-03iEL31198608-198808

FB,GRAY,GRAY,TRIM2#

main71071-16630-04iEL31198608-198808

FB,BLUE,BLUE,TRIM8#

main71071-16630-05iEL31198608-198808

FB,BEIGE,BEIGE,TRIM4#

main71071-16740-03iEL31..3DS..(B,STD)198611-198708

DECONTENT PACKAGE,VL,GRAY,GRAY,TRIM2#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71071-16620-03iEL31198608-198611

PF,GRAY,GRAY,TRIM2#

main71071-16620-04iEL31198608-198611

PF,BLUE,BLUE,TRIM8#

main71071-16620-05iEL31198608-198611

PF,BEIGE,BEIGE,TRIM4#

main71071-16630-03iEL31198608-198808

FB,GRAY,GRAY,TRIM2#

main71071-16630-04iEL31198608-198808

FB,BLUE,BLUE,TRIM8#

main71071-16630-05iEL31198608-198808

FB,BEIGE,BEIGE,TRIM4#

main71072-16260-03iEL31198611-198708

PF,GRAY,GRAY,TRIM2#

main71072-16260-04iEL31198611-198708

PF,BLUE,BLUE,TRIM8#

main71072-16260-05iEL31198611-198708

PF,BEIGE,BEIGE,TRIM4#

main71072-16261-03iEL31..STD;EL31..B..CND198708-198808

SEMI-FB,GRAY,GRAY,TRIM2#

main71072-16261-04iEL31..STD;EL31..B..CND198708-198808

SEMI-FB,BLUE,BLUE,TRIM8#

main71072-16261-05iEL31..STD;EL31..B..CND198708-198808

SEMI-FB,BEIGE,BEIGE,TRIM4#

main71072-16270-03iEL31..B198708-198808

VL,GRAY,GRAY,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-16700-03iEL31198608-198708

PF,GRAY,GRAY,TRIM2#

main71073-16700-04iEL31198608-198708

PF,BLUE,BLUE,TRIM8#

main71073-16700-05iEL31198608-198708

PF,BEIGE,BEIGE,TRIM4#

main71073-16701-03iEL31..STD;EL31..B..CND198708-198808

SEMI-FB,GRAY,GRAY,TRIM2#

main71073-16701-04iEL31..STD;EL31..B..CND198708-198808

SEMI-FB,BLUE,BLUE,TRIM8#

main71073-16701-05iEL31..STD;EL31..B..CND198708-198808

SEMI-FB,BEIGE,BEIGE,TRIM4#

main71073-16710-03iEL31198608-198808

FB,GRAY,GRAY,TRIM2#

main71073-16710-04iEL31198608-198808

FB,BLUE,BLUE,TRIM8#

main71073-16710-05iEL31198608-198808

FB,BEIGE,BEIGE,TRIM4#

main71073-16810-03iEL31..3DS..(B,STD)198611-198708

DECONTENT PACKAGE,VL,GRAY,GRAY,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-16570-03iEL31198608-198708

PF,GRAY,GRAY,TRIM2#

main71074-16570-04iEL31198608-198708

PF,BLUE,BLUE,TRIM8#

main71074-16570-05iEL31198608-198708

PF,BEIGE,BEIGE,TRIM4#

main71074-16571-03iEL31..STD;EL31..B..CND198708-198808

SEMI-FB,GRAY,GRAY,TRIM2#

main71074-16571-04iEL31..STD;EL31..B..CND198708-198808

SEMI-FB,BLUE,BLUE,TRIM8#

main71074-16571-05iEL31..STD;EL31..B..CND198708-198808

SEMI-FB,BEIGE,BEIGE,TRIM4#

main71074-16580-03iEL31198608-198808

FB,GRAY,GRAY,TRIM2#

main71074-16580-04iEL31198608-198808

FB,BLUE,BLUE,TRIM8#

main71074-16580-05iEL31198608-198808

FB,BEIGE,BEIGE,TRIM4#

main71074-16610-03iEL31..B198708-198808

VL,GRAY,GRAY,TRIM2#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-16060iEL31198608-198808

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-16060iEL31198608-198808

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-16010iEL31198608-198808

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71505-16010iEL31198608-198808

71553BPAD, FRONT SEATBACK, B

main71563-16040×4iEL31198701-198808

main71564-16030×2iEL31198608-198701

LH

71561BPAD, FRONT SEATBACK, UPPER

main71561-16030iEL31..3DS..STD198611-198808

DECONTENT PACKAGE

12 parts on this diagram · 2 diagrams in section
