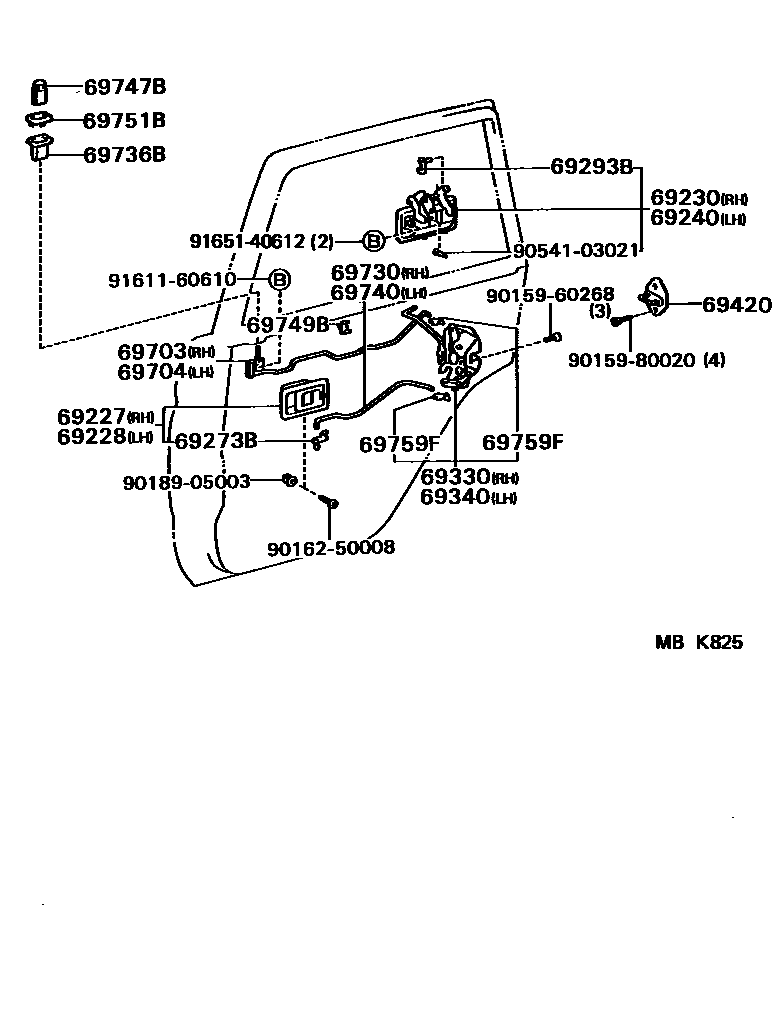

REAR DOOR LOCK & HANDLE
69227HANDLE, REAR DOOR INSIDE, RH
69228HANDLE, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)
RH
LH
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
LH
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
69730LINK ASSY, REAR DOOR OPEN CONTROL, RH
69736BGUIDE, REAR DOOR LOCK LINK
69740LINK ASSY, REAR DOOR OPEN CONTROL, LH
69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)
69749BCLAMP, REAR DOOR LOCK LINK
69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)
69759FSNAP, REAR DOOR LOCK CONTROL LINK
LH
RH
9015960268
main90159-60268
9015980020
main90159-80020
9016250008
main90162-50008
9018905003
main90189-05003
9054103021
main90541-03021
9161160610
main91611-60610
9165140612
main91651-40612
25 parts on this diagram · 1 diagram in section
