E
EPC Data

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

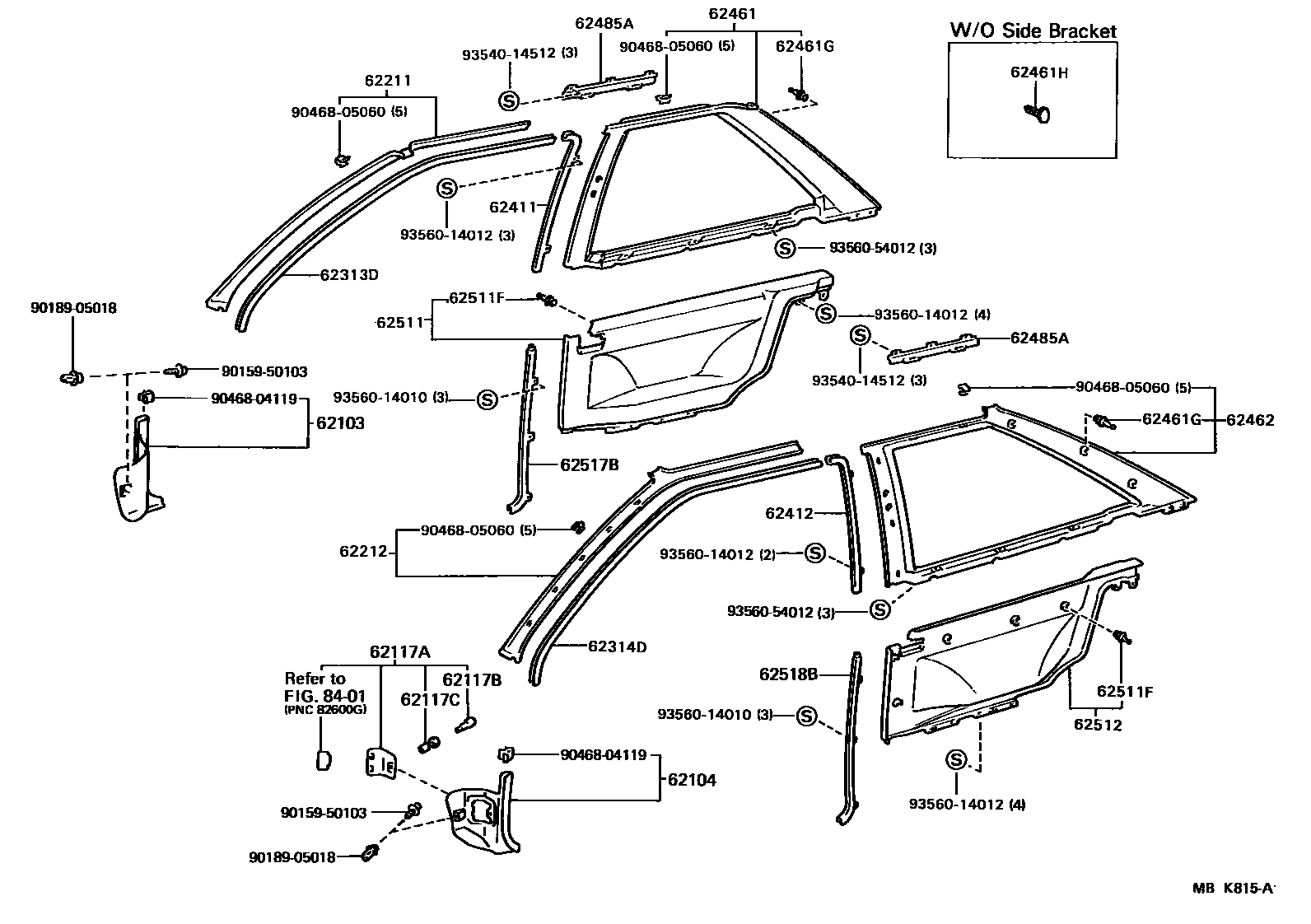

Parts diagram
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62111-16060-01i198608-198808
BLACK,BLACK,TRIM2#
main62111-16060-04i198608-198808
BLUE,BLUE,TRIM8#
main62111-16060-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62112-16060-01i198608-198808
BLACK,BLACK,TRIM2#
main62112-16060-04i198608-198808
BLUE,BLUE,TRIM8#
main62112-16060-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
main55545-16110-01i198608-198808
BLACK,BLACK,TRIM2#
sub55545-16110
main55545-16110-04i198608-198808
BLUE,BLUE,TRIM8#
sub55545-16110
main55545-16110-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub55545-16110
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
main90467-05015-11i198608-198808
BLACK,BLACK,TRIM2#
sub90467-05015
main90467-05015-15i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub90467-05015
main90467-05015-24i198608-198808
BLUE,BLUE,TRIM8#
sub90467-05015
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
main90467-08031-11i198608-198808
BLACK,BLACK,TRIM2#
sub90467-08031
main90467-08031-15i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub90467-08031
main90467-08031-24i198608-198808
BLUE,BLUE,TRIM8#
sub90467-08031
62211GARNISH, FRONT PILLAR, RH
main62211-16030-01i198608-198808
BLACK,BLACK,TRIM2#
main62211-16030-04i198608-198808
BLUE,BLUE,TRIM8#
main62211-16030-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main62211-16040-01i198608-198808
BLACK,BLACK,TRIM2#
main62211-16040-04i198608-198808
BLUE,BLUE,TRIM8#
main62211-16040-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main62211-16050-01i198701-198808
BLACK,BLACK,TRIM2#
main62211-16050-04i198701-198808
BLUE,BLUE,TRIM8#
main62211-16050-05i198701-198808
BEIGE,DARK BEIGE,TRIM4#
62212GARNISH, FRONT PILLAR, LH
main62212-16030-01i198608-198808
BLACK,BLACK,TRIM2#
sub62212-16030
main62212-16030-04i198608-198808
BLUE,BLUE,TRIM8#
sub62212-16030
main62212-16030-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub62212-16030
main62212-16040-01i198608-198808
BLACK,BLACK,TRIM2#
main62212-16040-04i198608-198808
BLUE,BLUE,TRIM8#
main62212-16040-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main62212-16050-01i198701-198808
BLACK,BLACK,TRIM2#
main62212-16050-04i198701-198808
BLUE,BLUE,TRIM8#
main62212-16050-05i198701-198808
BEIGE,DARK BEIGE,TRIM4#
62313DTRIM, FRONT DOOR OPENING, RH
main62313-16060-01i198608-198808
BLACK,BLACK,TRIM2#
main62313-16060-04i198608-198808
BLUE,BLUE,TRIM8#
main62313-16060-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main62313-16070-01i198608-198808
BLACK,BLACK,TRIM2#
sub62313-16060
main62313-16070-04i198608-198808
BLUE,BLUE,TRIM8#
sub62313-16060
main62313-16070-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub62313-16060
62314DTRIM, FRONT DOOR OPENING, LH
main62313-16060-01i198608-198808
BLACK,BLACK,TRIM2#
main62313-16060-04i198608-198808
BLUE,BLUE,TRIM8#
main62313-16060-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main62313-16070-01i198608-198808
BLACK,BLACK,TRIM2#
sub62313-16060
main62313-16070-04i198608-198808
BLUE,BLUE,TRIM8#
sub62313-16060
main62313-16070-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub62313-16060
62411GARNISH, CENTER PILLAR, RH
main62411-16060-01i198608-198808
BLACK,BLACK,TRIM2#
sub62411-16060
main62411-16060-04i198608-198808
BLUE,BLUE,TRIM8#
sub62411-16060
main62411-16060-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub62411-16060
main62411-16130-01i198701-198808
BLACK,BLACK,TRIM2#
sub62411-16130
main62411-16130-04i198701-198808
BLUE,BLUE,TRIM8#
sub62411-16130
main62411-16130-05i198701-198808
BEIGE,DARK BEIGE,TRIM4#
sub62411-16130
62412GARNISH, CENTER PILLAR, LH
main62412-16060-01i198608-198808
BLACK,BLACK,TRIM2#
sub62412-16060
main62412-16060-04i198608-198808
BLUE,BLUE,TRIM8#
sub62412-16060
main62412-16060-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub62412-16060
main62412-16130-01i198701-198808
BLACK,BLACK,TRIM2#
sub62412-16130
main62412-16130-04i198701-198808
BLUE,BLUE,TRIM8#
sub62412-16130
main62412-16130-05i198701-198808
BEIGE,DARK BEIGE,TRIM4#
sub62412-16130
62461GARNISH, ROOF SIDE TRIM, RH
main62471-16150-01i198608-198808
BLACK,BLACK,TRIM2#
main62471-16150-04i198608-198808
BLUE,BLUE,TRIM8#
main62471-16150-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main62471-16160-01i198608-198808
BLACK,BLACK,TRIM2#
main62471-16160-04i198608-198808
BLUE,BLUE,TRIM8#
main62471-16160-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main62471-16170-01i198701-198808
BLACK,BLACK,TRIM2#
main62471-16170-04i198701-198808
BLUE,BLUE,TRIM8#
main62471-16170-05i198701-198808
BEIGE,DARK BEIGE,TRIM4#
62461GRETAINER, DOOR TRIM
main67771-14040i198608-198808
main67771-23010i198701-198808
62461HCLIP (FOR ROOF SIDE INNER GARNISH)
main90467-05016-01i198608-198808
BLACK,NEW BLACK,TRIM2#
sub90467-05016
main90467-05016-15i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub90467-05016
main90467-05016-24i198608-198808
BLUE,BLUE,TRIM8#
sub90467-05016
62462GARNISH, ROOF SIDE TRIM, LH
main62472-16150-01i198608-198808
BLACK,BLACK,TRIM2#
main62472-16150-04i198608-198808
BLUE,BLUE,TRIM8#
main62472-16150-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main62472-16160-01i198608-198808
BLACK,BLACK,TRIM2#
main62472-16160-04i198608-198808
BLUE,BLUE,TRIM8#
main62472-16160-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
main62472-16170-01i198701-198808
BLACK,BLACK,TRIM2#
main62472-16170-04i198701-198808
BLUE,BLUE,TRIM8#
main62472-16170-05i198701-198808
BEIGE,DARK BEIGE,TRIM4#
62485ARETAINER, ROOF SIDE INNER GARNISH
main62485-16010i198608-198808
main62485-16020i198608-198808
62511BOARD, QUARTER INSIDE TRIM, RH
main62510-16420-01i198608-198808
VL,BLACK,BLACK,TRIM2#
main62510-16420-04i198608-198808
VL,BLUE,BLUE,TRIM8#
main62510-16420-05i198608-198808
VL,BEIGE,DARK BEIGE,TRIM4#
main62510-16470-03i198608-198808
FB,GRAY,GRAY,TRIM2#
main62510-16470-04i198608-198808
FB,BLUE,BLUE,TRIM8#
main62510-16470-05i198608-198808
FB,BEIGE,BEIGE,TRIM4#
main62510-16490-01i198701-198808
FB,BLACK,BLACK,TRIM2#
main62510-16490-04i198701-198808
FB,BLUE,BLUE,TRIM8#
main62510-16490-05i198701-198808
FB,BEIGE,DARK BEIGE,TRIM4#
main62510-16500-01i198701-198808
VL,BLACK,BLACK,TRIM2#
main62510-16500-04i198701-198808
VL,BLUE,BLUE,TRIM8#
main62510-16500-05i198701-198808
VL,BEIGE,DARK BEIGE,TRIM4#
62511FRETAINER (FOR QUARTER INSIDE TRIM BOARD)
main67771-32010i198608-198808
sub67771-14040
62512BOARD, QUARTER INSIDE TRIM, LH
main62520-16390-01i198608-198808
VL,BLACK,BLACK,TRIM2#
main62520-16390-04i198608-198808
VL,BLUE,BLUE,TRIM8#
main62520-16390-05i198608-198808
VL,BEIGE,DARK BEIGE,TRIM4#
main62520-16440-03i198608-198808
FB,GRAY,GRAY,TRIM2#
main62520-16440-04i198608-198808
FB,BLUE,BLUE,TRIM8#
main62520-16440-05i198608-198808
FB,BEIGE,BEIGE,TRIM4#
main62520-16450-01i198701-198808
FB,BLACK,BLACK,TRIM2#
main62520-16450-04i198701-198808
FB,BLUE,BLUE,TRIM8#
main62520-16450-05i198701-198808
FB,BEIGE,DARK BEIGE,TRIM4#
main62520-16460-01i198701-198808
VL,BLACK,BLACK,TRIM2#
main62520-16460-04i198701-198808
VL,BLUE,BLUE,TRIM8#
main62520-16460-05i198701-198808
VL,BEIGE,DARK BEIGE,TRIM4#
62517BBASE, QUARTER TRIM, FRONT RH
main62517-16020-01i198608-198808
BLACK,BLACK,TRIM2#
sub62517-16020
main62517-16020-04i198608-198808
BLUE,BLUE,TRIM8#
sub62517-16020
main62517-16020-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
sub62517-16020
62518BBASE, QUARTER TRIM, FRONT LH
main62518-16020-01i198608-198808
BLACK,BLACK,TRIM2#
main62518-16020-04i198608-198808
BLUE,BLUE,TRIM8#
main62518-16020-05i198608-198808
BEIGE,DARK BEIGE,TRIM4#
8401
9015950103
main90159-50103
9018905018
main90189-05018
9046804119
main90468-04119
9046805060
main90468-05060
9354014512
main93540-14512
9356014010
main93560-14010
9356014012
main93560-14012
9356054012
main93560-54012

30 parts on this diagram · 3 diagrams in section
