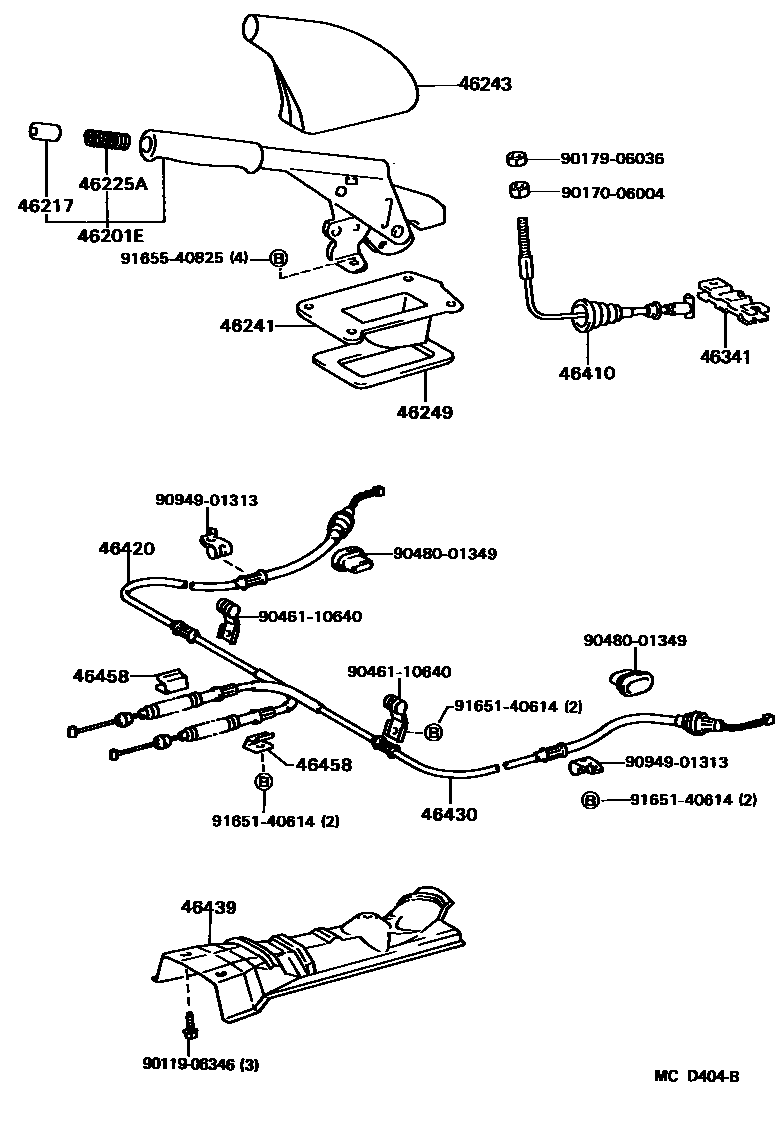

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-10070-05iEL31198608-198611

BEIGE,DARK BEIGE,TRIM4#

sub46201-10071

sub46201-10070

main46201-10070-11iEL31198608-198611

BLACK,NEW BLACK,TRIM2#

sub46201-10071

sub46201-10070

main46201-10070-14iEL31198608-198611

BLUE,BLUE,TRIM8#

sub46201-10071

sub46201-10070

main46201-10071-04iEL31..TER198611-198801

BLUE,BLUE,TRIM8#

sub46201-10072

main46201-10071-05iEL31..TER198611-198801

BEIGE,DARK BEIGE,TRIM4#

sub46201-10072

main46201-10071-11iEL31198611-198801

BLACK,NEW BLACK,TRIM2#

sub46201-10072

main46201-10072-05iEL31..TER198801-198808

BEIGE,DARK BEIGE,TRIM4#

sub46201-10072

main46201-10072-11iEL31198801-198808

BLACK,NEW BLACK,TRIM2#

sub46201-10072

main46201-10072-14iEL31..TER198801-198808

BLUE,BLUE,TRIM8#

sub46201-10072

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-11iEL31198608-198801

BLACK,NEW BLACK,TRIM2#

sub46217-10020

sub46217-20020

main46217-10020-44iEL31..TER198608-198801

BLUE,BLUE,TRIM8#

sub46217-10020

sub46217-20020

main46217-10020-55iEL31..TER198608-198801

BEIGE,DARK BEIGE,TRIM4#

sub46217-10020

sub46217-20020

main46217-12020-04iEL31..TER198801-198808

BLUE,DEEP BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-12020-05iEL31..TER198801-198808

BEIGE,BEIGE,TRIM4#

sub46217-12020

sub46217-16030

main46217-12020-11iEL31198801-198808

BLACK,BLACK,TRIM2#

sub46217-12020

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10745iEL31198608-198808

46241BOOT, PARKING BRAKE LEVER

main46241-20050iEL31198608-198808

46243COVER, PARKING BRAKE LEVER

main46243-10030-01iEL31..3DS..(B,STD)198703-198705

DECONTENT PACKAGE,BLACK,BLACK,TRIM2#

sub46243-10030

main46243-16020-01iEL31..3DS..(B,STD)198611-198703

BLACK

main46243-16020-01iEL31..3DS..(B,STD)198705-198808

DECONTENT PACKAGE,BLACK,BLACK,TRIM2#

46249SHIELD, PARKING BRAKE HOLE

main46249-20020iEL31198608-198808

46341EQUALIZER, PARKING BRAKE

main46341-16020iEL31198608-198808

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-10050iEL31198608-198808

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-16090iEL31198608-198808

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-16090iEL31198608-198808

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-16010iEL31198608-198808

46458RETAINER, CABLE

main46458-20020iEL31198608-198808

sub46458-50010

9011906346

main90119-06346

9017006004

main90170-06004

9017906036

main90179-06036

9046110640

main90461-10640

9048001349

main90480-01349

9094901313

main90949-01313

9165140614

main91651-40614

9165540825

main91655-40825

20 parts on this diagram · 1 diagram in section
