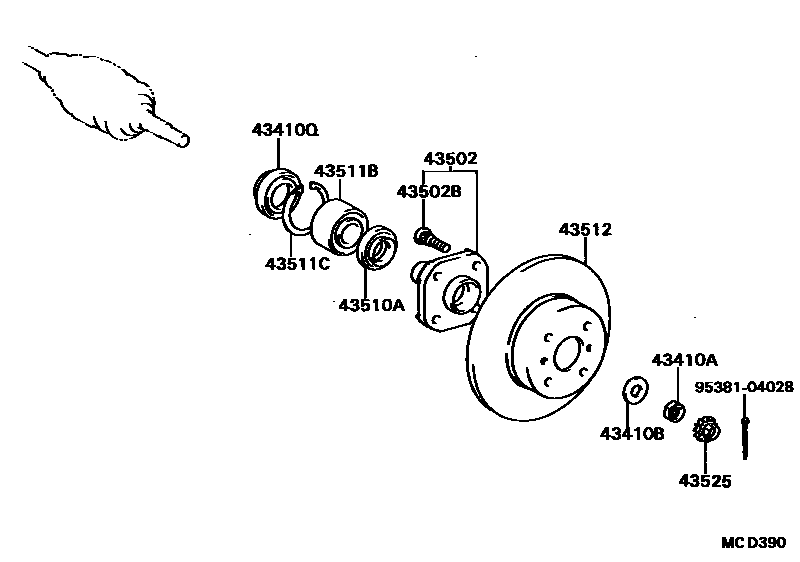

FRONT AXLE HUB

43410ANUT (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90170-19001iEL31198608-198808

43410BWASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90201-20012iEL31198608-198808

43410QSEAL, OIL (FOR FRONT DRIVE SHAFT)

main90311-56006iEL31198608-198808

43502HUB SUB-ASSY, FRONT AXLE

main43502-16030iEL31198608-198808

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iEL31198608-198808

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-54003iEL31198608-198808

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38006iEL31198608-198808

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-77001iEL31198608-198808

OD=77

43512DISC, FRONT

main43512-16031iEL31198608-198808

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iEL31198608-198808

9538104028

main95381-04028

11 parts on this diagram · 1 diagram in section
